HP 10400A OPERATING NOTE

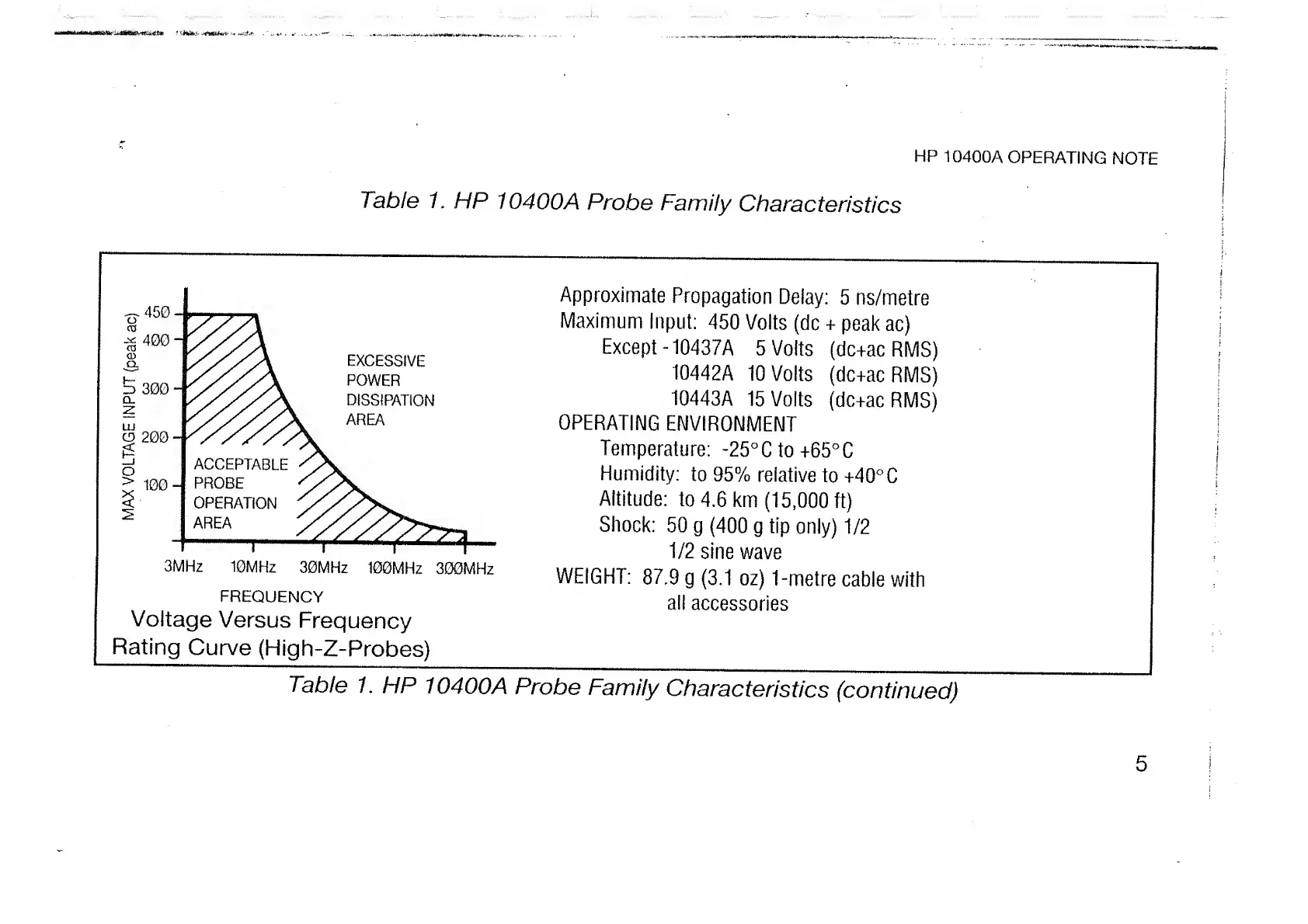

Table 1. HP 10400A Probe Family Characteristics
FREQUENCY
Voltage Versus Frequency
Rating Curve (High-Z-Probes)
Approximate Propagation Delay; 5 ns/metre
Maximum Input; 450 Volts (dc + peak ac)
Except-10437A 5 Volts (dc+ac RMS)
10442A 10 Volts (dc+ac RMS)
10443A 15 Volts (dc+ac RMS)
OPERATING ENVIRONMENT
Temperature; -25°Cto+65°C
Humidity; to 95% relative to +40°C
Altitude; to 4.6 km (15,000 ft)
Shock; 50 g (400 g tip only) 1/2
1/2 sine wave
WEIGHT; 87.9 g (3.1 oz) 1-metre cable with
all accessories
Table 1. HP 10400A Probe Family Characteristics (continued)
5
