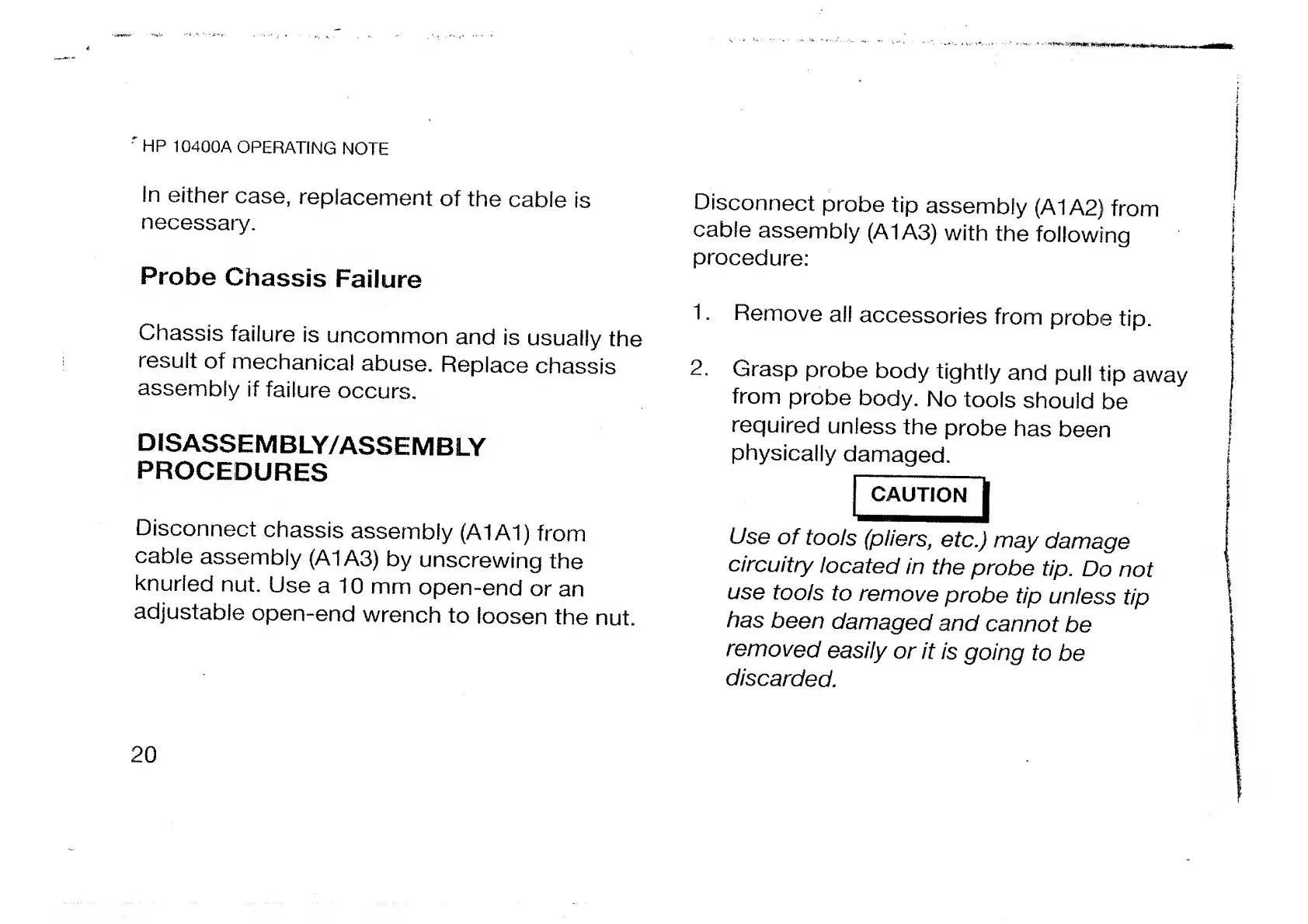

' HP 10400A OPERATING NOTE
In either case, replacement of the cable is
necessary.
Probe Chassis Failure
Chassis failure is uncommon and is usually the
result of mechanical abuse. Replace chassis
assembly if failure occurs.
DISASSEMBLY/ASSEMBLY
PROCEDURES
Disconnect chassis assembly (A1A1) from
cable assembly (A1A3) by unscrewing the
knurled nut. Use a 10 mm open-end or an
adjustable open-end wrench to loosen the nut.
Disconnect probe tip assembly (A1A2) from
cable assembly (A1 A3) with the following
procedure:
1. Remove all accessories from probe tip.
2. Grasp probe body tightly and pull tip away
from probe body. No tools should be
required unless the probe has been
physically damaged.
CAUTION ]|
Use of tools (pliers, etc.) may damage
circuitry located in the probe tip. Do not
use tools to remove probe tip unless tip
has been damaged and cannot be
removed easily or it is going to be
discarded.
20
