HP 10400A OPERATING NOTE

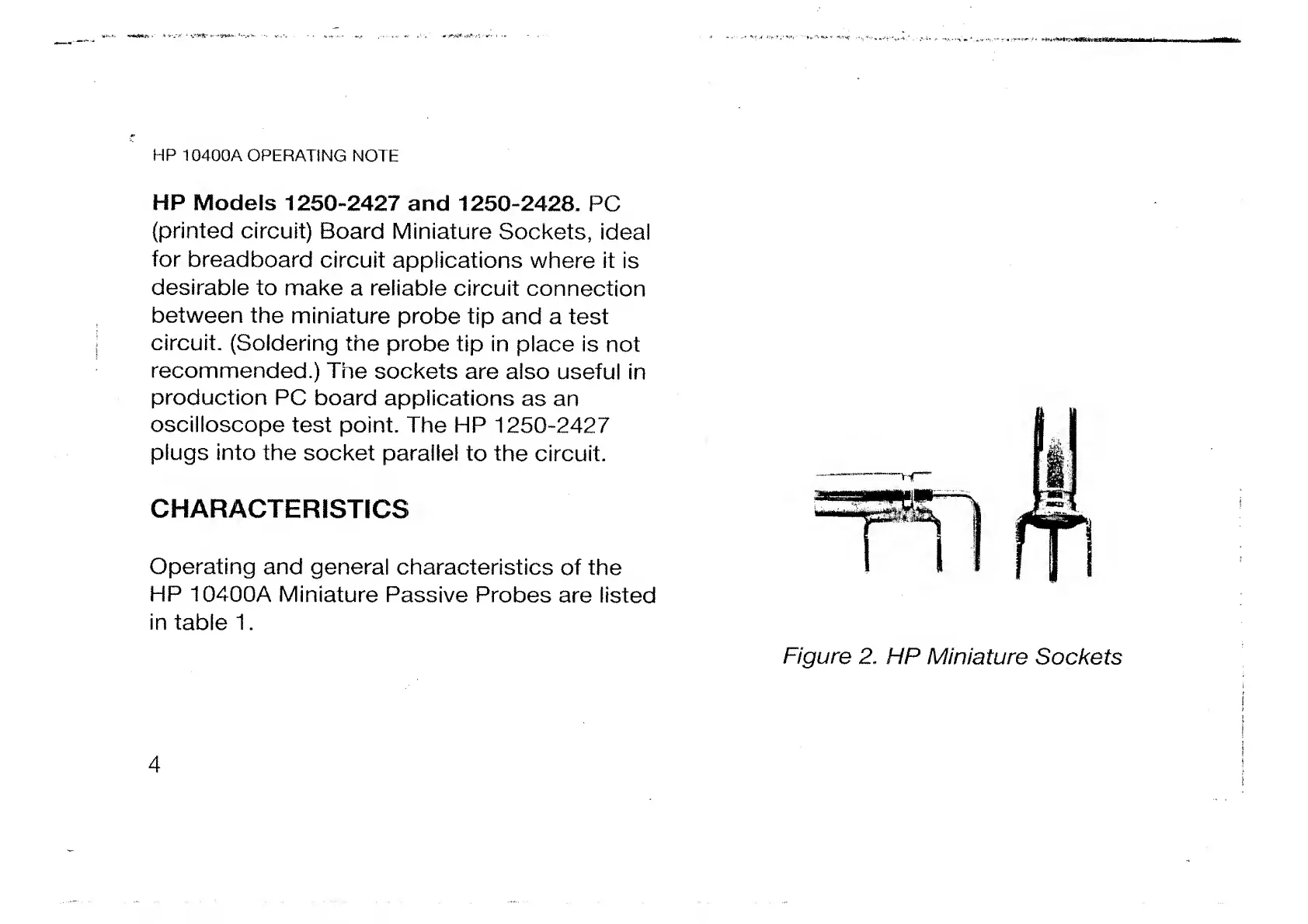

HP Models 1250-2427 and 1250-2428. PC
(printed circuit) Board Miniature Sockets, ideal
for breadboard circuit applications where it is
desirable to make a reliable circuit connection
between the miniature probe tip and a test
circuit. (Soldering the probe tip in place is not
recommended.) The sockets are also useful in
production PC board applications as an
oscilloscope test point. The HP 1250-2427
plugs into the socket parallel to the circuit.
CHARACTERISTICS
Operating and general characteristics of the
HP 10400A Miniature Passive Probes are listed
in table 1.
4
