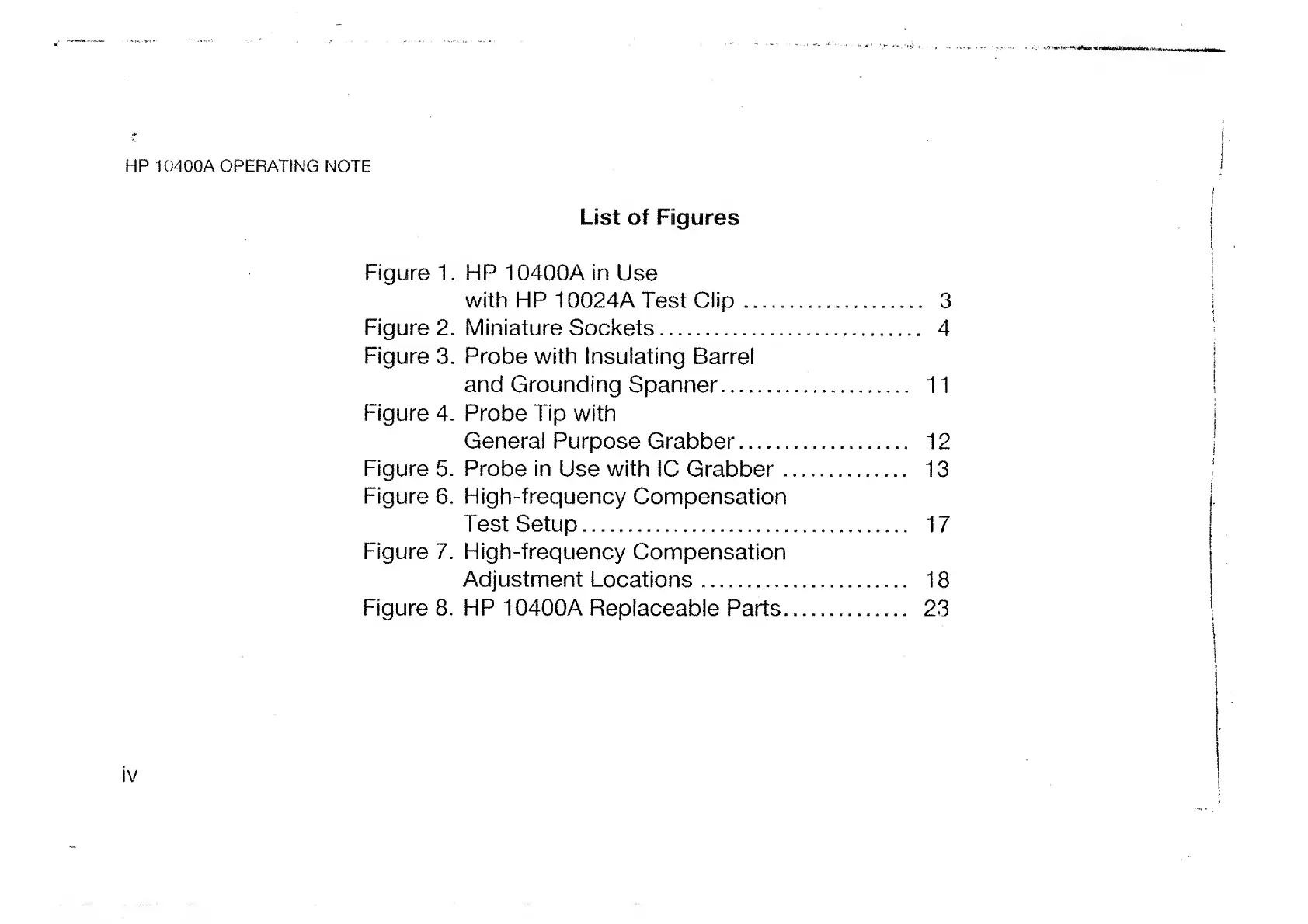

HP 1()400A OPERATING NOTE
List of Figures
Figure 1. HP 10400A in Use
with HP 10024ATest Clip ..
Figure 2. Miniature Sockets..
Figure 3. Probe with Insulating Barrel
and Grounding Spanner. 11
Figure 4. Probe Tip with
General Purpose Grabber. 12
Figure 5. Probe in Use with 1C Grabber.. 13
Figure 6. High-frequency Compensation
Test Setup.. 17
Figure 7. High-frequency Compensation
Adjustment Locations. 18
Figure 8. HP 10400A Replaceable Parts..... 23
