Sect. V Page 7

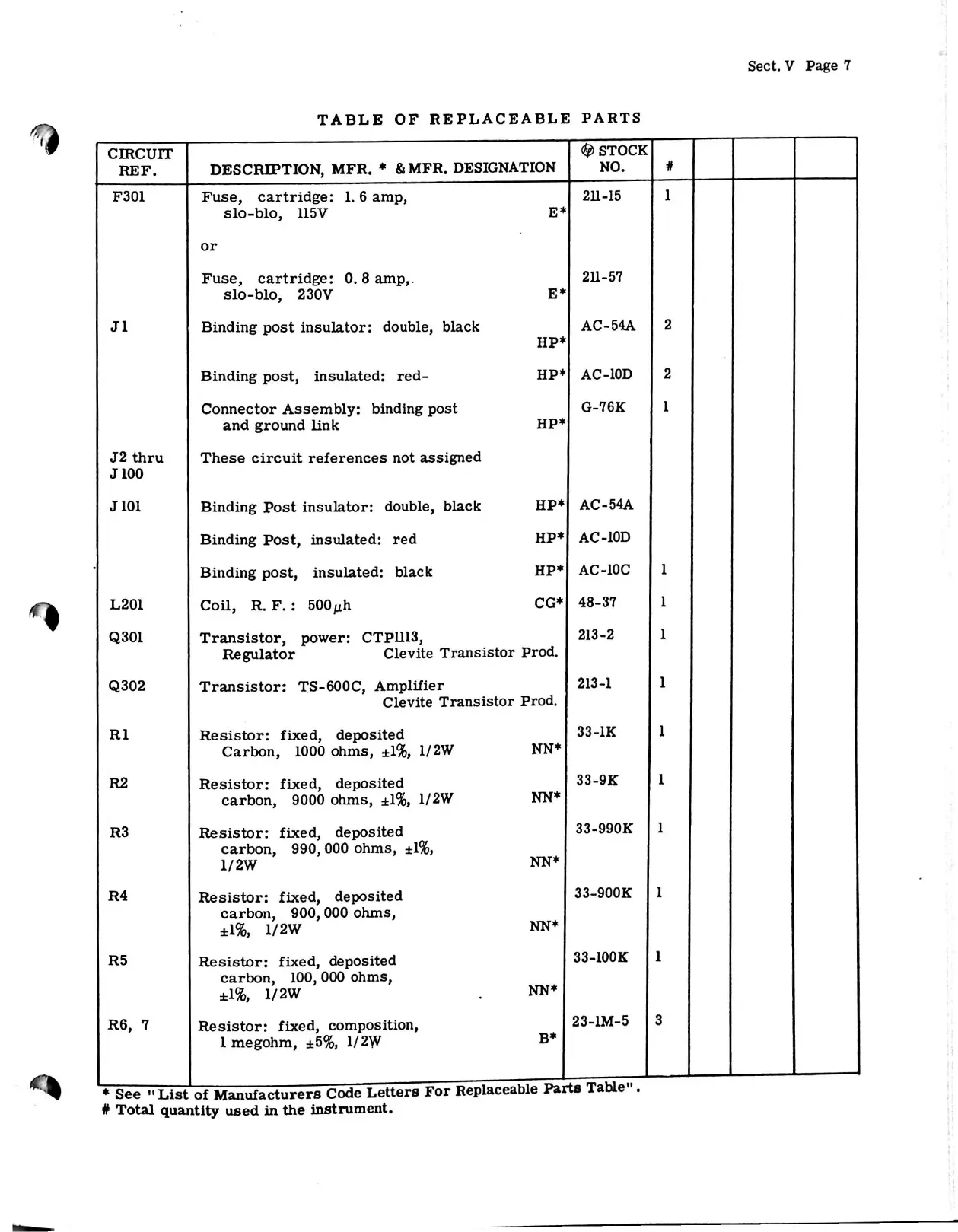

TABLE OF REPLACEABLE PARTS
♦ See ’ ’ List of Manufacturers Code Letters For Replaceable Parts Table ” .
# Total quantity used in the instrument.
CIRCUIT
REF.
DESCRIPTION, MFR. ♦ & MFR. DESIGNATION
STOCK
NO.
#
F301
Fuse, cartridge: 1. 6 amp,
slo-blo, 115V
E *
211-15 1
or
Fuse, cartridge: 0.8 amp,.
slo-blo, 230V
E *
211-57
JI Binding post insulator: double, black
HP *
AC-54A
2
Binding post, insulated: red-
HP *
AC-10D 2
Connector Assembly: binding post
and ground link
HP *
G-76K 1
J2 thru
J 100
These circuit references not assigned
J 101
Binding Post insulator: double, black
HP *
AC-54A
Binding Post, insulated: red
HP *
AC-10D
Binding post, insulated: black
HP *
AC-10C
1
L201
Coil, R. F. : 500 gh
CG *
48-37 1
Q301
Transistor, power: CTP1113,
Regulator Clevite Transistor Prod.
213-2 1
Q302
Transistor: TS-600C, Amplifier
Clevite Transistor Prod.
213-1
1
R1
Resistor: fixed, deposited
Carbon, 1000 ohms, ±1%, 1/2W
NN *
33-1K
1
R2
Resistor: fixed, deposited
carbon, 9000 ohms, ±1%, 1/2W
NN *
33-9K
1
R3 Resistor: fixed, deposited
carbon, 990, 000 ohms, ±1%,
1/2W
NN *
33-990K
1
R4
Resistor: fixed, deposited
carbon, 900, 000 ohms,
±1%, 1/2W
NN *
33-900K
1
R5
Resistor: fixed, deposited
carbon, 100, 000 ohms,
±1%, 1/2W
NN *
33-100K
1
R6, 7
Resistor: fixed, composition,
1 megohm, ±5%, 1/2W
B *
23-1M-5
m <» Kl « 11
3
