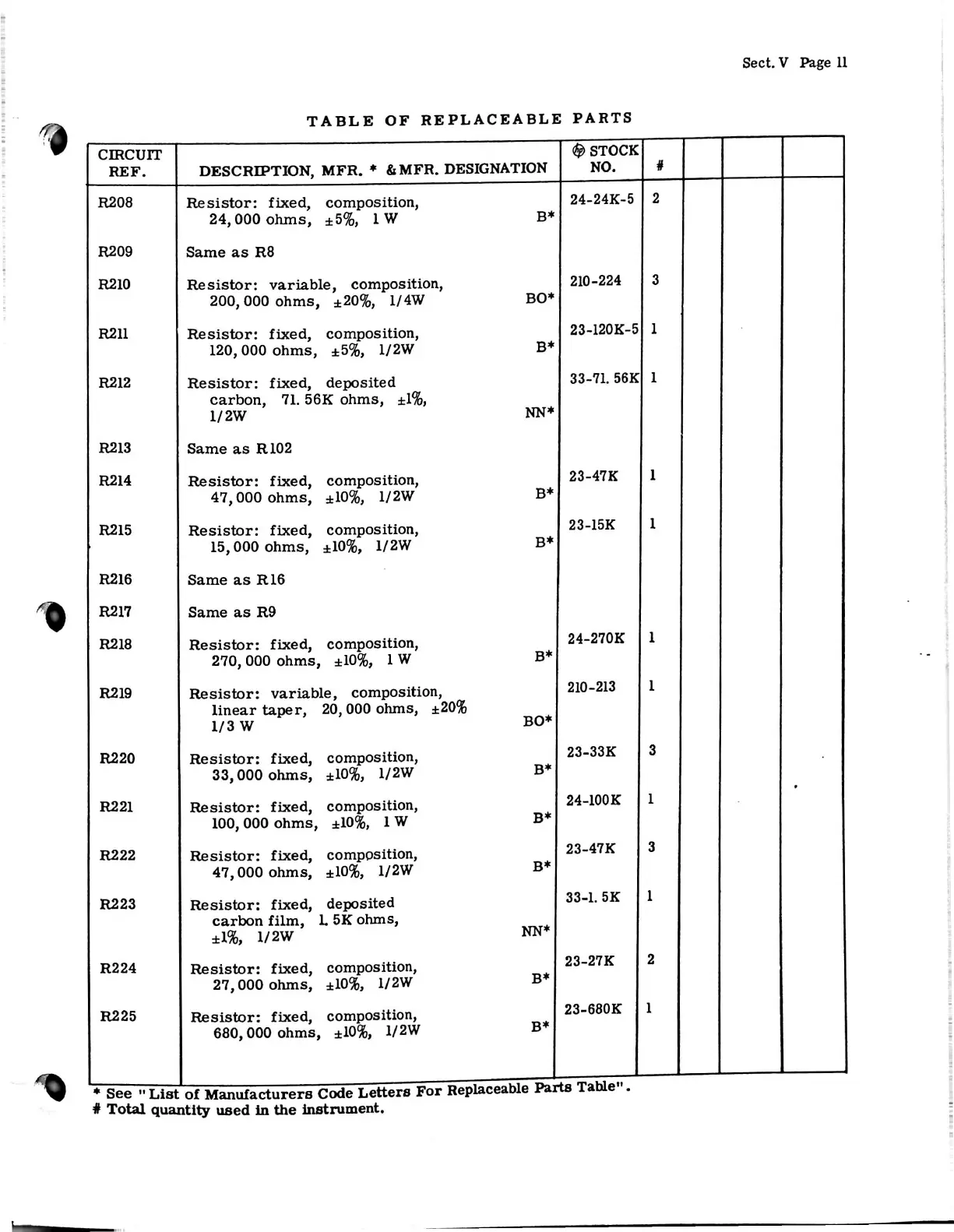

TABLE OF REPLACEABLE PARTS
CIRCUIT
REF.
DESCRIPTION, MFR. ♦ & MFR. DESIGNATION
ty STOCK
NO.
#
R208
Resistor: fixed, composition,
24,000 ohms, ±5%, 1W
B *
24-24K-5
2
R209
Same as R8
R210 Resistor: variable, composition,
200,000 ohms, ±20%, 1/4W
BO *
210-224
3
R211 Resistor: fixed, composition,
120,000 ohms, ±5%, 1/2W
B *
23-120K-5 1
R212 Resistor: fixed, deposited
carbon, 71. 56K ohms, ±1%,
1/2W
NN *
33-71. 56K
1
R213
Same as R102
R214
Resistor: fixed, composition,
47,000 ohms, ±10%, 1/2W
B *
23-47K
1
R215
Resistor: fixed, composition,
15,000 ohms, ±10%, 1/2W
B *
23-15K
1
R216
Same as R16
R217
Same as R9
R218
Resistor: fixed, composition,
270, 000 ohms, ±10%, 1 W
B *
24-270K
1
R219
Resistor: variable, composition,
linear taper, 20, 000 ohms, ±20%
1/3 W
BO *
210-213
1
R220
Resistor: fixed, composition,
33,000 ohms, ±10%, 1/2W
B *
23-33K
3
R221
Resistor: fixed, composition,
100, 000 ohms, ±10%, 1 W
B *
24-100K
1
R222
Resistor: fixed, composition,
47,000 ohms, ±10%, 1/2W
B *
23-47K
3
R223 Resistor: fixed, deposited
carbon film, L 5K ohms,
±1%, 1/2W
NN *
33-1. 5K
1
R224
Resistor: fixed, composition,
27,000 ohms, ±10%, 1/2W
B *
23-27K
2
R225
Resistor: fixed, composition,
680,000 ohms, ±10%, 1/2W
B *
23-680K
1
♦ See ’ ’ List
of Manufacturers Code Letters For Replaceable Parts Table .
