General Information
Model
1332A

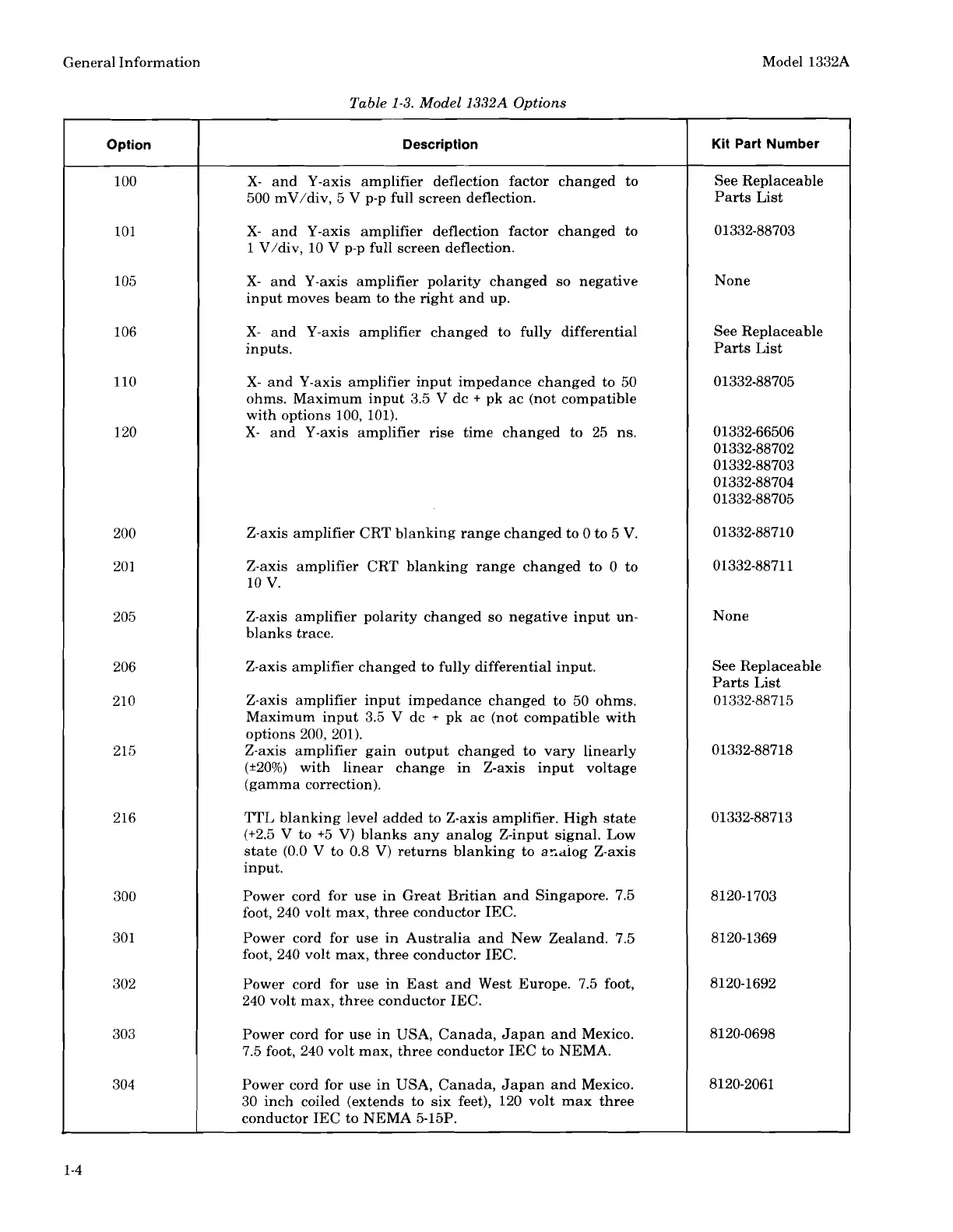

Table
1-3.
Model
1332A
Options
Kit Part Number
See Replaceable
Parts List
01332-88703
None
See Replaceable
Parts List
01332-88705
01332-66506
01332-88702
01332-88703
01332-88704
01332-88705
01332-88710
01332-8871
1
None
See Replaceable
Parts List
01332-88715
01332-88718
01332-88713
8120-1703
8120-1369
8120-1692
8120-0698
8120-2061
Option
100
101
105
106
110
120
200
201
205
206
210
215
216
300
301
302
303
304
Description
X-
and Y-axis amplifier deflection factor changed to
500
mV/div, 5 V p-p full screen deflection.
X-
and Y-axis amplifier deflection factor changed to
1
V/div, 10 V p-p full screen deflection.
X-
and Y-axis amplifier polarity changed so negative
input moves beam to the right and up.
X-
and Y-axis amplifier changed to fully differential
inputs.
X-
and Y-axis amplifier input impedance changed to 50
ohms. Maximum input 3.5 V dc
+
pk ac (not compatible
with options 100, 101).
X-
and Y-axis amplifier rise time changed to 25 ns.
Z-axis amplifier CRT blanking range changed to
0 to 5 V.
Z-axis amplifier CRT blanking range changed to
0 to
10 v.
Z-axis amplifier polarity changed so negative input
un-
blanks trace.
Z-axis amplifier changed to fully differential input.
Z-axis amplifier input impedance changed to 50 ohms.
Maximum input 3.5 V dc
+
pk ac (not compatible with
options 200, 201).
Z-axis amplifier gain output changed to vary linearly
(*20%) with linear change in Z-axis input voltage
(gamma correction).
TTL
blanking level added to Z-axis amplifier. High state
(+2.5 V to +5 V) blanks any analog Z-input signal. Low
state (0.0
V
to 0.8 V) returns blanking to araiog Z-axis
input.
Power cord for use in Great Britian and Singapore. 7.5
foot, 240 volt max, three conductor IEC.
Power cord for use in Australia and New
Zealand. 7.5
foot, 240 volt max, three conductor IEC.
Power cord for use in East and West Europe. 7.5 foot,
240 volt max, three conductor IEC.
Power cord for use in USA, Canada, Japan and Mexico.
7.5 foot, 240 volt max, three conductor IEC to NEMA.
Power cord for use in USA, Canada, Japan and Mexico.
30 inch coiled (extends to six feet), 120 volt max three
conductor IEC to NEMA 5-15P.
