HP 1332A User Manual

Model 1332A
General Information

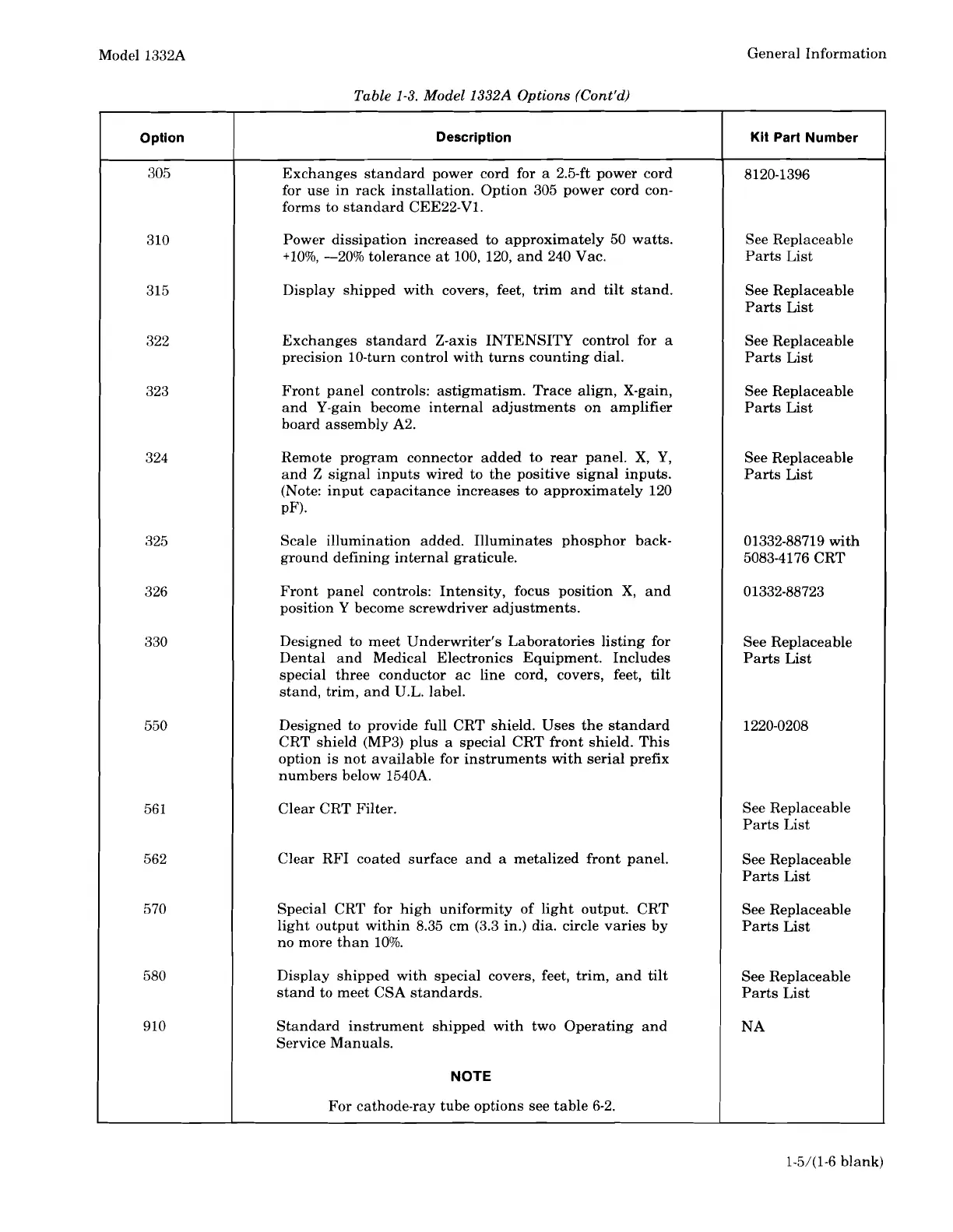

Table 1-3. Model 1332A Options (Cont'd)
1-5/(1-6 blank)
Kit Part Number
8120-1396
See Replaceable
Parts List
See Replaceable
Parts List
See Replaceable
Parts List
See Replaceable
Parts List
See Replaceable
Parts List
01332-88719 with
5083-4176 CRT
01332-88723
See Replaceable
Parts List
1220-0208
See Replaceable
Parts List
See Replaceable
Parts List
See Replaceable
Parts List
See Replaceable
Parts List
NA
Option
305
310
315
322
323
324
325
326
330
550
56 1
562
570
580
910
Description
Exchanges standard power cord for a 2.5-ft power cord
for use in rack installation. Option 305 power cord con-
forms to standard
CEE22-V1.
Power dissipation increased to approximately 50 watts.
+lo%, -20% tolerance at 100, 120, and 240 Vac.
Display shipped with covers, feet, trim and tilt stand.
Exchanges standard Z-axis INTENSITY control for a
precision 10-turn control with turns counting dial.
Front panel controls: astigmatism. Trace align, X-gain,
and Y-gain become internal adjustments on amplifier
board assembly A2.
Remote program connector added to rear panel. X,
Y,
and Z signal inputs wired to the positive signal inputs.
(Note: input capacitance increases to approximately 120
PF).
Scale illumination added. Illuminates phosphor back-
ground defining internal graticule.
Front panel controls: Intensity, focus position X, and
position
Y become screwdriver adjustments.
Designed to meet Underwriter's Laboratories listing for
Dental and Medical Electronics Equipment. Includes
special three conductor ac line cord, covers, feet, tilt
stand, trim, and U.L. label.
Designed to provide full CRT shield. Uses the standard
CRT shield
(MP3) plus a special CRT front shield. This
option is not available for instruments with serial prefix
numbers below
1540A.
Clear CRT Filter.
Clear RFI coated surface and a metalized front panel.
Special CRT for high uniformity of light output. CRT
light output within 8.35 cm (3.3 in.) dia. circle varies by
no more than 10%.
Display shipped with special covers, feet, trim, and tilt
stand to meet CSA standards.
Standard instrument shipped with two Operating and
Service Manuals.
NOTE
For cathode-ray tube options see table 6-2.
