HP 14-an0XX - Page 39

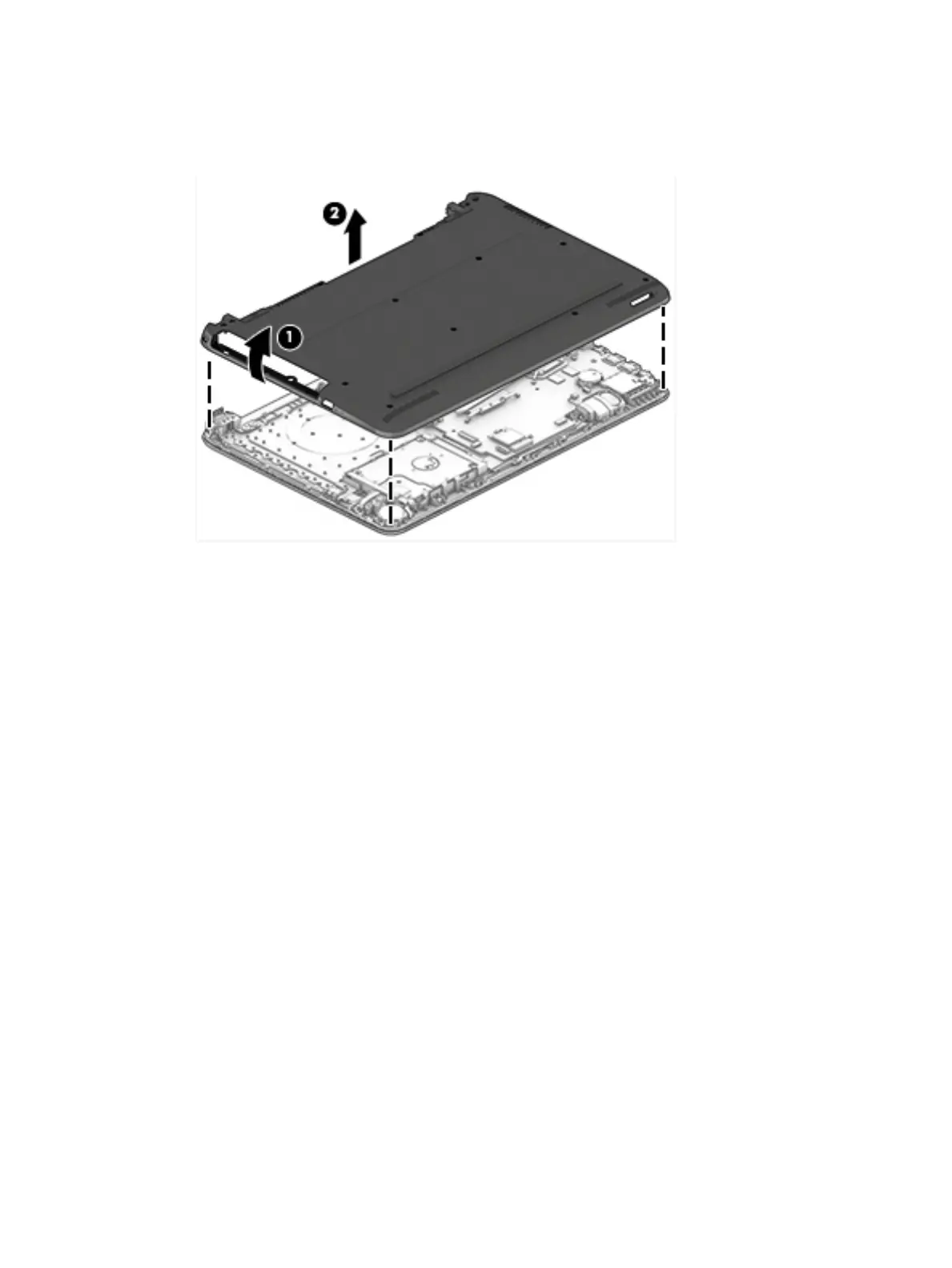

5. Start prying near the optical drive bay and work around to the back and side to separate the bottom
cover from the computer (1).
6. Remove the bottom cover (2).
Reverse this procedure to install the bottom cover.
Component replacement procedures 31
