Power connector cable
Description Spare part number
Power connector cable 813505-001
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 26).
5. Remove the optical drive (see Optical drive on page 27).
6. Remove the bottom cover (see Bottom cover on page 30).
7. Remove the display (see Display assembly on page 53).

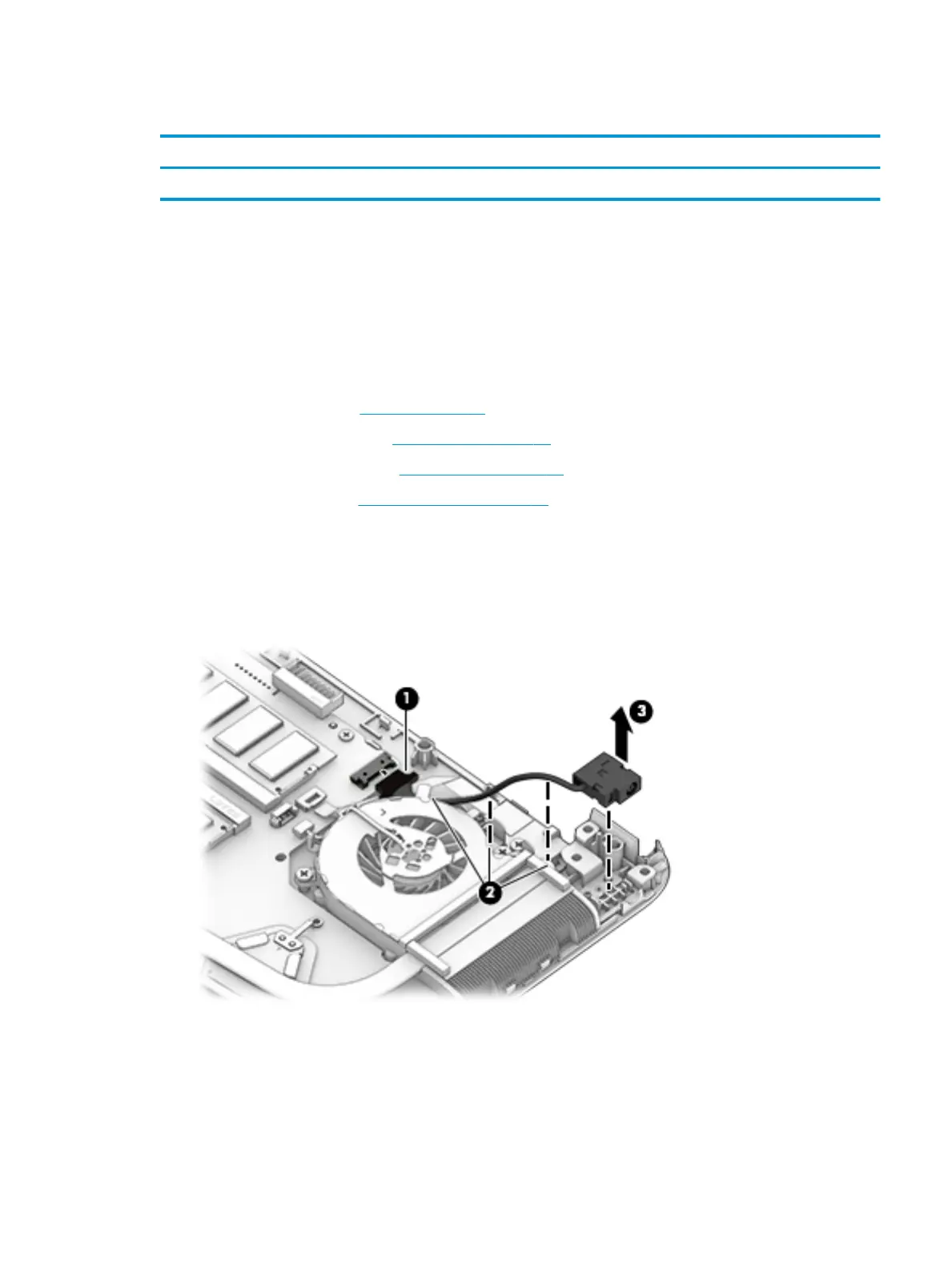

To remove the power connector cable:
1. Disconnect the cable from the system board (1).
2. Lift the tape and remove the cable from the clips around the fan (2).
3. Lift the power connector cable from the computer (3).
Reverse this procedure to install the power connector cable.
