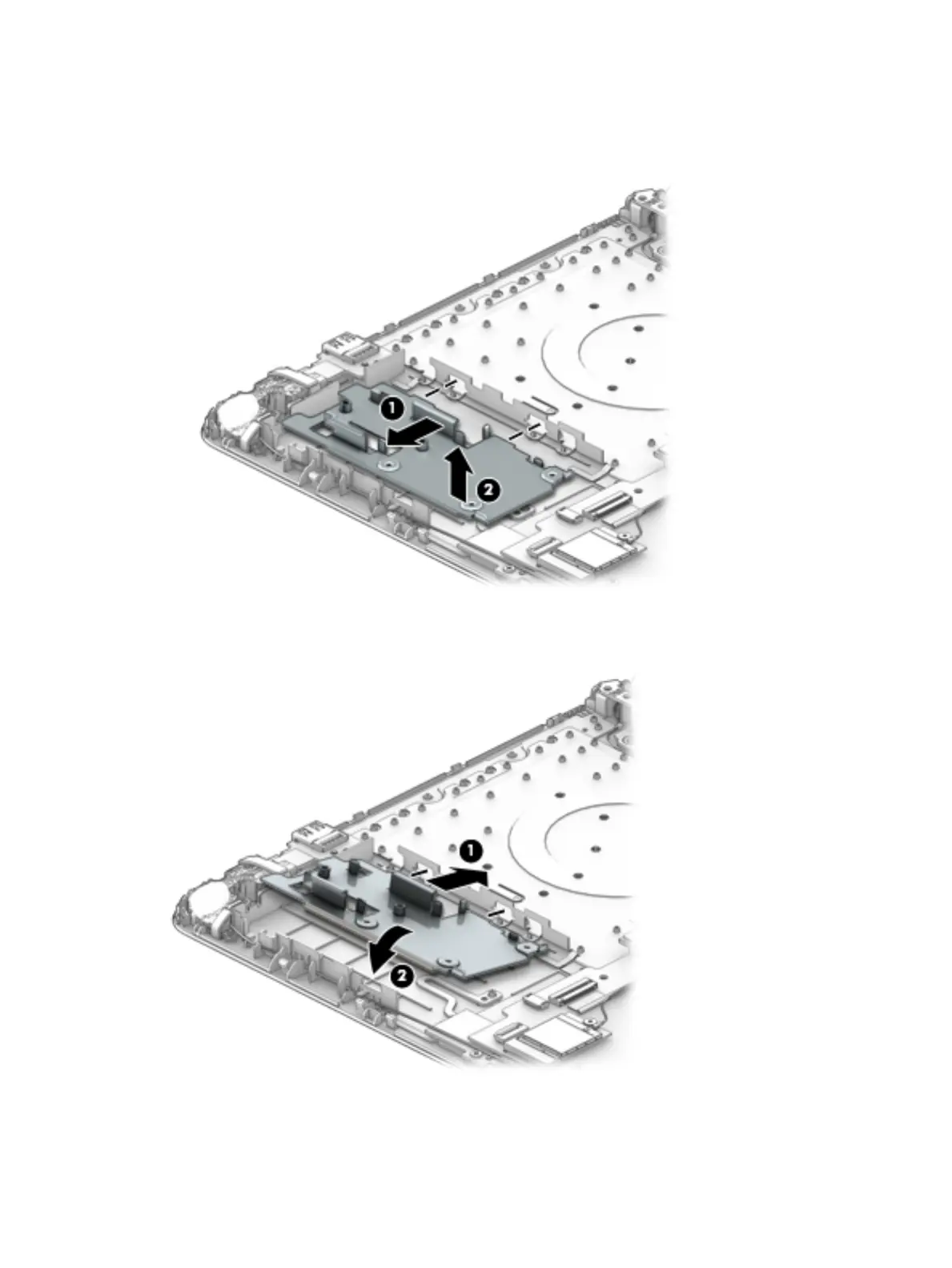

4. If you need to remove the eMMC bracket, slide the bracket toward the edge of the computer to
disengage it from the clips (1).
5. Lift the bracket from the computer (2).
Reverse this procedure to install the eMMC module.
To install the eMMC bracket, slide the bracket onto the clips (1) and then rotate it downward into place (2).
Component replacement procedures 35
