3. Remove the heat sink assembly from the system board (2).
NOTE: Heat sink appearance may vary.
Discrete graphics

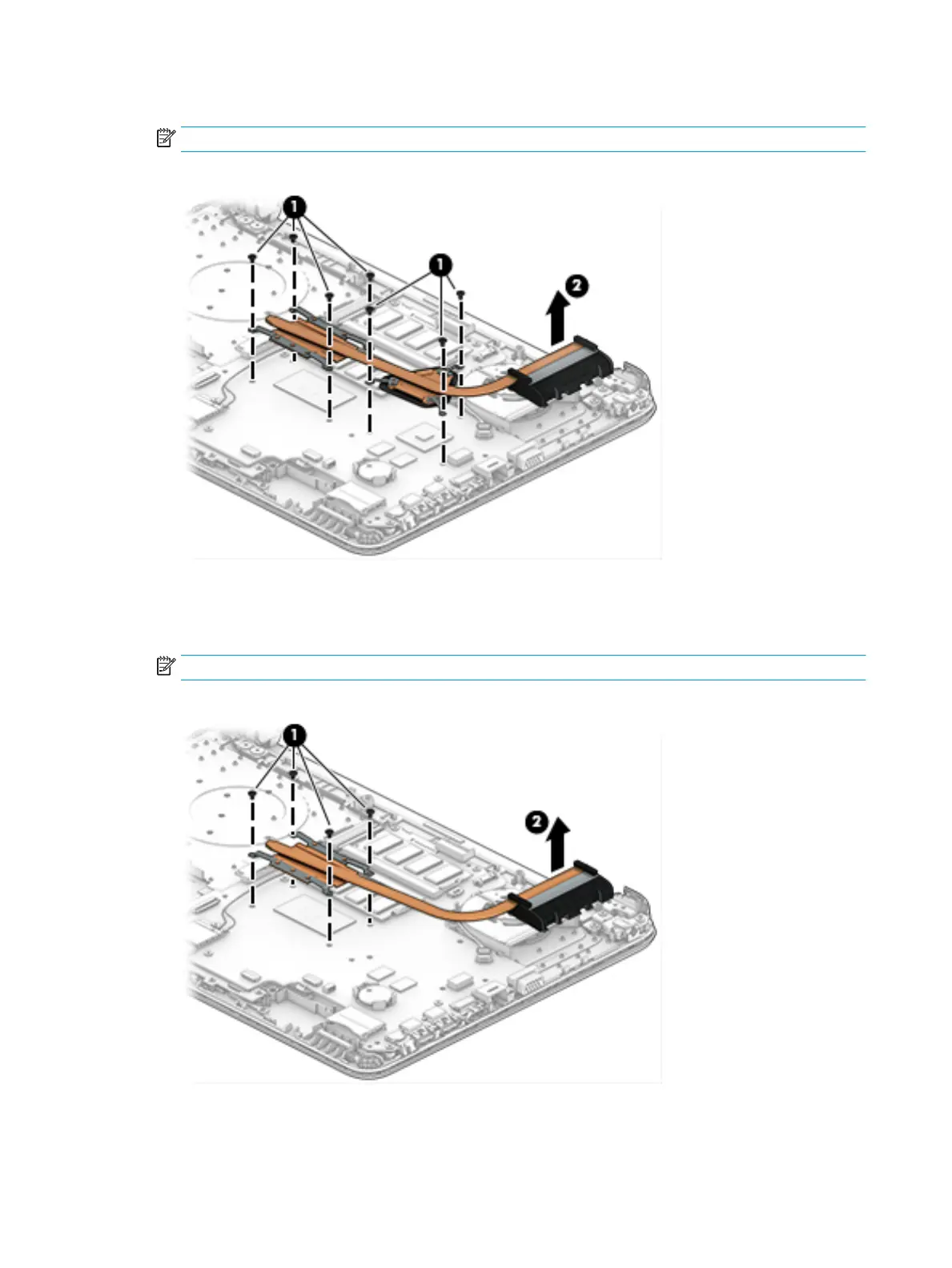

4. On models with UMA graphics, remove the four Phillips PM2.0×3.0 screws (1) on the heat sink that
secure the heat sink assembly to the system board.
5. Remove the heat sink assembly from the system board (2).
NOTE: Heat sink appearance may vary.
UMA graphics
Thermal paste is used on the processor and associated heat sink areas as shown in the following images:
●
Discrete graphics Heat sink (1) and processor (2), as well as the heat sink (3) and graphics chip (4).
44 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
