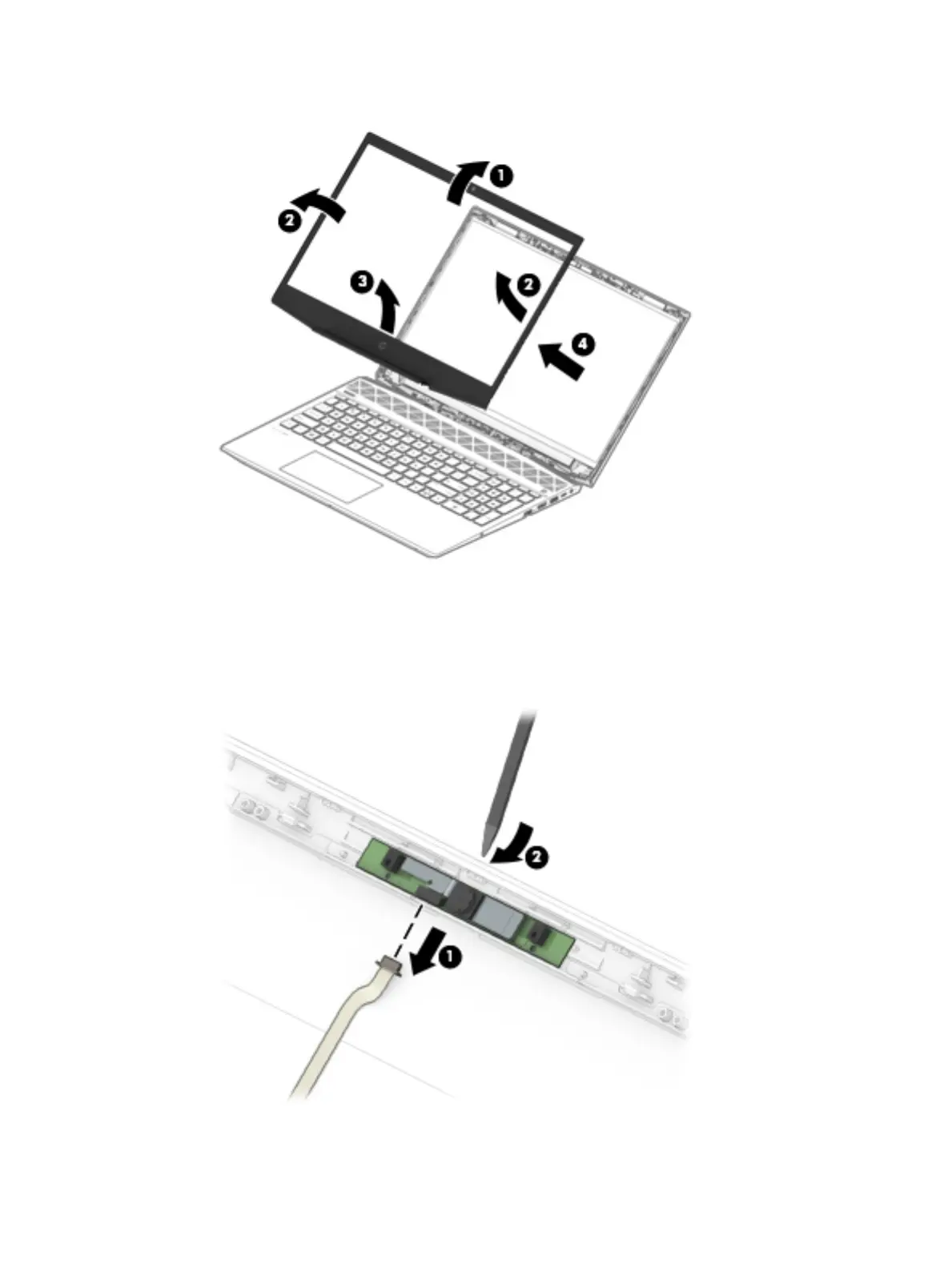

b. Remove the display bezel (4).
3. To remove the HD camera module:
a. Position the display assembly with the top edge toward you.
b. Disconnect the cable (1) from the camera module.
c. Pry up to disengage the camera module from the adhesive that secures it to the display (2).
4. To remove the infrared (IR) camera module:
30 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
