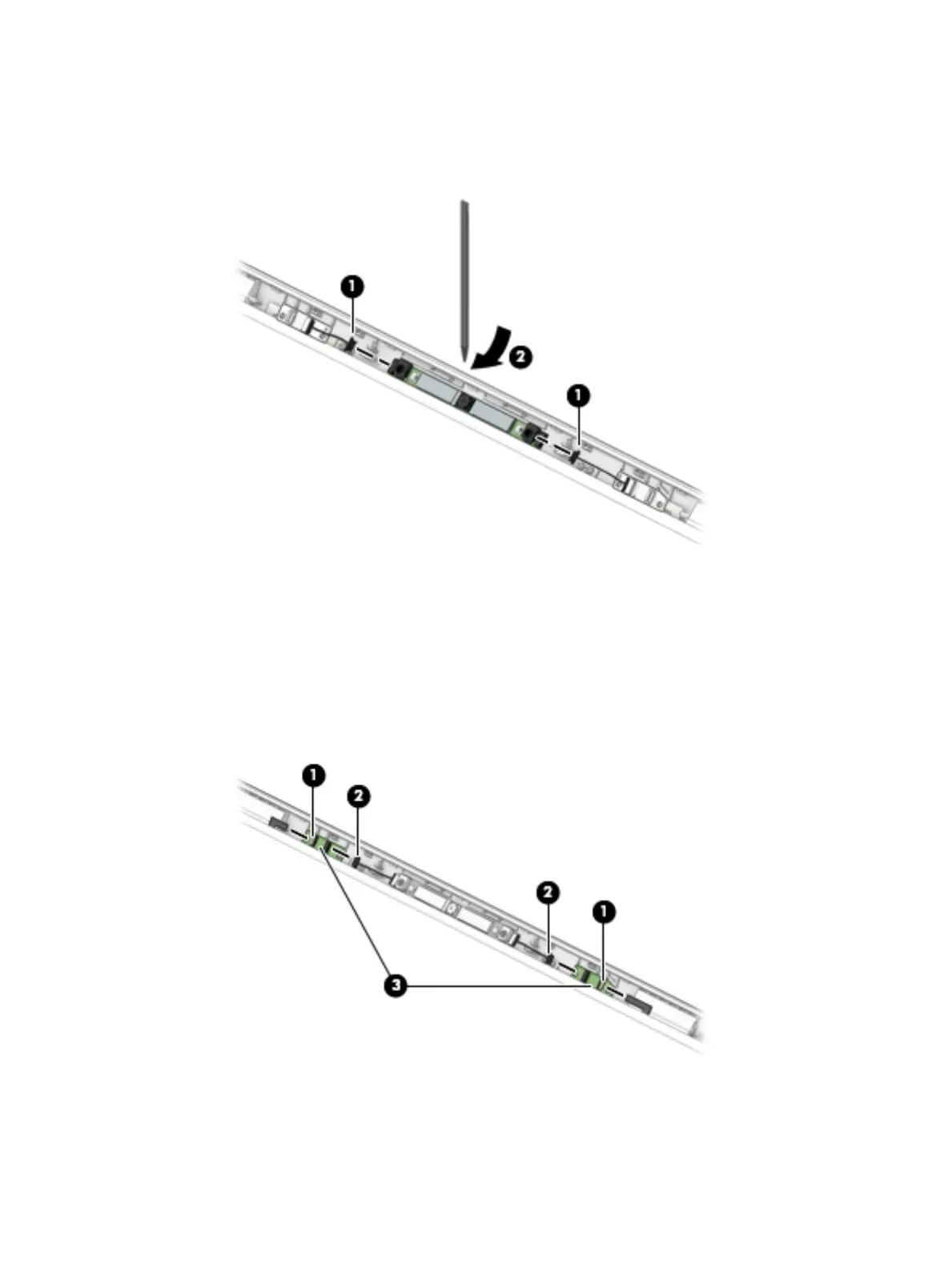

a. Position the display assembly with the top edge toward you.
b. Disconnect the cables from the sides of the camera module (1).
c. Pry up to disengage the camera module from the adhesive that secures it to the display (2).
5. To remove the IR camera board and/or HD camera board:
a. Position the display assembly with the top edge toward you.
b. Disconnect the cable from the ZIF connector outside of the board (1) and disconnect the cable from
the connector on the inside of the board (2).
c. Pry up to disengage the board from the adhesive that secures it to the display (3).
6. To remove the display panel:
Component replacement procedures 31
