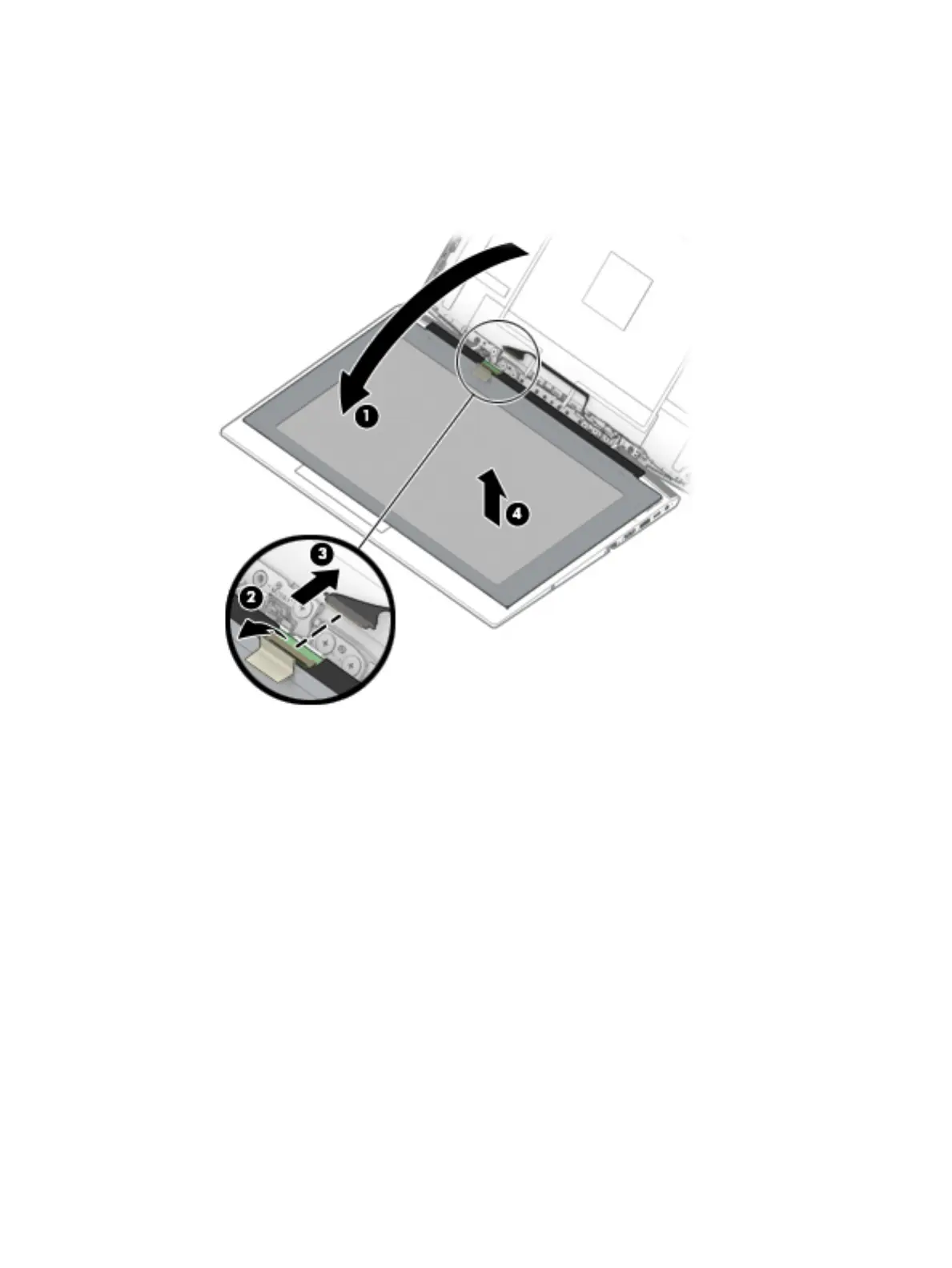

g. Rotate the display panel onto the keyboard (1) to gain access to the display cable connection on
the back of the panel.
h. On the back of the display panel, release the adhesive strip that secures the display panel cable to
the display panel (2), and then disconnect the cable (3).
i. Remove the display panel from the display enclosure (4).
34 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
