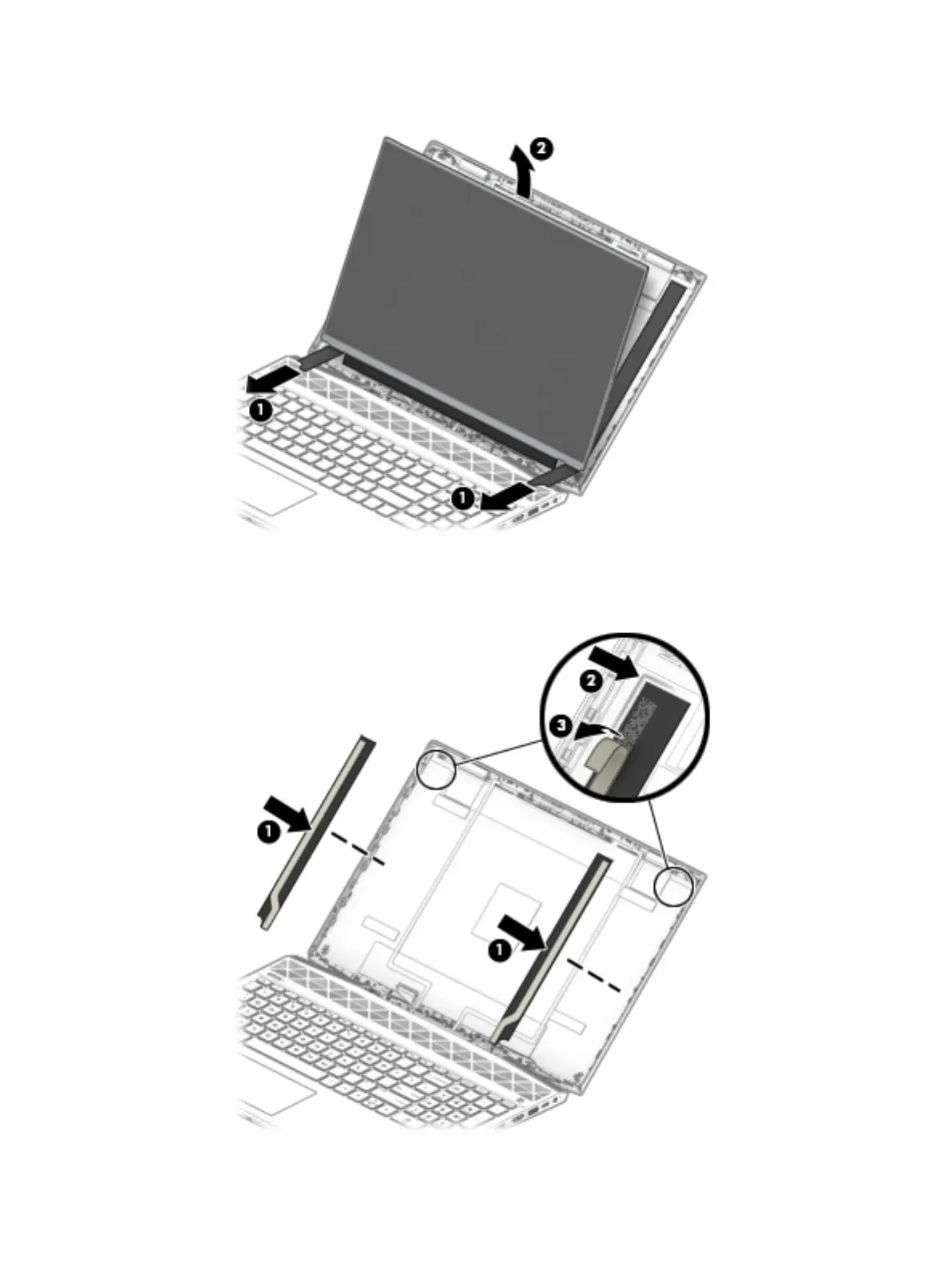

e. Lift the top of the display panel o the display rear cover (2).
f. Use the following illustration to determine tape installation location when replacing the panel.
Position the top of the adhesive at the right angle marks (1), place the adhesive on the display
enclosure (2), and then remove the paper from the adhesive (3).
Component replacement procedures 33
