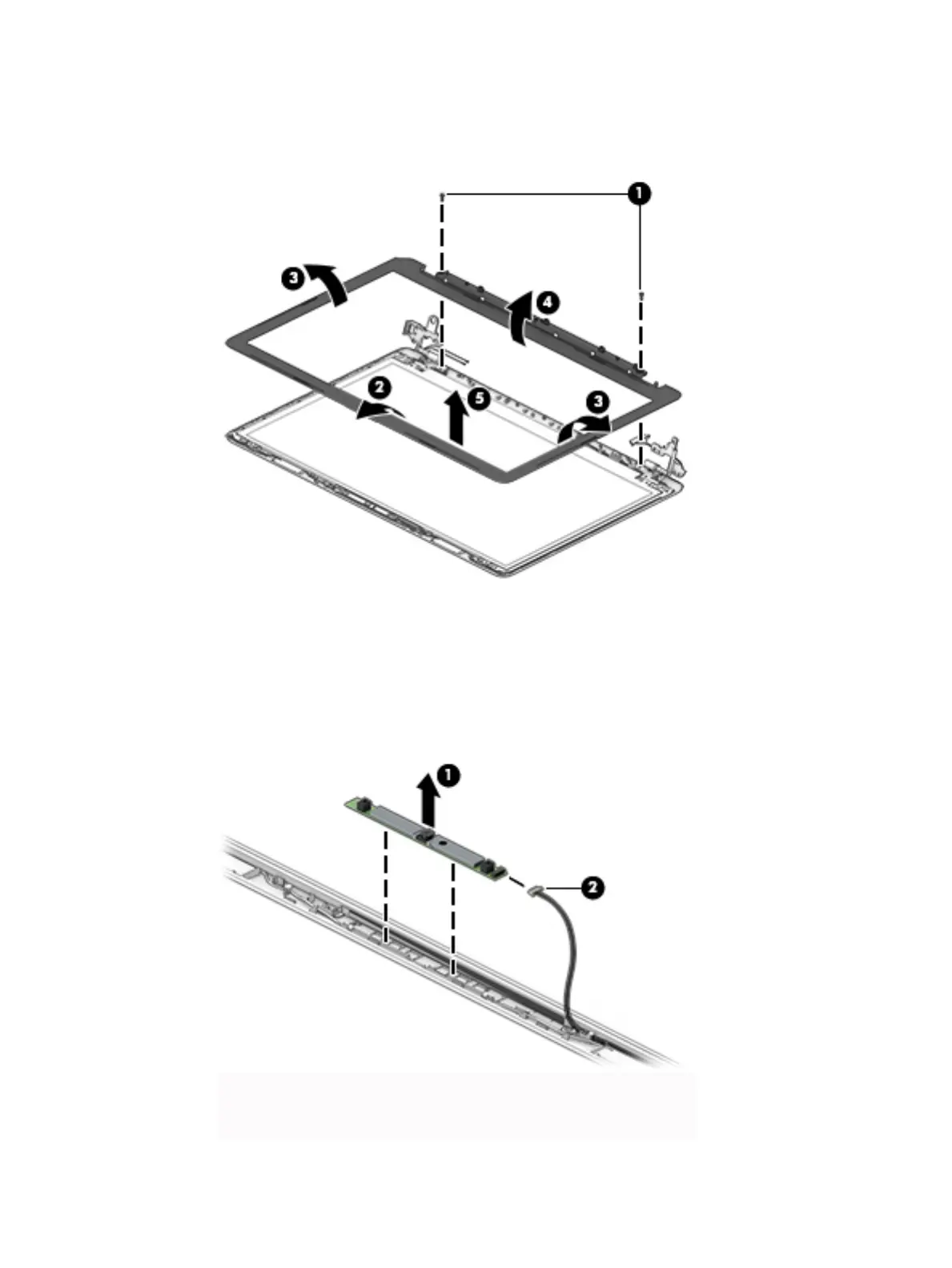

b. Remove the bezel (5).
The display bezel is available using spare part number L20421-001 for standard bezels and
L32367-001 for Real Tree bezels.
3. If it is necessary to replace the camera/microphone module:
a. Detach the module (1) from the display back cover. (The module is attached with double-
sided adhesive.)
b. Disconnect the cable (2) from the camera/microphone module.
The HD camera module is available using spare part number L20447-001. The VGA camera module
is available using spare part number L20446-001.
64 Chapter 6 Removal and replacement procedures for authorized service provider parts
