4. If it is necessary to replace the display panel:
IMPORTANT: HD panels are secured to the display enclosure with screws. FHD panels are secured with
tape.

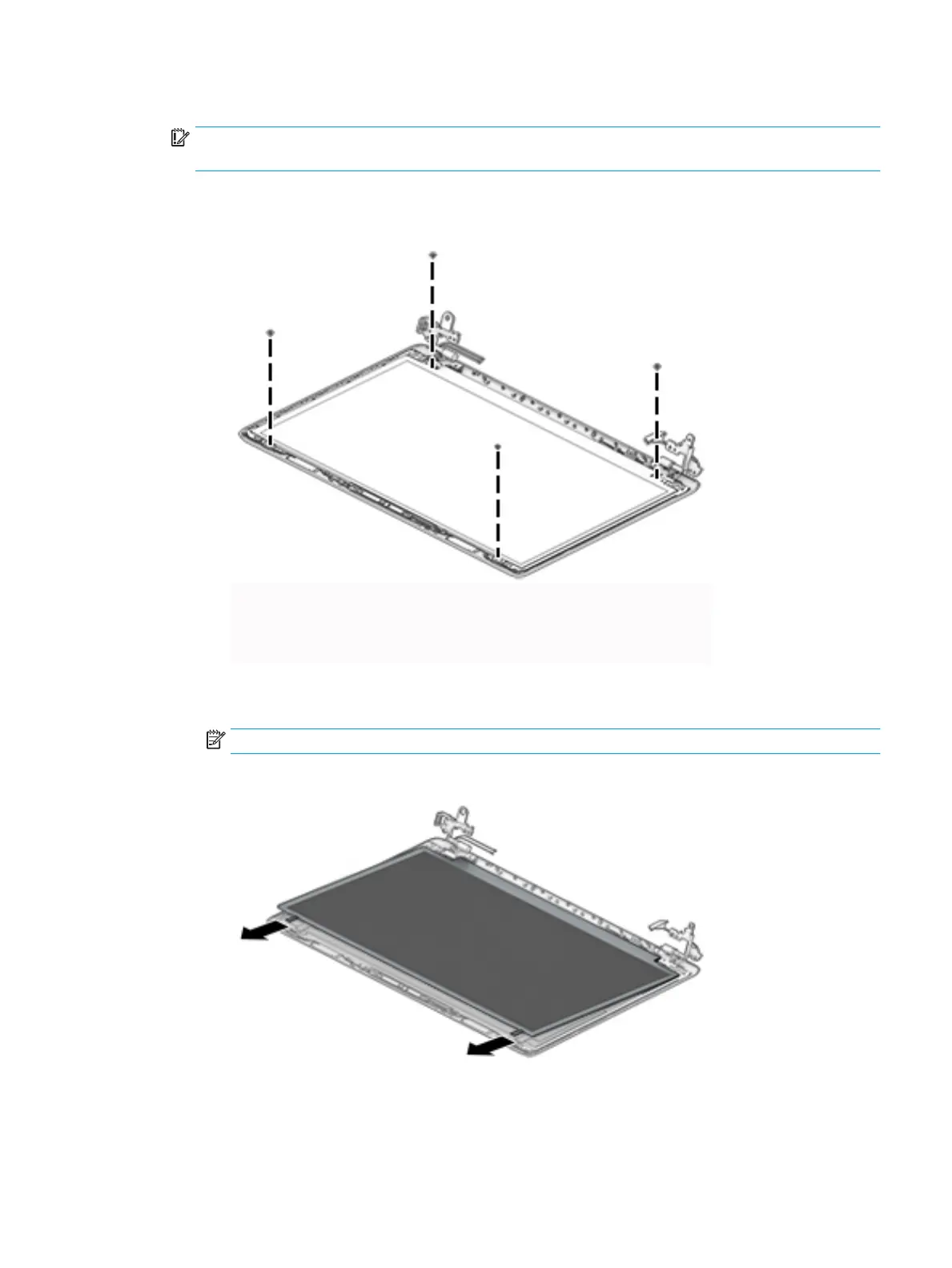

a. HD panels:
Remove the four Phillips M2.0 × 3.0 screws that secure the panel to the display enclosure.
FHD panels:
b. Pull the tape out from behind the left and right sides of the panel.
NOTE: You have to pull on the tape multiple times before it is completely removed.
Display panel stretchable adhesive tape is available using spare part number L29080-001.
c. HD and FHD panels:
Swing the top edge of the display panel forward and position it upside down next to the display
enclosure (1).
Component replacement procedures 65
