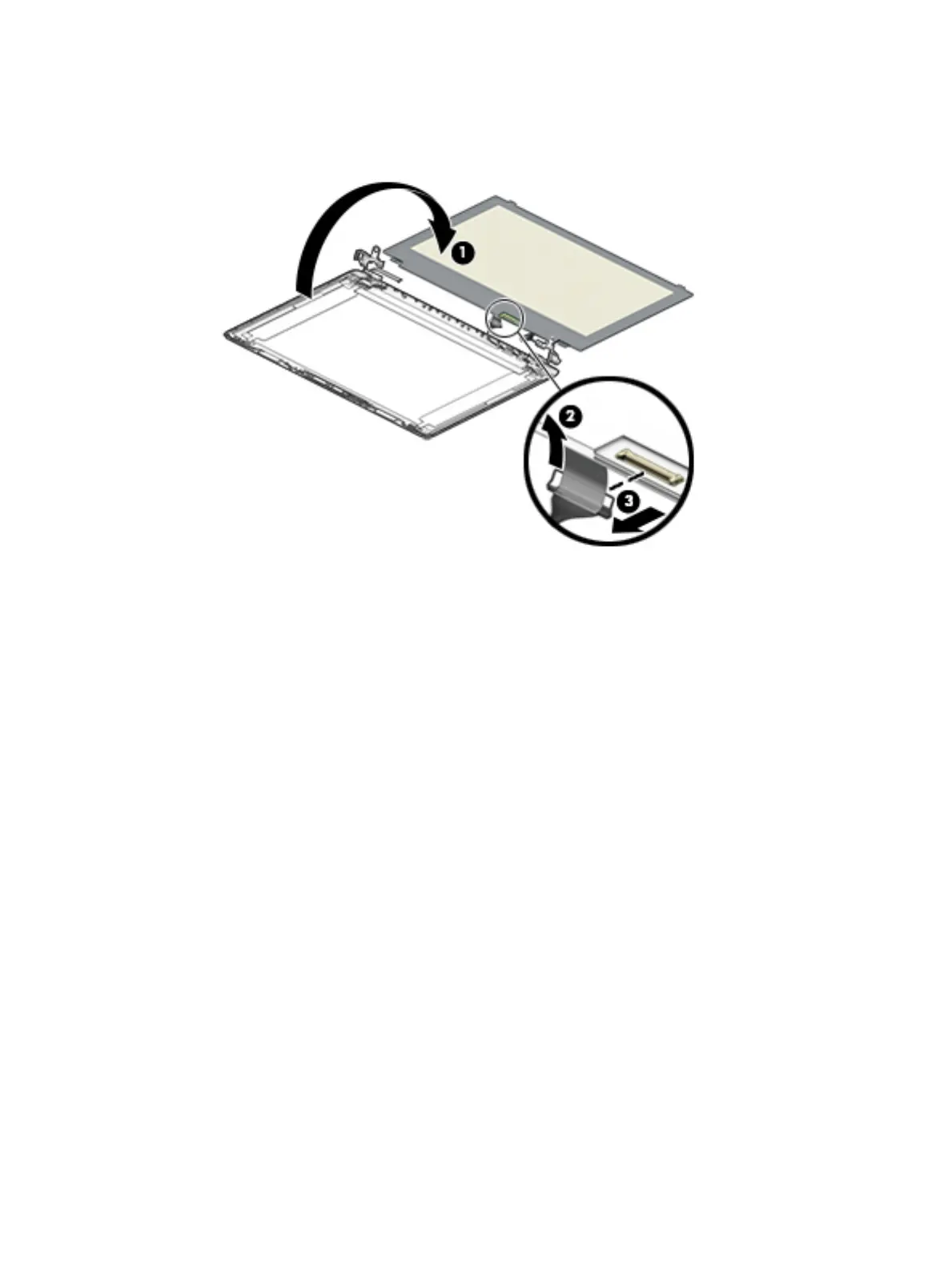

d. Release the adhesive support strip (2) that secures the display panel cable connector to the
display panel.
e. Disconnect the display panel cable (3) from the display panel.
f. Remove the display panel.
Raw display panels are available using the following spare part numbers:
L23208-001: FHD, anti glare
L23209-001: FHD, BrightView
L23210-001: HD, anti glare
L23211-001: HD, BrightView
5. If it is necessary to replace the display hinges:
a. Remove the three Phillips M2.5 × 2.5 screws (1) from each hinge.
66 Chapter 6 Removal and replacement procedures for authorized service provider parts
