To protect a memory module after removal, place it in an electrostatic-safe container.

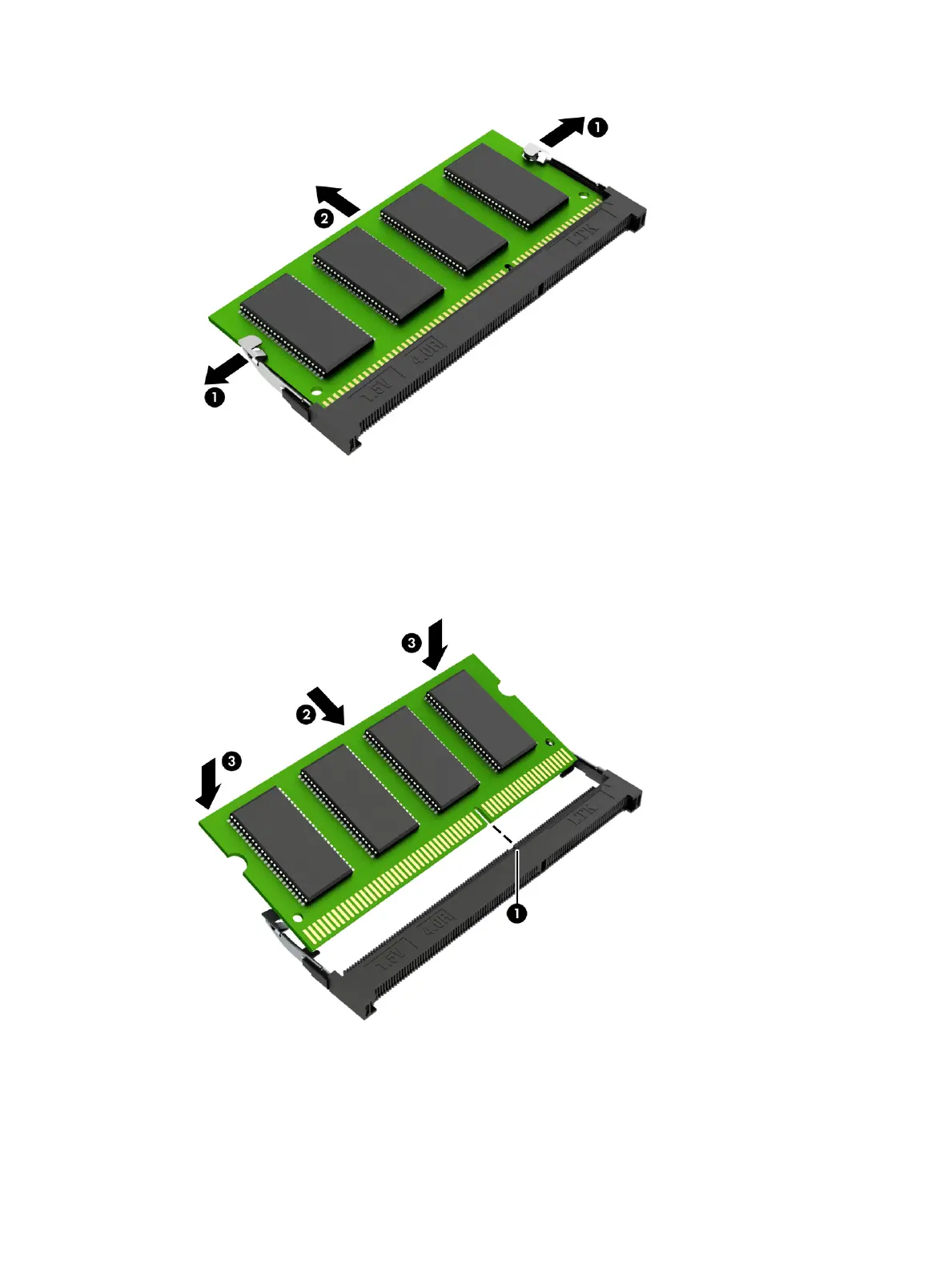

To install a memory module:
1. Align the notched edge of the module with the tab in the slot (1), and then press the module into the slot
at an angle until it is seated (2).
2. Press down on the module until the side retention clips snap into place (3).
USB board
To remove the USB board, use this procedure and illustration.
34 Chapter 5 Removal and replacement procedures for authorized service provider parts

HP 15z-cw100 Specifications

General

Storage	256GB PCIe NVMe M.2 SSD
Operating System	Windows 10 Home
Battery	3-cell, 41 Wh Li-ion
Audio	Dual speakers
Color	Natural Silver
RAM	8GB DDR4-2400 SDRAM
Weight	4.08 lb
Wireless	Realtek RTL8821CE 802.11b/g/n/ac (1x1) and Bluetooth 4.2
Ports	1 HDMI 1.4b; 1 RJ-45; 1 headphone/microphone combo
Dimensions	14.11 x 9.53 x 0. in
Graphics	AMD Radeon Vega 8 Graphics
