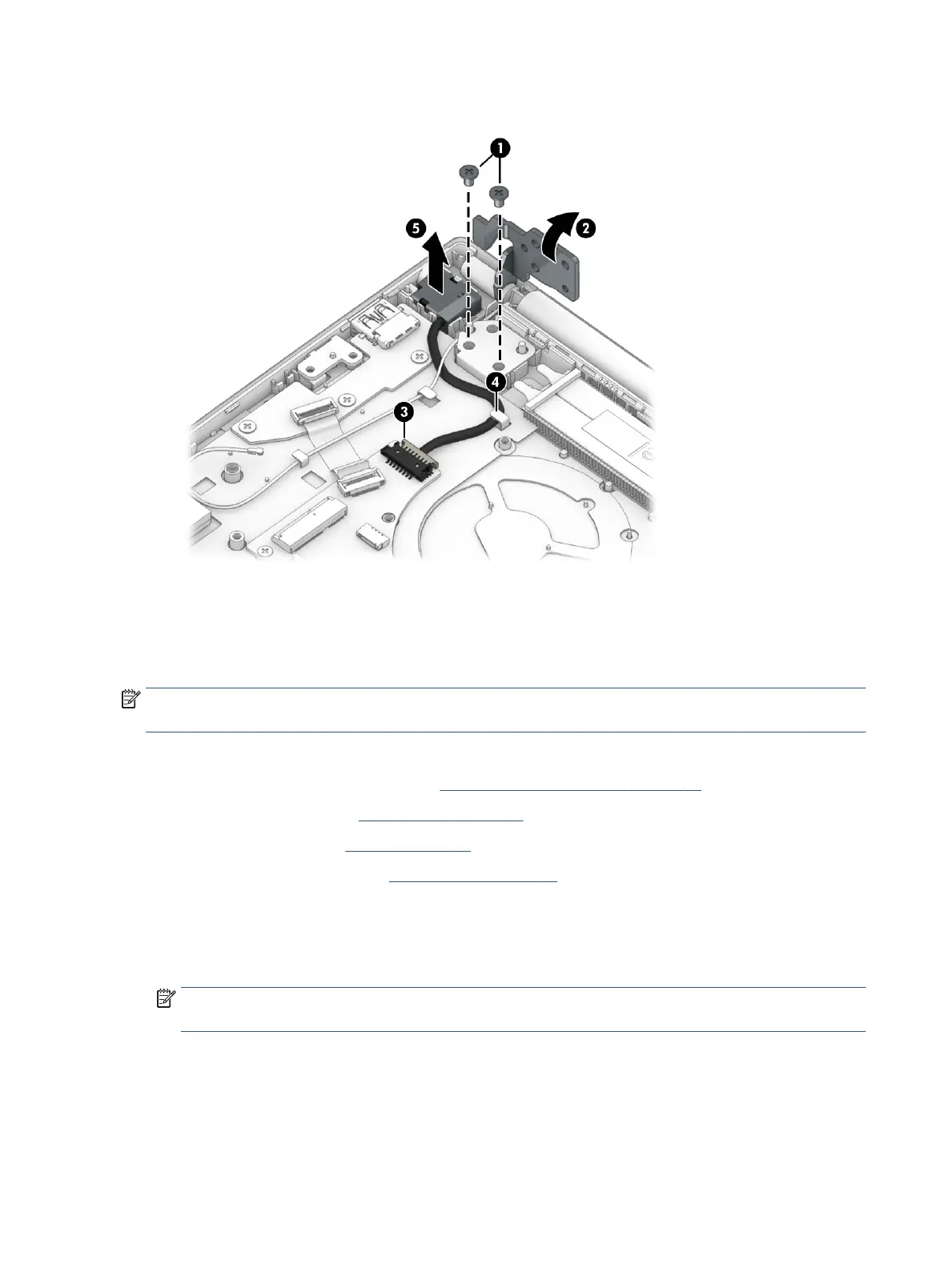

5. Remove the power connector cable from the computer (5).
Reverse this procedure to install the power connector cable.
Display assembly
To remove and disassemble the display assembly, use these procedures and illustrations.
NOTE: The display assembly is spared at the subcomponent level. For display assembly spare part
information, see the individual removal subsections.
Before removing the display panel, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 27).
2. Remove the bottom cover (Bottom cover on page 27).
3. Remove the battery (see Battery on page 29).
4. Remove the WLAN module (see WLAN module on page 30).
Remove the display assembly:
1. Disconnect the display cable from the system board ZIF connector (1).
2. Disconnect the WLAN antenna cables (2) from the terminals on the WLAN module.
NOTE: The WLAN antenna cable labeled 1/MAIN connects to the WLAN module Main terminal. The
WLAN antenna cable labeled 2/AUX connects to the WLAN module Aux terminal.
44 Chapter 5 Removal and replacement procedures for authorized service provider parts
