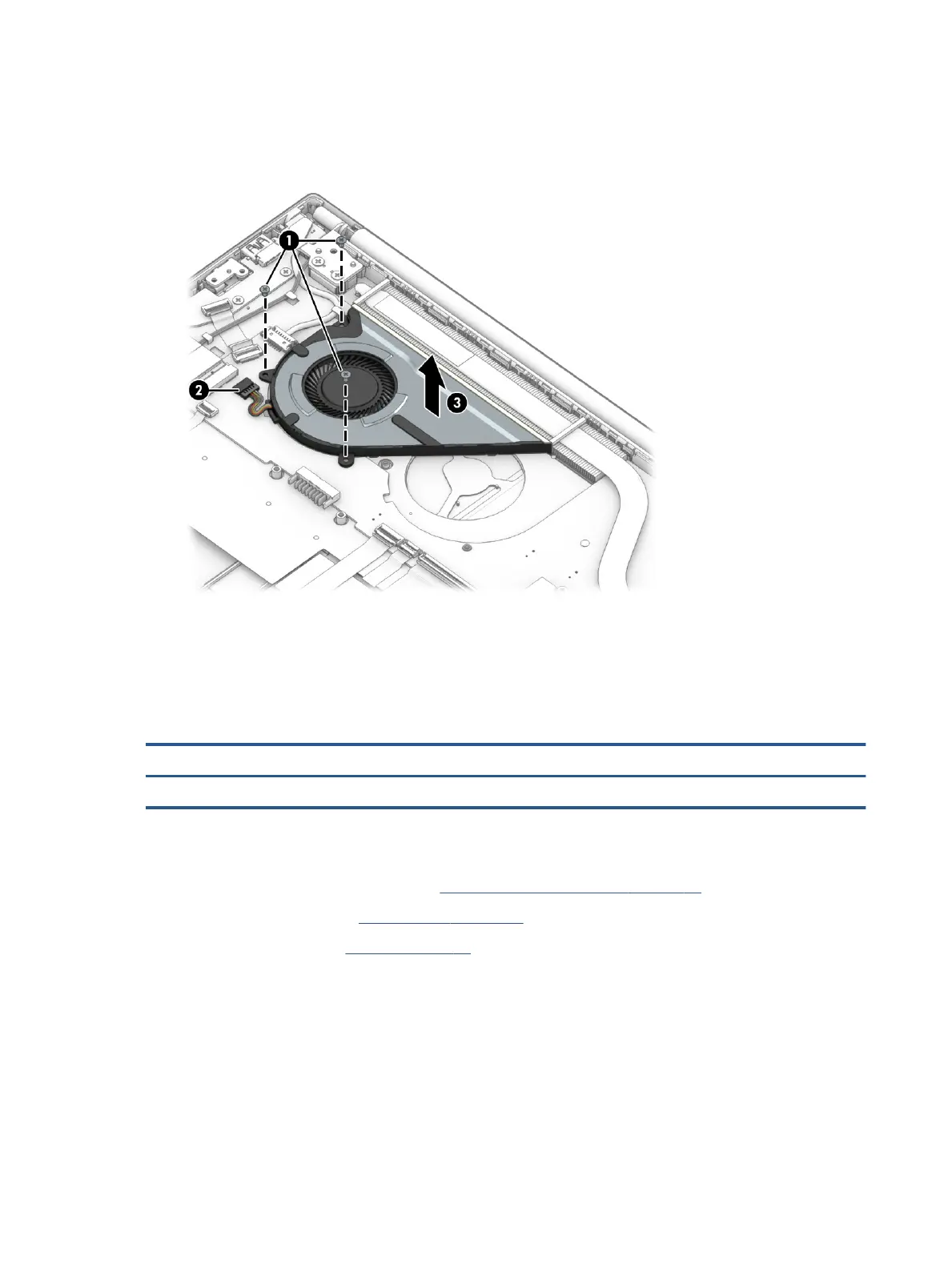

1. Remove the three Phillips M2.0 × 3.0 screws (1) that secure the fan to the computer.
2. Disconnect the fan cable from the system board (2).
3. Remove the fan from the computer (3).
Reverse this procedure to install the fan.
Heat sink
To remove the heat sink, use these procedures and illustrations.
Table
5-10 Heat sink descriptions and part numbers
Description Spare part number
Heat sink M08944-001
Before removing the heat sink, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 27).
2. Remove the bottom cover (Bottom cover on page 27).
3. Remove the battery (see Battery on page 29).
Remove the heat sink:
1. In the order indicated on the heat sink, remove the three Phillips M2.0 × 2.0 screws (1) that secure the
heat sink to the system board.
38 Chapter 5 Removal and replacement procedures for authorized service provider parts

HP 15z-cw100 Specifications

General

Storage	256GB PCIe NVMe M.2 SSD
Operating System	Windows 10 Home
Battery	3-cell, 41 Wh Li-ion
Audio	Dual speakers
Color	Natural Silver
RAM	8GB DDR4-2400 SDRAM
Weight	4.08 lb
Wireless	Realtek RTL8821CE 802.11b/g/n/ac (1x1) and Bluetooth 4.2
Ports	1 HDMI 1.4b; 1 RJ-45; 1 headphone/microphone combo
Dimensions	14.11 x 9.53 x 0. in
Graphics	AMD Radeon Vega 8 Graphics
