HP 1630G

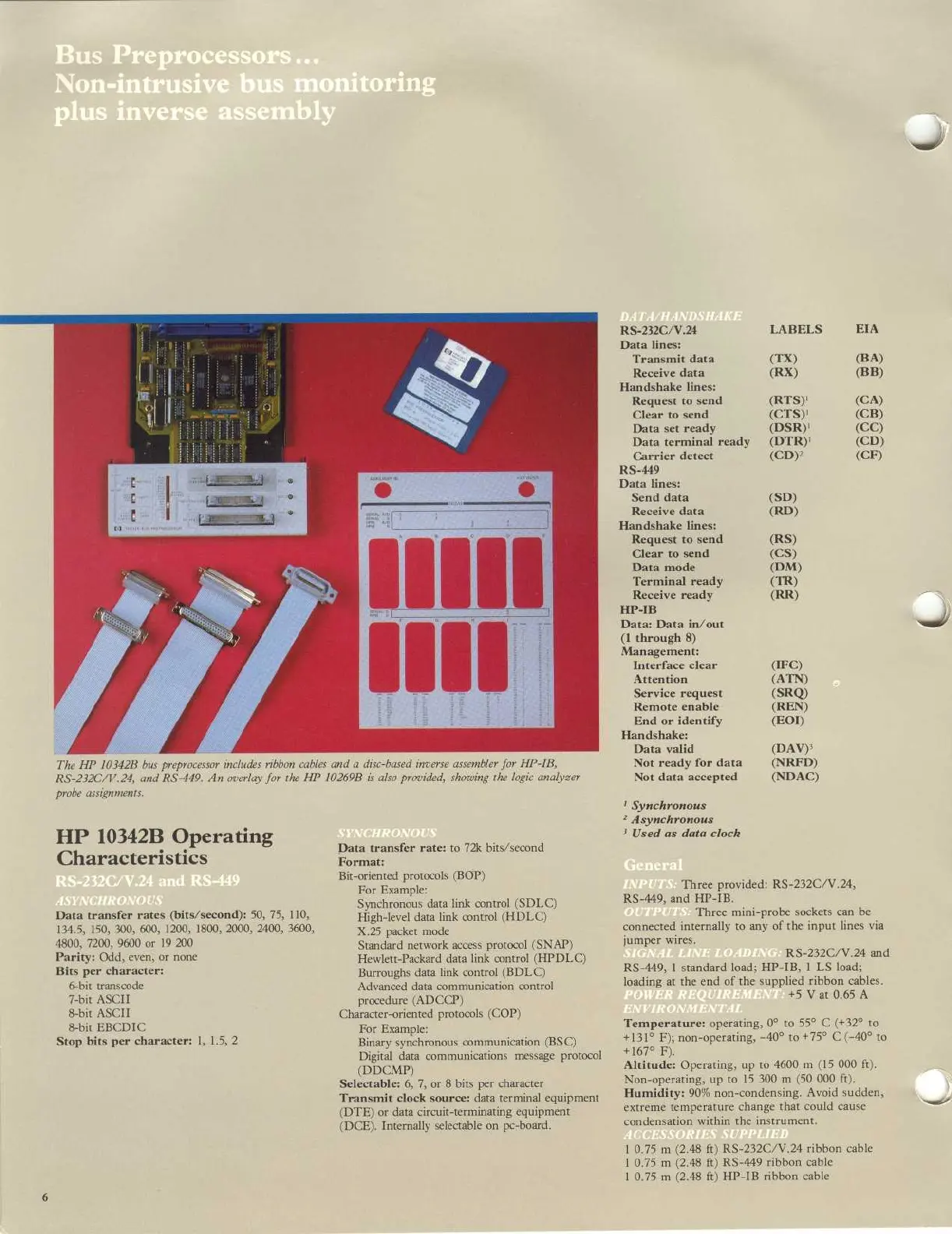

The HP 10342B bus preprocessor includes ribbon
cables and a disc-based inverse assembler for HP-1B,
RS-232C/V .24, and RS-449
.
An
overlay for the HP 10269B is also provided, showing the logic analyzer
probe assignments .
HP I0342B Operating
Characteristics
Data transfer
rates (bits/second) : 50, 75, 110,
134 .5, 150, 300,
600, 1200, 1800, 2000, 2400, 3600,
4800,
7200, 9600 or 19 200
Parity :
Odd,
even, or none
Bits per character :
6-bit transcode
7-bit
ASCII
8-bit ASCII
8-bit
EBCDIC
Stop
bits per character : 1, 1 .5, 2
Data transfer rate : to 72k bits/second
Format :
Bit-oriented protocols (BOP)
For Example :
Synchronous data link control (SDLC)
High-level data link control
(HDLG)
X .25 packet mode
Standard network
access protocol (SNAP)
Hewlett-Packard
data link control (HPDLC)
Burroughs data link control (BDLC)
Advanced data communication control
procedure (ADCCP)
Character-oriented protocols (COP)
For
Example :
Binary synchronous communication (BSC)
Digital data communications
message protocol
(DDCMP)
Selectable : 6, 7, or
8 bits per character
Transmit clock source : data terminal
equipment
(DTE) or data
circuit-terminating equipment
(DCE) . Internally selectable
on pc-board .
'Synchronous
z
Asynchronous
' Used as data clock
Three provided : RS-232C/V
.24,
RS-449, and HP-IB .
Three mini-probe
sockets can be
connected
internally to any of the input lines via
jumper
wires .
RS-232C/V .24 and
RS-449, 1 standard load ; HP-113, 1 LS load ;
loading at the end of the supplied
ribbon cables .
+5 V at 0 .65 A
Temperature : operating, 0° to 55° C
(+32°
to
+131° F) ; non-operating, -40° to
+75° C (-40° to
+167° F) .
Altitude : Operating,
up to 4600 m (15 000 ft) .
Non-operating, up to 15
300 m (50 000 ft) .
Humidity :
90% non-condensing . Avoid sudden,
extreme
temperature change that could cause
condensation
within the instrument .
1 0 .75 m (2
.48 ft) RS-232C/V .24 ribbon cable
1 0 .75 m (2 .48 ft) RS-449 ribbon cable
1 0 .75 m (2 .48 ft) HP-113 ribbon cable
RS-232C/V
.24 LABELS EIA
Data lines :
Transmit data
(TX) (BA)
Receive
data (RX) (BB)
Handshake lines :
Request to
send (RTS)' (CA)
Clear to
send (CTS)' (CB)
Data set ready (DSR)' (CC)
Data terminal ready (DTR)'
(CD)
Carrier detect
(CD) 2 (CF)
RS-449
Data lines :
Send data (SD)
Receive data (RD)
Handshake lines :
Request to send (RS)
Clear to send
(CS)
Data mode (DM)
Terminal ready (TR)
Receive ready (RR)
HP-IB
Data : Data in/out
(I through 8)
Management :
Interface clear (IFC)
Attention (ATN)
Service request (SRQ)
Remote enable (REN)
End or identify (EOI)
Handshake :
Data valid (DAV) 3
Not ready for data (NRFD)
Not data accepted (NDAC)
