HP 1630G

RS-232C/V .24
and RS-449
The HP 1630A/D/G and
HP 1631A/D
logic analyzers have trace
resource terms
that allow you to trigger
on a precise
sequence of data
within the serial stream .
For
example, a logic analyzer with the
HP
10342B can be set up to find
specific
patterns
in the data stream . Here,
the logic
analyzer is scanning the data
stream for an
"L,"
which is defined as the term
"a"
(figure 1) . When it is found, the
analyzer
stores it-, and looks to see whether
the next
term
is "O" or "b ." If it finds
"b" next to
"a,"
it stores both terms and
proceeds to
look
for "c ." If it does not find
"b" next
to "a," the
analyzer looks for a second
"a ;"
stores
it, and then looks to see
whether a
"b"
follows it . This process
continues until
a "b"
is found that follows an
"a ." This
ensures
that the exact sequence
is located .
The analyzer then finds "c,"
stores it, and
begins
its trace upon finding
"d ."
After the trace
is complete, the
analyzer
presents the data in an
easy-to-read
inverse-assembled
format .
There is no need to
interpret symbols
(figure 2) . The analyzer
displays "a," "b,"
"c," and "d" followed
by the rest of the
serial stream .
You can easily identify
transmissions,
receptions, their respective
input pin numbers,
and the data .
To locate
bottlenecks, the HP 1630G
displays the
relative time between states .
Rewriting
a particular section of code
can
greatly
reduce transmission time .
HP-IB
The
HP 10342B simplifies
monitoring
and locating HP-113
problems . The
HP logic analyzer's trace
capability
allows you to trigger on a
specific address,
data, or control function .
HP-IB is based on
a three-wire
handshake process for
transferring data .
The handshake
process can be viewed
with the timing
analyzer to ensure
proper sequencing . The
display shows
that the sequence
occurred properly but
that there is
a glitch on the
not-ready-for-data
(NRFD) line . The
HP 1631A/D's
200 megasample/second
digitizing
oscilloscope capabilities
can be
used to
display the glitch with
up to
5-ns
resolution (figure
3) .
State Llsting ___- -----------------
------------------- __------
L

41Y
ab :U

TX RX

PIN BATH . HER ITS CIS OTR
DSR . CD

TL~e
Base ,

l

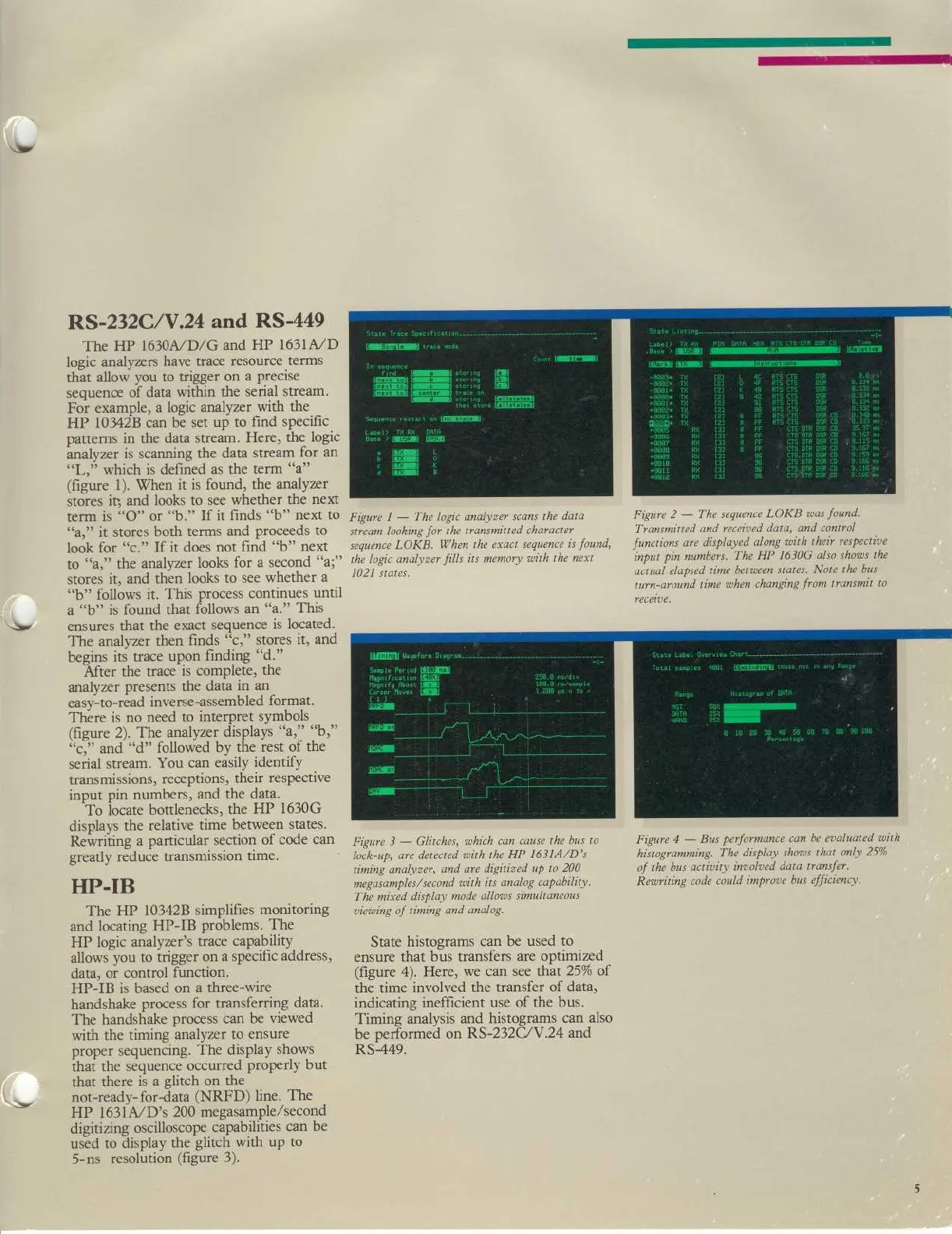

Figure 1 - The logic analyzer scans the
