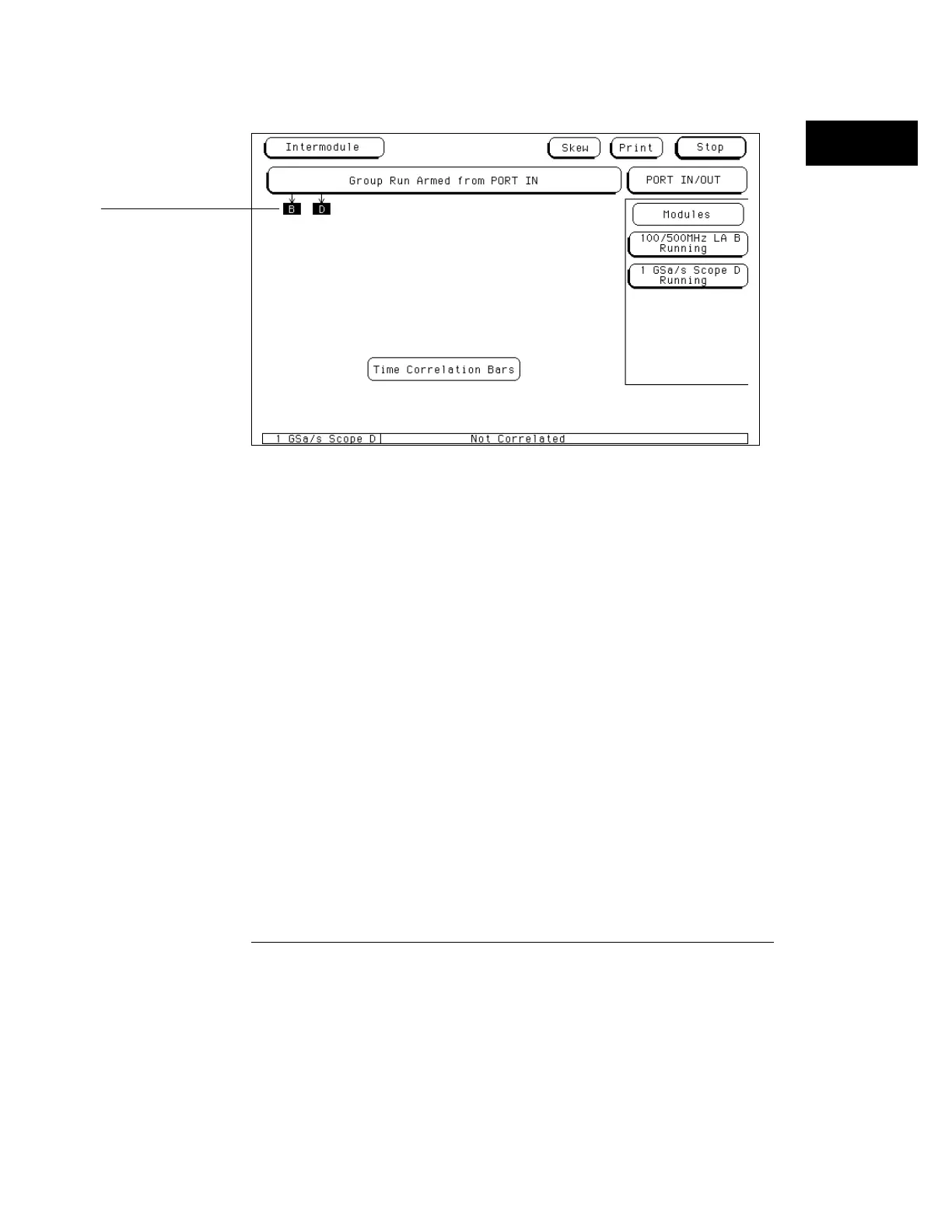

State Analyzer and Oscilloscope armed from PORT IN

Both the analyzer in

slot B and the

oscilloscope in slot D

are armed when the

PORT IN signal

arrives.

Intermodule Measurements

To start a group run of modules from an external trigger source

2–7

Main Page
