2. Lift the rear edge of the hard drive compartment cover (2) up and forward until it rests at
an angle.

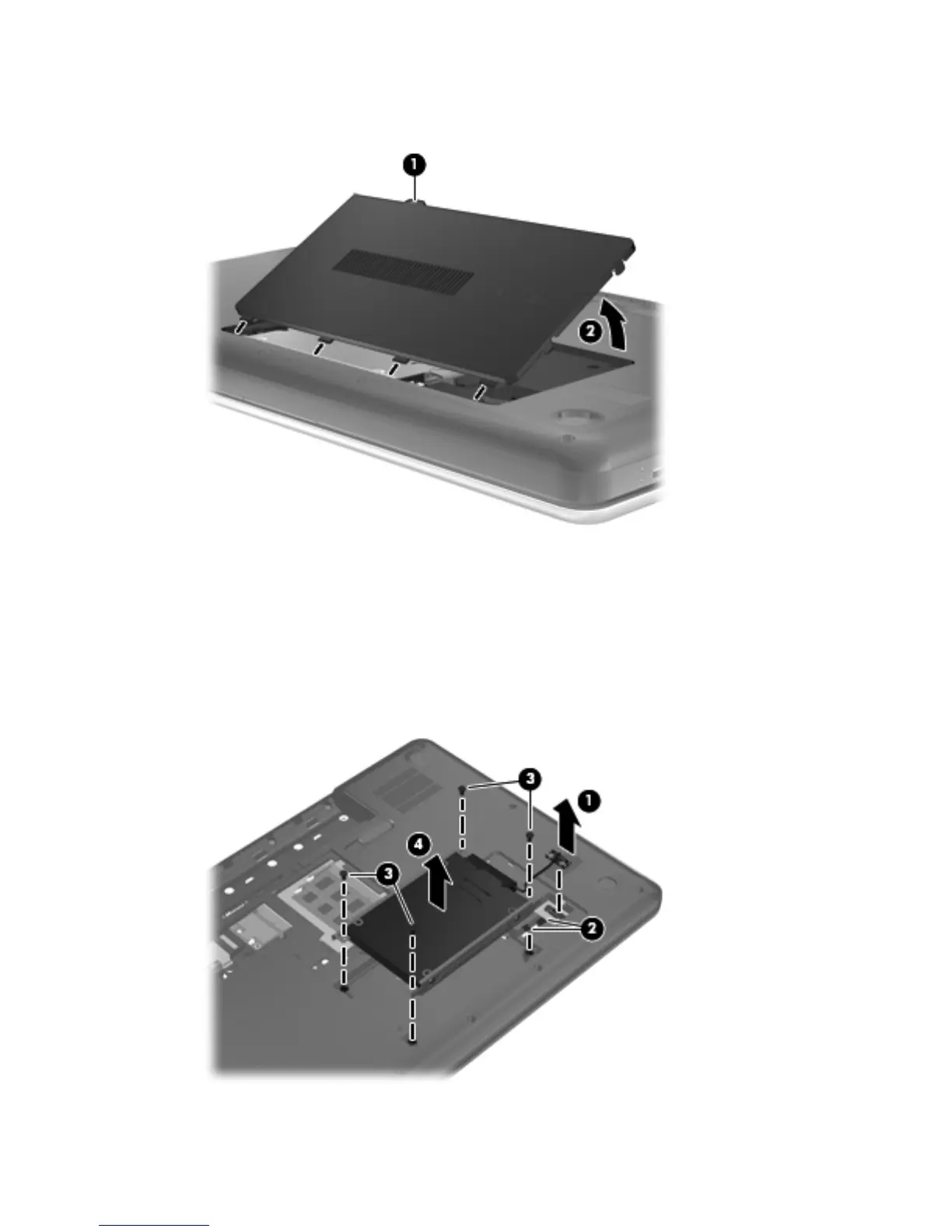

3. Remove the hard drive compartment cover. The hard drive compartment cover is available in the
Plastics Kit, spare part number 646131-001.
4. Disconnect the hard drive connector cable (1) from the system board.
5. Release the hard drive connector cable from the clips (2) built into the base enclosure.
6. Remove the four Phillips PM 2.5×6.0 screws (3) that secure the hard drive to the computer.
7. Remove the hard drive (4).
Component replacement procedures 47
