Remove the keyboard:

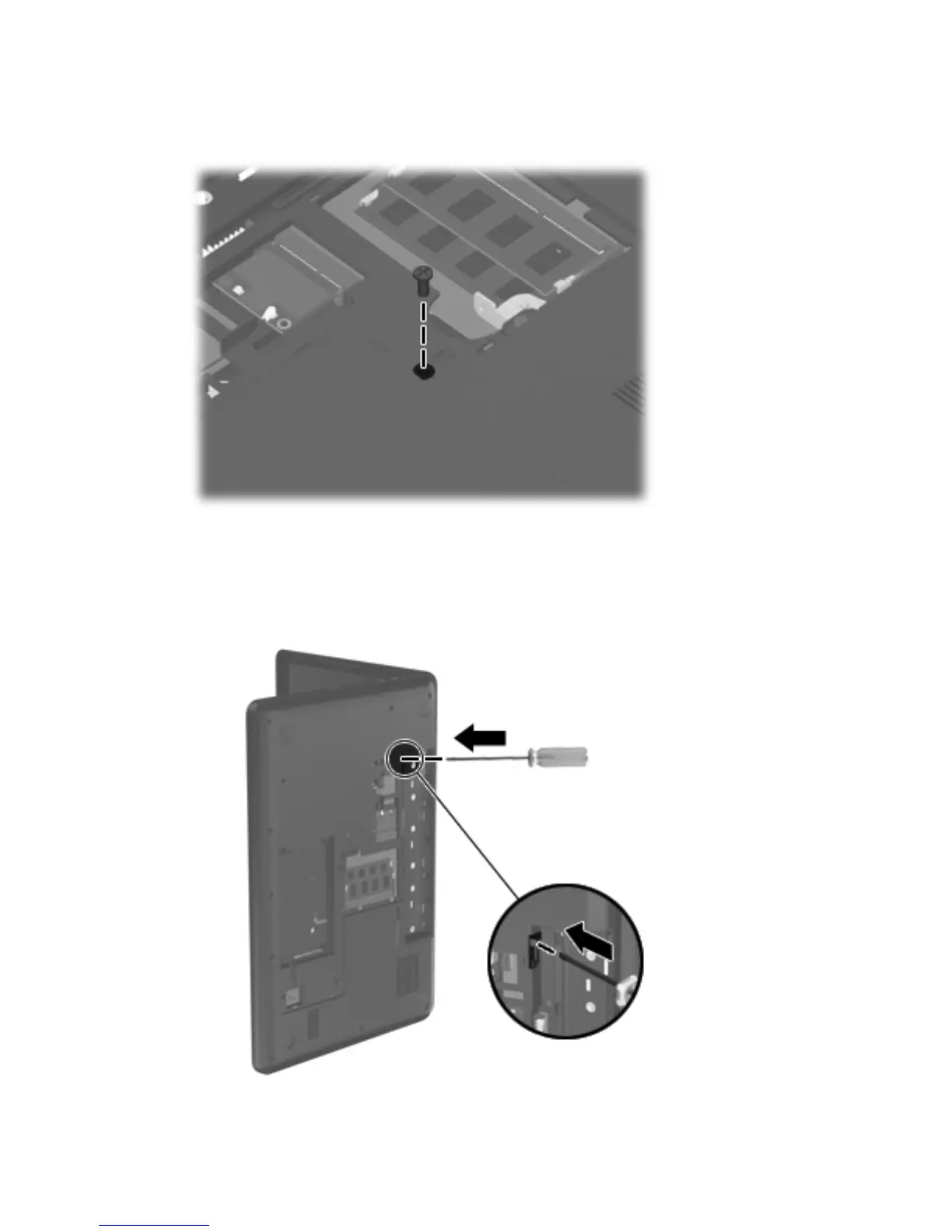

1. Remove the Phillips PM2.5×6.0 screw that secures the keyboard to the computer.
2. Rest and secure the computer on its left side.
3. Partially open the computer.
4. Insert a screw driver or similar thin tool into the keyboard release hole, and then press on the
back of the keyboard until the keyboard disengages from the computer.
5. Turn the computer right-side up with the front toward you.
50 Chapter 4 Removal and replacement procedures
