HP 203A - Page 54

С
Моде!
203А
Section
VI
Е
Table
6-1

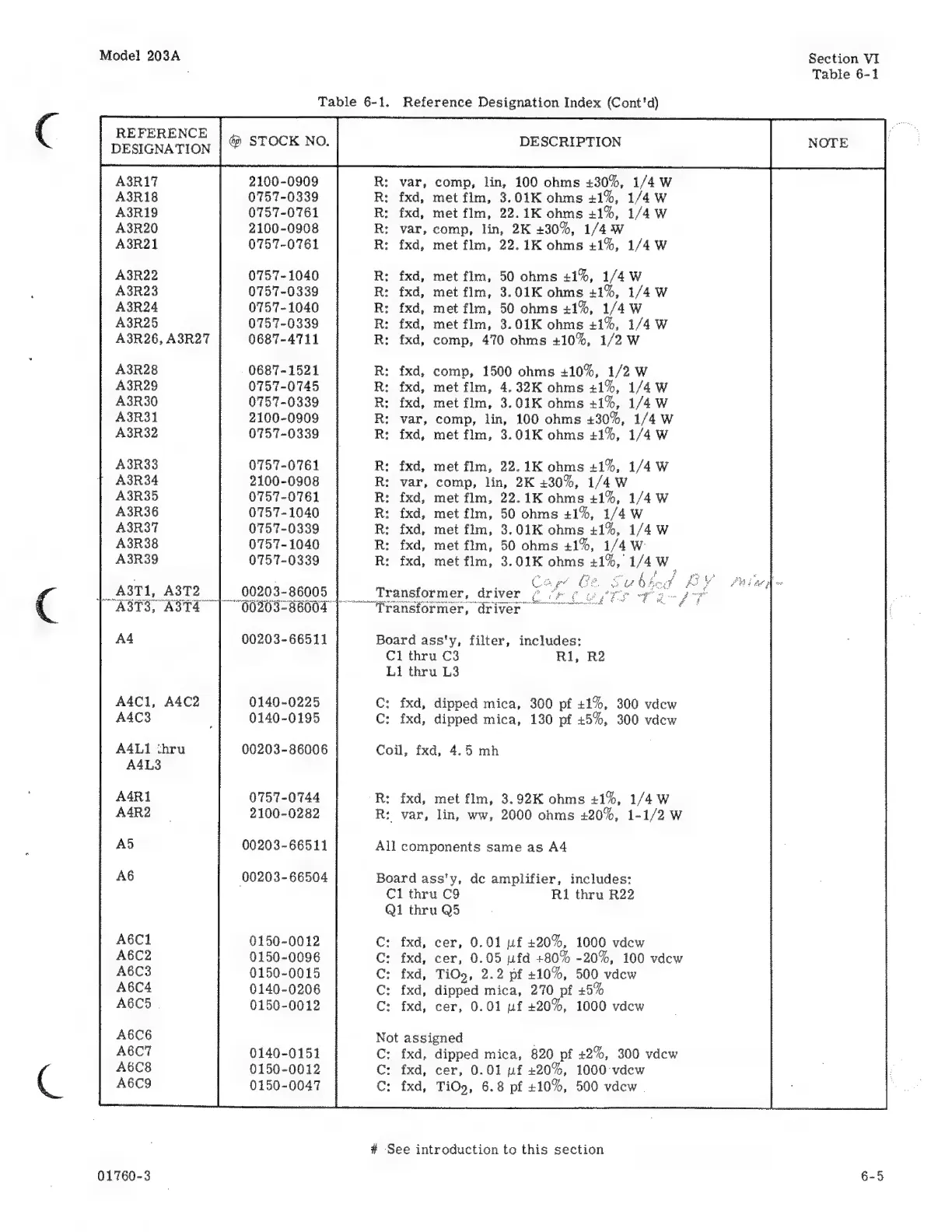

Table 6-1. Reference Designation Index (Cont'd)
REFERENCE
DESIGNATION
|
@
STOCK
NO.
DESCRIPTION
A3R17 2100-0909 var, comp, lin, 100 ohms +30%, 1/4 W
A3R18 0757-0339 fxd, met fim, 3.01K ohms +1%, 1/4 W
A3R19 0757-0761 fxd, met Пт, 22. 1K ohms +1%, 1/4 W
A3R20 2100-0908 var, comp, lin, 2K «309, 1/4 W
A3R21 0757-0161 fxd, met flm, 22. 1K ohms +1%, 1/4 W
A3R22 0757-1040
fxd, met fim, 50 ohms +1%, 1/4 W
A3R23 0757-0339 fxd, met flm, 3.01К ohms 41%, 1/4 W
A3R24 0757-1040 fxd, met flm, 50 ohms +1%, 1/4 \
A3R25 0757-0339 fxd, met fim, 3.01K ohms «19, 1/4 W
A3R26, A3R27 0687-4711 fxd, comp, 470 ohms +10%, 1/2 W
A3R28 . 0687-1521 fxd, comp, 1500 ohms «1095, 1/2 W
A3R29 0757-0745 fxd, met fim, 4. 32K ohms +1%, 1/4 W
A3R30 0751-0339 fxd, met fim, 3. 01K ohms +1%, 1/4 W
A3R31 2100-0909 var, comp, lin, 100 ohms «3075, 1/4 W
A3R32 0757-0339 fxd, met fim, 3.01K ohms 219, 1/4 W
A3R33 0757-0761 fxd, met flm, 22. ІК ohms +1%, 1/4 W
A3R34 2100-0908 var, comp, lin, 2K «3076, 1/4 W
A3R35 0757-0761 fxd, met fim, 22. ІК ohms 417, 1/4 W
A3R36 0757-1040 fxd, met fim, 50 ohms +1%, 1/4 W
A3R37 0757-0339 fxd, met fim, 3.01K ohms 219, 1/4 №
A3R38
0757-1040
fxd,
met
flm,
50
ohms
219,
1/4
УУ
A3R39 0757-0339
а ае ас
fxd, met flm, 3.01K ohms +1%, 1/4 W_
A3T1, A3T2
4 00203-86005 Transformer, driver
A3T3, АЗТ4
00203-86004 | ^ Transformer, driver
ў
А4 00203-66511 Board а55'у, filter, includes:
СІ thru C3 R1, R2
Li thru L3
А4С1, A4C2
A4C3
0140-0225
0140-0195
C: fxd, dipped mica, 300 pf +1%, 300 vdew
С: fxd, dipped mica, 130 pf +5%, 300 vdew
ААТА thru
A4L3
00203-86006 Coil, fxd, 4.5 mh
A4R1
A4R2
0757-0744
2100-0282
`В: fxd, met fim, 3.92К ohms +1%, 1/4 W
В: var, lin, ww, 2000 ohms +20%, 1-1/2 W
Аб
00203-66511 АП components same as А4
A6
00203-66504 Board ass'y, dc amplifier, includes:
C1 thru C9 R1 thru R22
Q1 thru Q5
0150-0012 C: fxd, сег, 0.01 uf «2076, 1000 уйсу
0150-0096 C: fxd, cer, 0.05 ufd +80% -20%, 100 уйсу
0150-0015 C: fxd, ТіО», 2.2 pf +10%, 500 уйсу
0140-0206 C: fxd, dipped mica, 270 pf +5%
0150-0012 C: fxd, cer, 0.01 uf +20%, 1000 vdew
Not assigned |
С: fxd, dipped mica, 820 pf +2%, 300 уйсу
С: fxd, cer, 0.01 uf +20%, 1000 vdew
C: fxd, TiOg, 6.8 pf +10%, 500 уйсу.
0140-0151
0150-0012
0150-0047
# See introduction (о this section
01760-3 6-5
