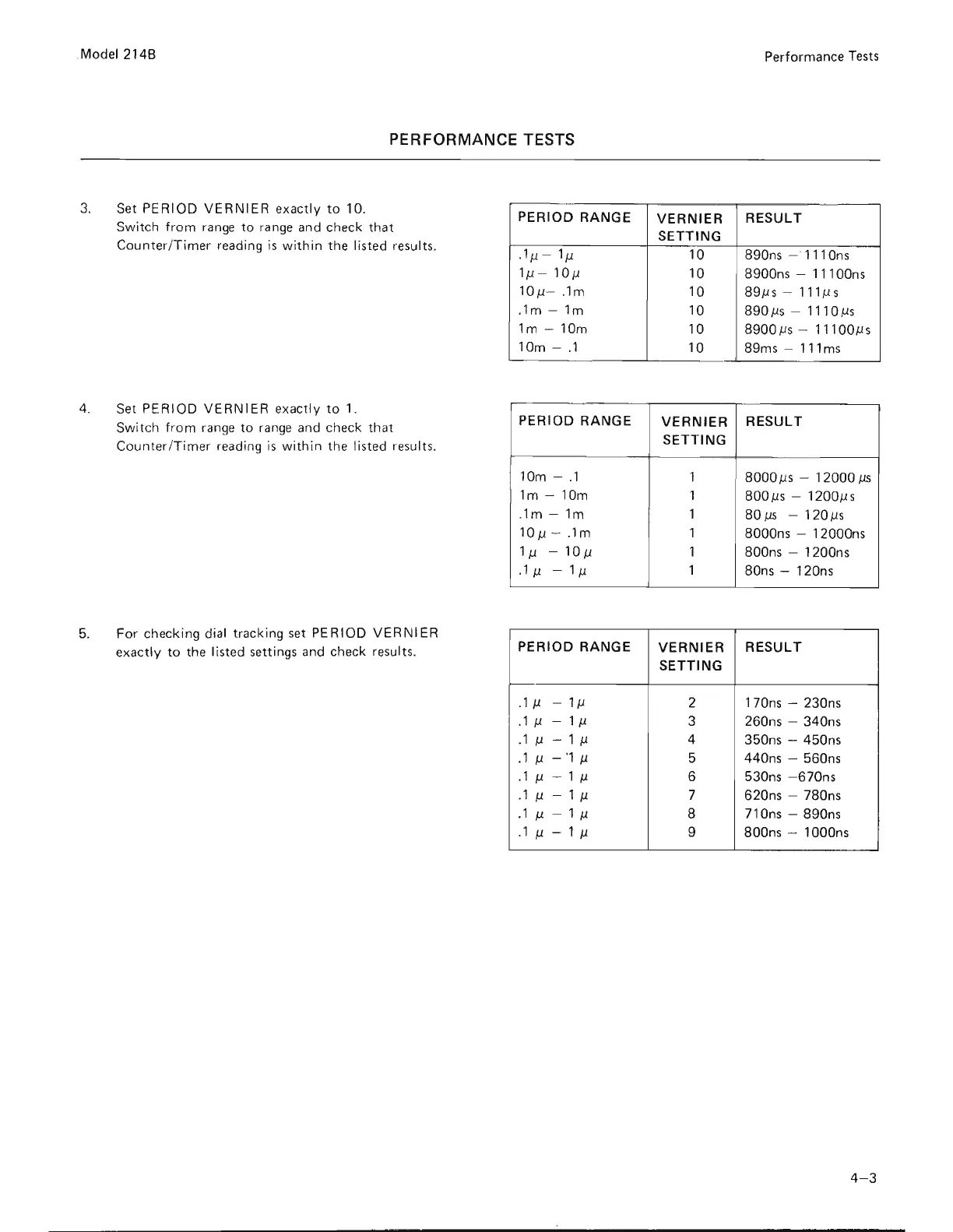

PERFORMANCE TESTS
3. Set PERIOD VERNIER exactly to 10.
Switch
from range to range and check that
Counter / Timer reading is within the listed results.
4.
Set PERIOD VERNIER exactly to 1.
Switch from range
to range and check that
CounterlTimer reading is within the listed resu lts.
5. For
checking dial tracking set PERIOD VERNIER
exactly to the listed settings and check results.
PERIOD RANG E
.1 J1
lJ1
lJ1-10J1
10J1- .1m
.1m - 1m
1m - 10m
10m
- .1
PERIOD RANGE
10m - .1
1m -
10m
.1m - 1m
10J1 - .1m
1 J1
- 10 J1
.1J1 - lf1
PERIOD RANGE
.1 f1 -1J1
.1 f1
-1f1
. 1f1 - 1f1
.1 f1 - '1 f1
. 1f1 - 1f1
.1f1-1f1
.1J1-1f1
. 1f1-1f1
Performance Tests
VERNIER
RESULT
SETTING
10
890ns - 111 Ons
10 8900ns - 11100ns
10
89J1s-111 J1s
10
890J1s - 111OJ1s
10
8900J1s - 11100J1s
10 89ms - 111 ms
VERNIER
RESULT
SETTING
1
8000 J1S - 1 2000 j1S
1
800 J1S - 1200J1 s
1
80j1S
- 120J1s
1
8000ns - 12000ns
1
800ns - 1200ns
1
80ns - 120ns
VERNIER
RESULT
SETTING
2 170ns - 230ns
3 260ns - 340ns
4
350ns - 450ns
5 440ns - 560ns
6 530ns -670ns
7 620ns - 780ns
8 710ns - 890ns
9 800ns - 1000ns
