Performance Tests

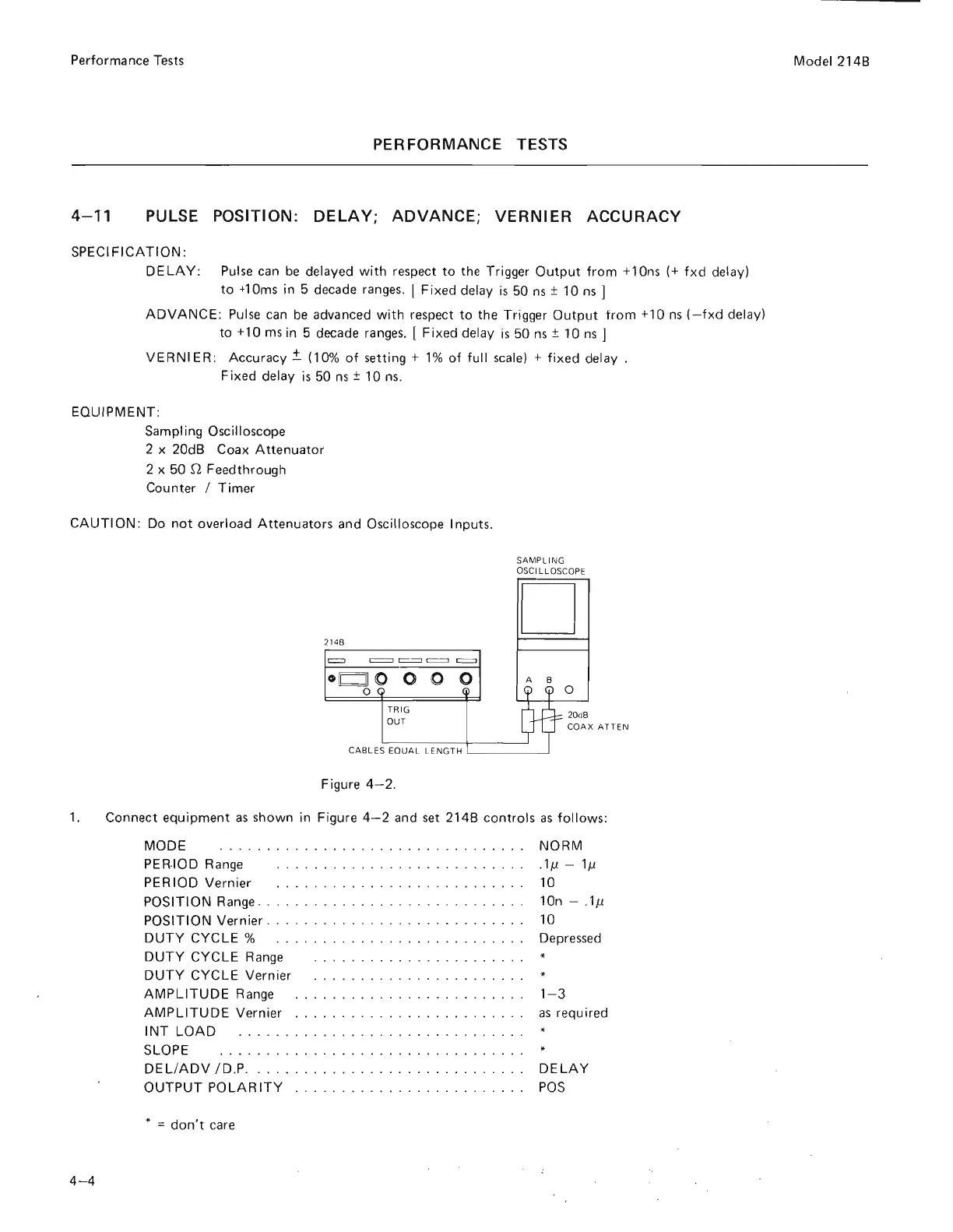

PERFORMANCE TESTS
4-11
PULSE POSITION: DELAY; ADVANCE; VERNIER ACCURACY
SPECIFICATION :
DELAY : Pulse can be delayed with respect to the Trigger Output from +10ns (+ fxd delay)
to +10ms in 5 decade ranges . [ Fixed delay is 50 ns ± 10 ns I
ADVANCE: Pulse can be advanced with respect to the Trigger Output from +10 ns (- f xd delay)
to +10
ms in 5 decade ranges. [ Fi xe d delay is 50 ns ± 10 ns J
VERNIER: Accuracy ±. (100 10 of setting + 1% of full scale) + fixed delay.
Fixed delay is 50 ns ± 10 ns.
EQUIPMENT :
Sampling Oscilloscope
2 x 20dB Coax
Attenuator
2 x 50 n Feedthrough
Counter /
Timer
CAUTION: Do not overload Attenuators and Oscilloscope Inputs.
214B
0 11 11 10 0 0 0
o
TRIG
OUT
SAMPLING
OSC I LLOSCO PE
D
A B
o
20dB
COAX AT TEN
CABLES EOUAL LE N GTH '-- ___ _
Figure 4-2.
1. Connect equipment as shown in Figure 4-2 and set 214B controls as follows:
MODE
PERIOD Range .
... ... . . . . . .. . .. . .. .. . . .. .
PERIOD Vernier
...... ... . .... . ..... .. . . . . .
POSITION Range
.. ... ...... . . . .. . . . .... . .... .
POSITION Vernier
.......... ..... . ... . .... . .. .
DUTY CYCLE % .... . ................. . ... .
DUTY CYCLE Range . .... . . . . .. ... .. .. .. .. .
DUTY CYCLE Vernier .... . ... . ......... . ... .
AMPLITUDE Range . ... . . . .. . . . . ... . .. ... . . .
AMPLITUDE Vernier .. ....... . .. . ........... .
INT LOAD ... .... .. .. . . . . ... . . . . .... . ... .
SLOPE
.. . . . ...... . ........ . .. . ....... . .
DEL/ADV / D.P .......... .. .. . ... . ...... . ... .
OUTPUT POLARITY
* = don't care
4- 4
NORM
.1p - 1p
10
10n -
.1p
10
Depressed
*
1- 3
as requ ired
DELAY
POS
Model 214B
