Model 214B

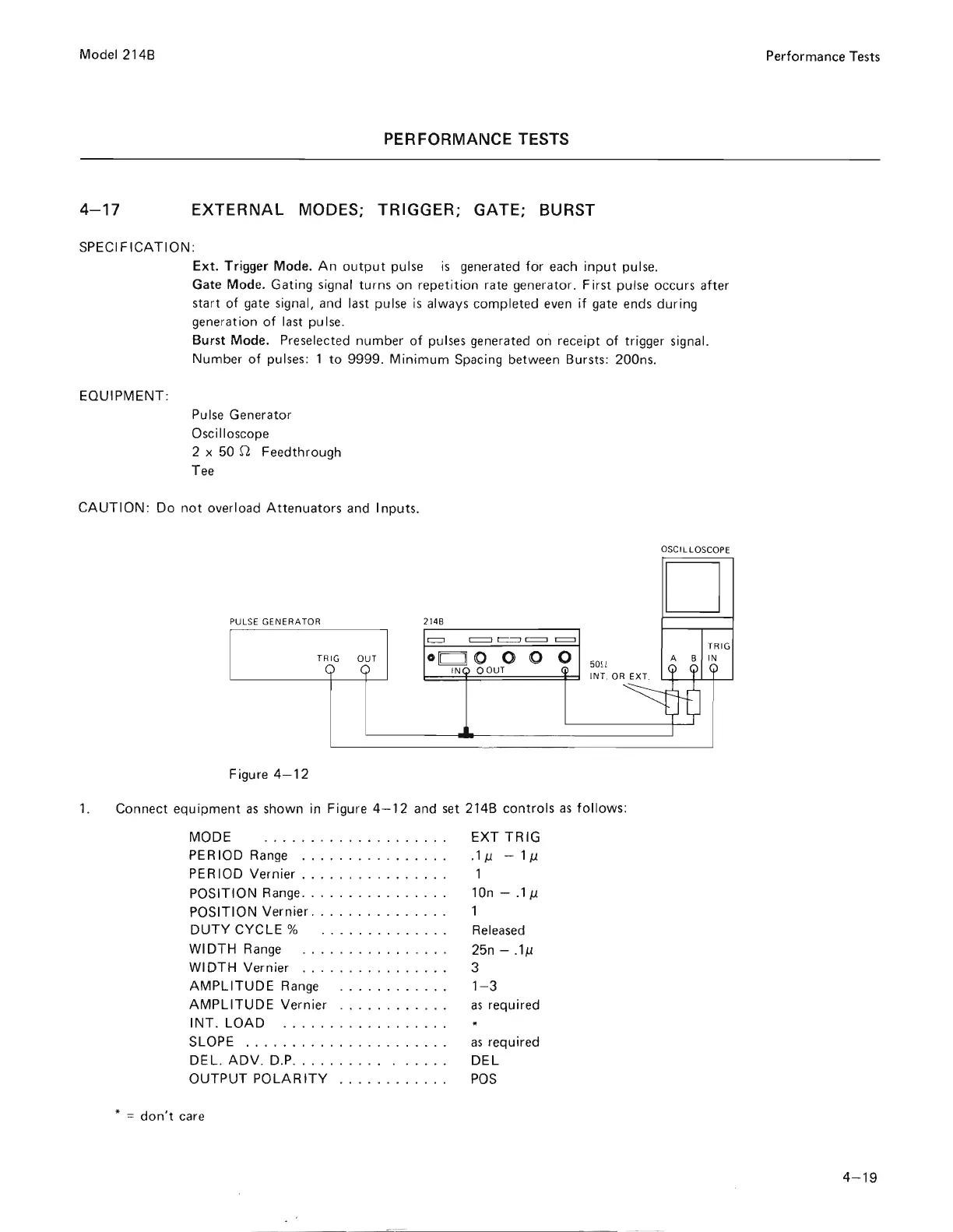

PERFORMANCE TESTS
4-17
EXTERNAL MODES; TRIGGER; GATE; BURST
SPECIFICATION :
EQUIPMENT:
Ext. Trigger Mode. An output pulse is generated fo r each input pulse.
Gate Mode. Gating signal turn s on repetition rate generator. First pulse occurs after
start
of gate signal, and la st pulse is always completed even if gate ends during
generation
of last pu Ise .
Burst Mode. Preselected number
of pulses generated on receipt of trigger signal.
Number
of pulses : 1 to 9999. Minimum Spacing between Bursts: 200ns.
Pulse Generator
Oscilloscope
2
x 50 Sl Feedthrough
Tee
CAUTION : Do not overload Attenuators and Inputs.
OSC IL LOSCOPE
D
PUL SE GEN ER ATOR 2146
=
r:=:::::l c:::::J C===::l c::::::::J
TRIG
T~G
OUT
0 11 11 0
0 0
0
sou
!~ 9
IN
C
IN
OOUT
INT. OR EXT .
(
~
I
Figure 4-12
1. Connect equipment as shown in Figure 4- 12 and set 214B controls as follows:
MODE
PERIOD Range ..... .. . ..... . . .
PERIOD Vernier . .
............. .
POSITION
Range . . ... .... . .. . .. .
POSITION Vernier
... ........... .
DUTY CYCLE %
WIDTH Range
WIDTH Vernier . . .. .. ... . .... . .
AMPLITUDE Range . . .. . .. . ... .
AMPLITUDE Vernier ...... . .. .. .
INT . LOAD ... ... .. ... ... . . . .
SLOPE
...... .. . .. .. . ....... .
DEL. ADV . D.P . .. ... . .... .... .
OUTPUT POLARITY
* = don't care
EXT TRIG
.1 J1 - 1J1
1
10n -
.1 J1
1
Released
25n - .1p
3
1- 3
as required
as required
DEL
POS
Performance Tests
4-19
