Adjustments

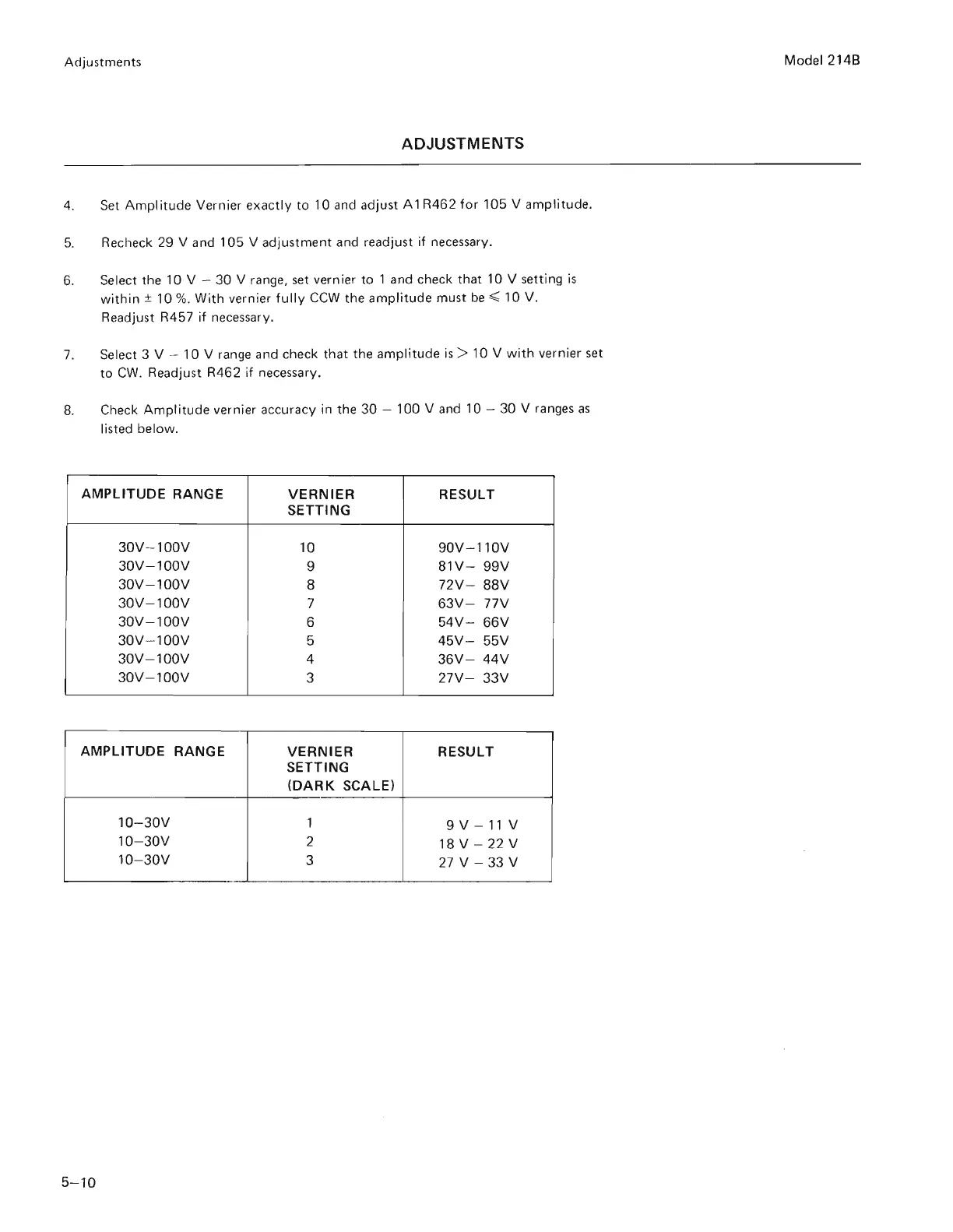

ADJUSTMENTS
4. Set Amplitude Vernier exactly to 10 and adjust A1 R462 for 105 V amplitude.
5. Recheck 29 V and
105 V adjustment and readjust if necessary.
6. Select the 10 V - 30 V range, set vernier to 1 and check that 10 V setting is
within ± 10 %. With vernier fully CCW the amplitude must be ";;; 1 0 V.
Readjust R457
if necessary.
7. Select 3 V - 10 V range and check that the amplitude is> 10 V with vernier set
to CW o Readjust R462 if necessary.
8. Check Amplitude vernier accuracy in the 30 - 100 V and 10 - 30 V ranges as
listed below.
AMPLITUDE RANGE
VERNIER RESULT
SETTING
30V - 100V
10 90V-110V
30V-100V
9
81V- 99V
30V-100V
8
72V- 88V
30V-100V
7
63V- nv
30V-100V
6 54V- 66V
30V - 100V
5
45V- 55V
30V-100V
4 36V- 44V
30V-100V
3 27V- 33V
AMPLITUDE RANGE
VERNIER
RESULT
SETTING
(DARK SCALE)
10-30V
1
9V-11 V
10-30V
2
18 V - 22 V
10-30V
3
27 V - 33 V
5-10
._ -_ . . __ .... _. _._------- - - -- - ....
Model 214B
