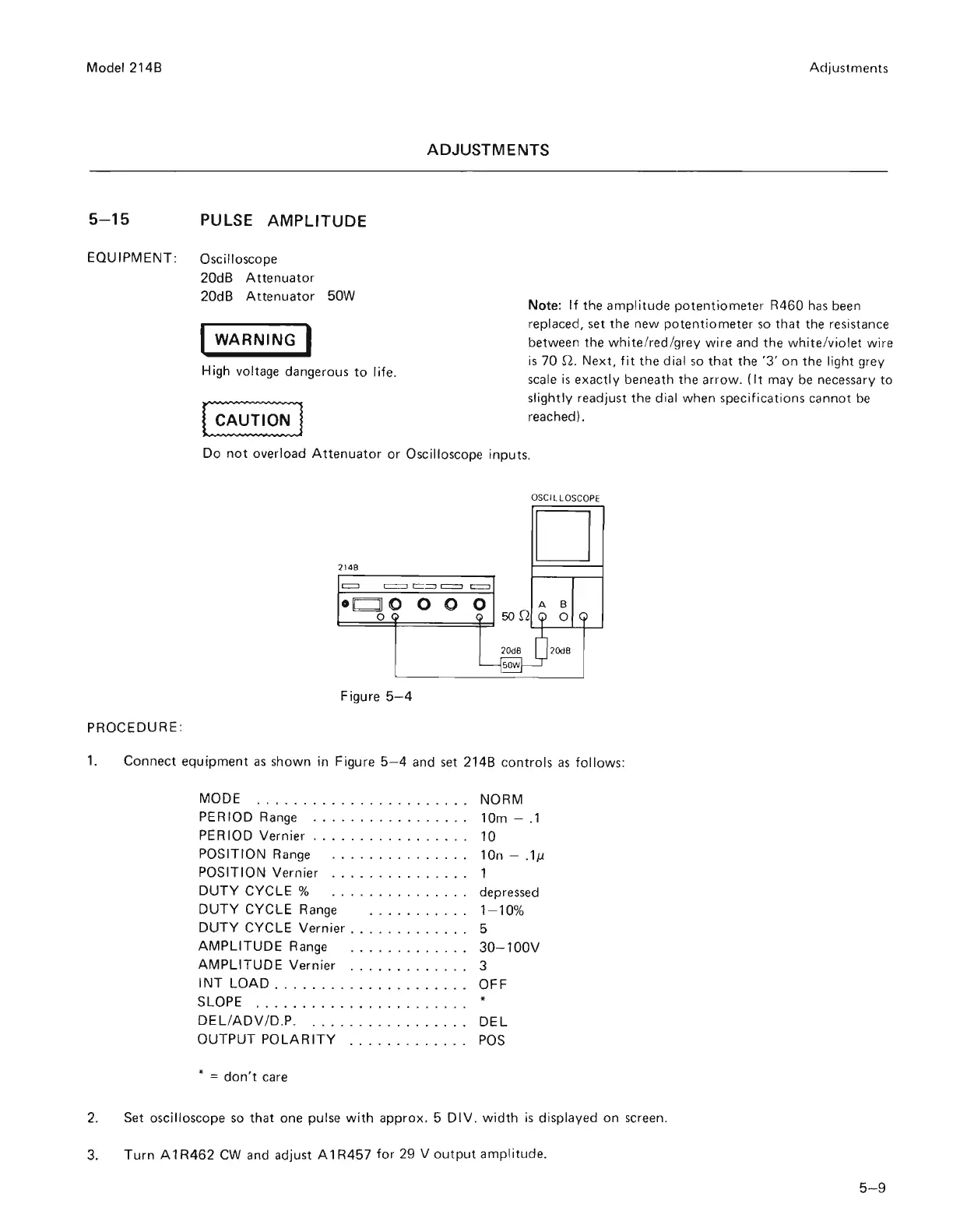

Model 214B
Adju
stments
ADJUSTMENTS
5-15
PULSE AMPLITUDE
EQUIPMENT
: Oscilloscope
PROCEDURE
:
20dB A
ttenuator
20dB
Attenuator
50W
I WARNING I
High voltage dangerous
to
life.
Note:
If
the
amplitude
potentiometer
R460
has
been
replaced,
set
the
new
potentiometer
so
that
the resistance
between the
white
/
red
/grey wire
and
the
white
/violet wire
is
70 Q. Next,
fit
the dial
so
that
the
'3'
on
the light g
re
y
scale
is
exactly
beneath the arrow.
(It
may
be
necessary to
slightly readjust the dial when specifications cannot
be
reached) .
Do
not
overload
Attenuator
or Oscilloscope inputs.
OSCI
LL
OSCO
PE
D
2
14B
=
c::=:=I
C=::J
~
~
oCJjO
o 0
0
A B
0
50 Q
q:>
0 (
W
2~B
50
W
Figure
5-4
1.
Connect equipment
as
shown in Figure 5- 4 and
set
2148 controls
as
follows
:
MODE
NORM
PERIOD
Range
.........
.
..
....
. 10m - .1
PERIOD Vernier .
.....
...
.
......
. 10
POSITION
Range
..
. .
...
...
. .
..
. 10n -
.1/1
POSITION Vernier
....
.
.. ..
..
.. ..
1
DUTY
CYCLE % .
..
.....
.
.....
. depressed
DUTY
CYCLE
Range
. . . . . . . . . . . 1- 10%
DUTY
CYCLE Vernier . . . . . . . . . . .
..
5
AMPLITUDE
Range
.......
.
..
. . .
30-100V
AMPLITUDE
Vernier .
.....
..
....
. 3
INT
LOAD
..
....
....
.. ..
.
...
...
OFF
SLOPE .
.........
.
.....
..
.
....
*
DELIADV
/D.P. .
....
.
.....
.
.....
DEL
OUTPUT
POLARITY
....
......
...
POS
* =
don't
care
2. Set oscilloscope
so
that
one pulse
with
approx. 5
DIV
.
width
is
displayed on screen .
3.
Turn
A 1
R462
CW
and adjust A 1 R457
for
29 V
output
amplitude.
5
-9
Scans by Artekmedia => 2009
