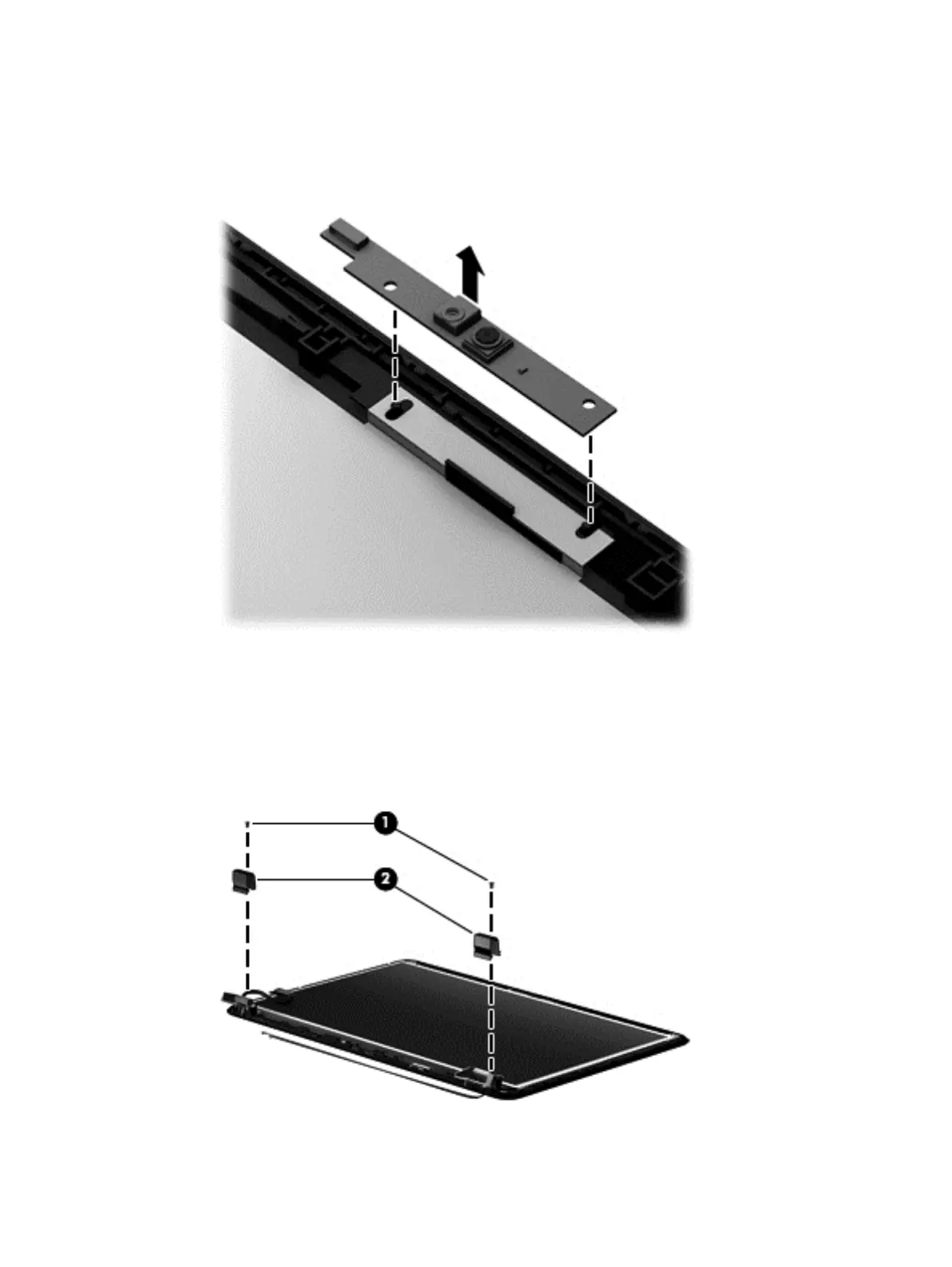

e. Remove the webcam/microphone module. (The module is attached to the display enclosure
with double-sided tape.)
3. To remove the hinge covers:
a. Position the display assembly with the bottom edge toward you.
b. Remove the two Phillips PM2.5×4.0 screws (1) that secure the top hinge covers to the
display enclosure, and then remove the top hinge covers (2).
98 Chapter 4 Removal and replacement procedures
