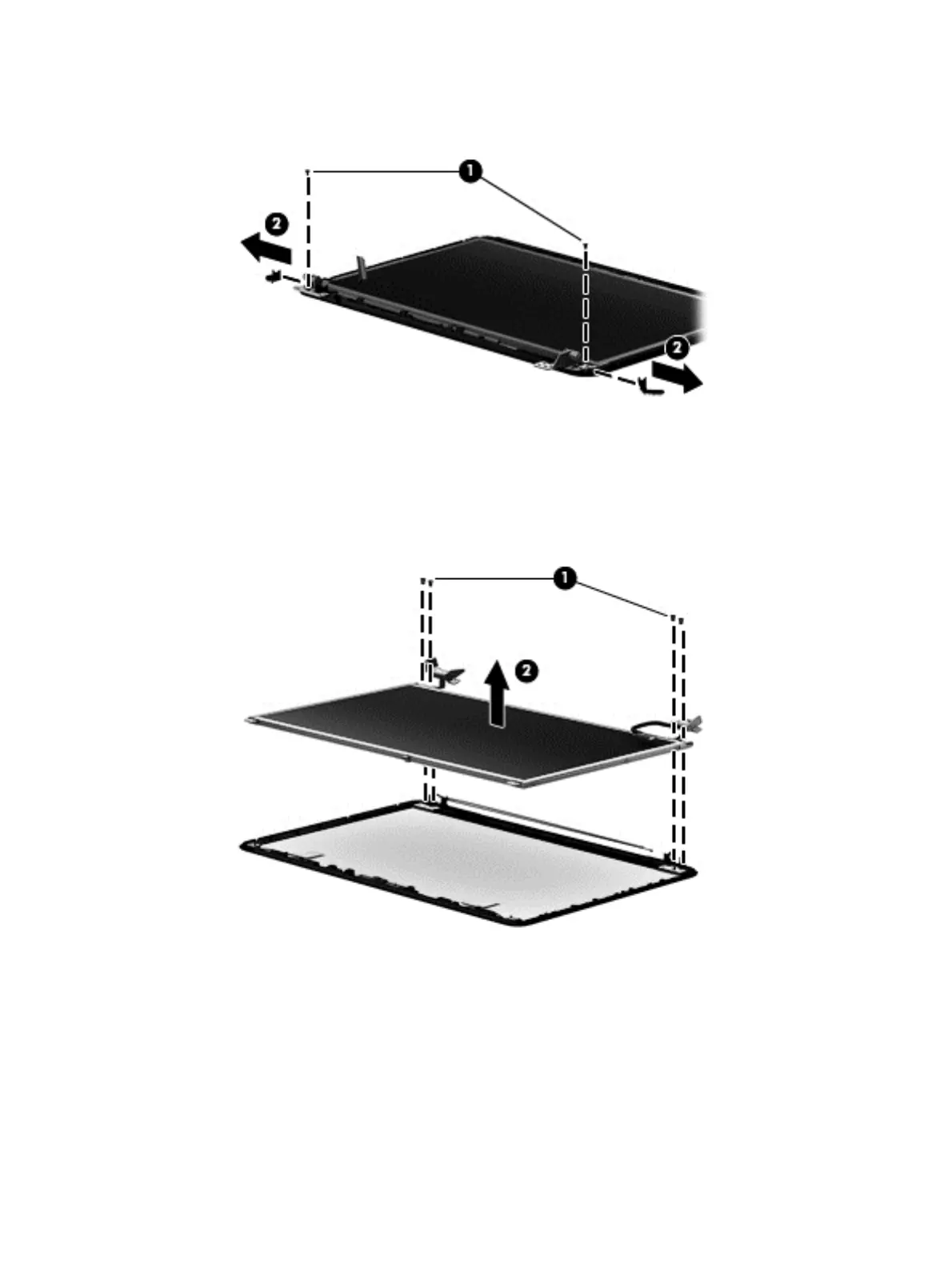

c. Remove the two Phillips PM2.0×3.0 screws (1) that secure the side hinge covers to the
display enclosure, and then remove the side hinge covers (2).
4. To remove the display panel, cable, and hinges:
a. Position the display assembly with the top edge toward you.
b. Remove the four Phillips PM2.5×4.0 screws (1) that secure the display panel to the
enclosure, and then remove the display panel (2) from the enclosure.
Component replacement procedures
99
