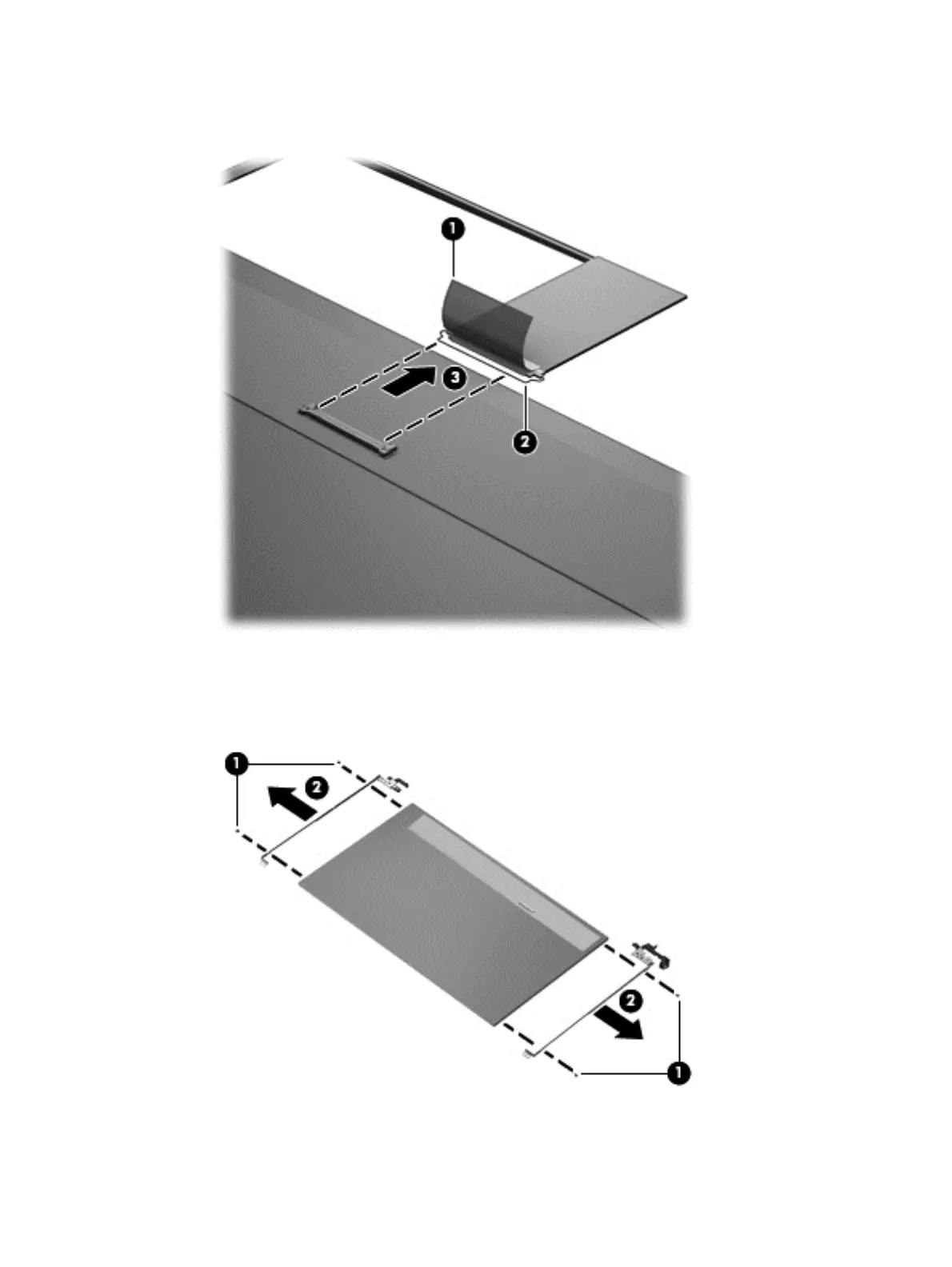

c. On the back of the display panel, release the adhesive strip (1) that secures the display
panel cable to the display panel, and then disconnect (2) and remove (3) the cable.
d. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display hinges to
the display panel.
e. Remove the display hinges (2).
100 Chapter 4 Removal and replacement procedures
