To remove the system board:

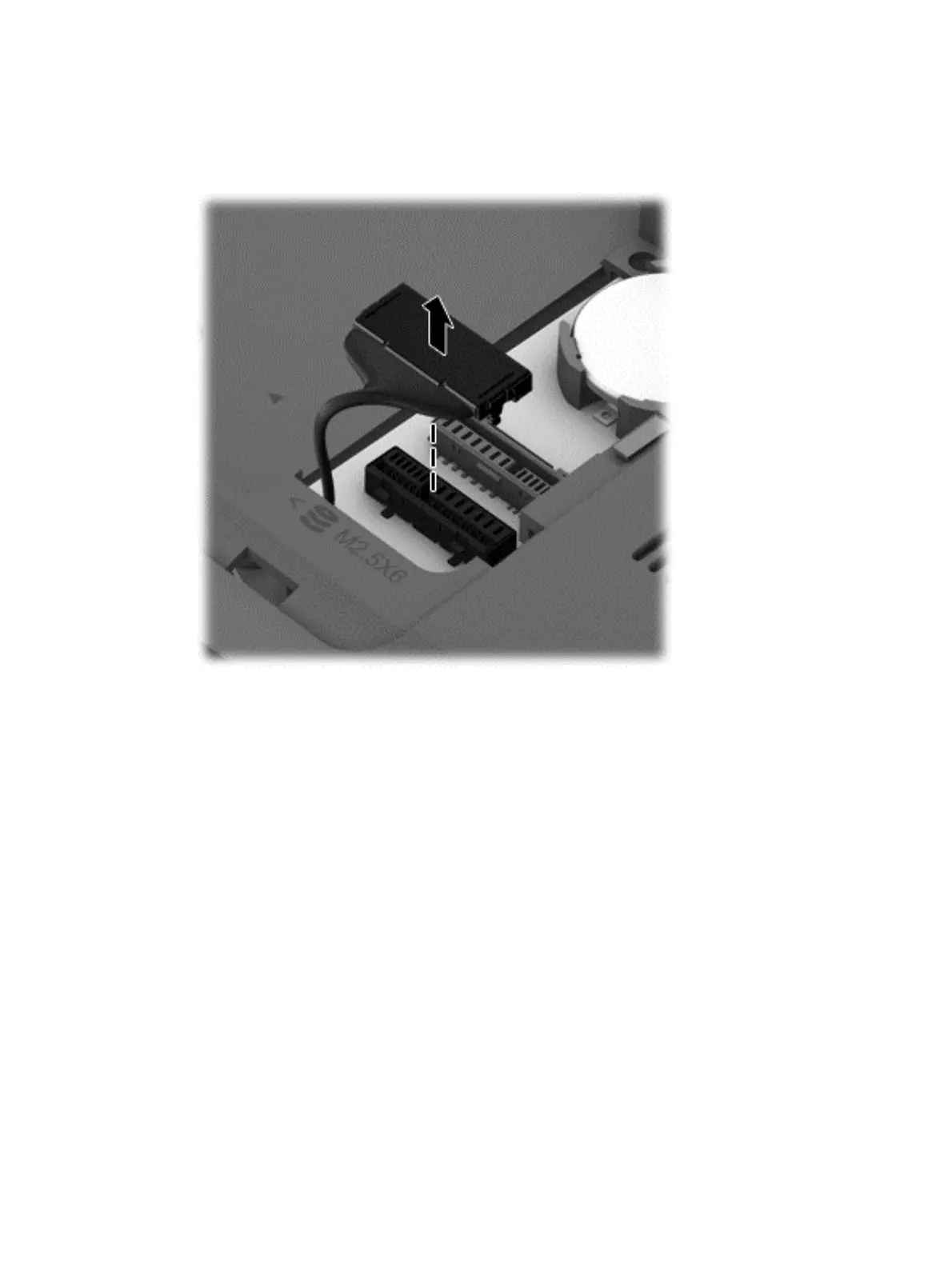

1. Close the computer, turn it upside down, and then disconnect the optical drive connector cable
from the system board.
2. Turn the computer back over, open it, and then remove the two Phillips PM2.5×4.0 screws (1)
that secure the system board to the base enclosure.
Component replacement procedures
105
