HP 2530-8G-PoE+ User Manual

2-22
Installing the Switch
Sample Network Topologies
Sample Network Topologies
This section shows a few sample network topologies for implementing the
HP 2530 Switches. For more topology information, see the HP networking
products Web site, www.hp.com/networking.
As a Desktop Switch Implementing PoE

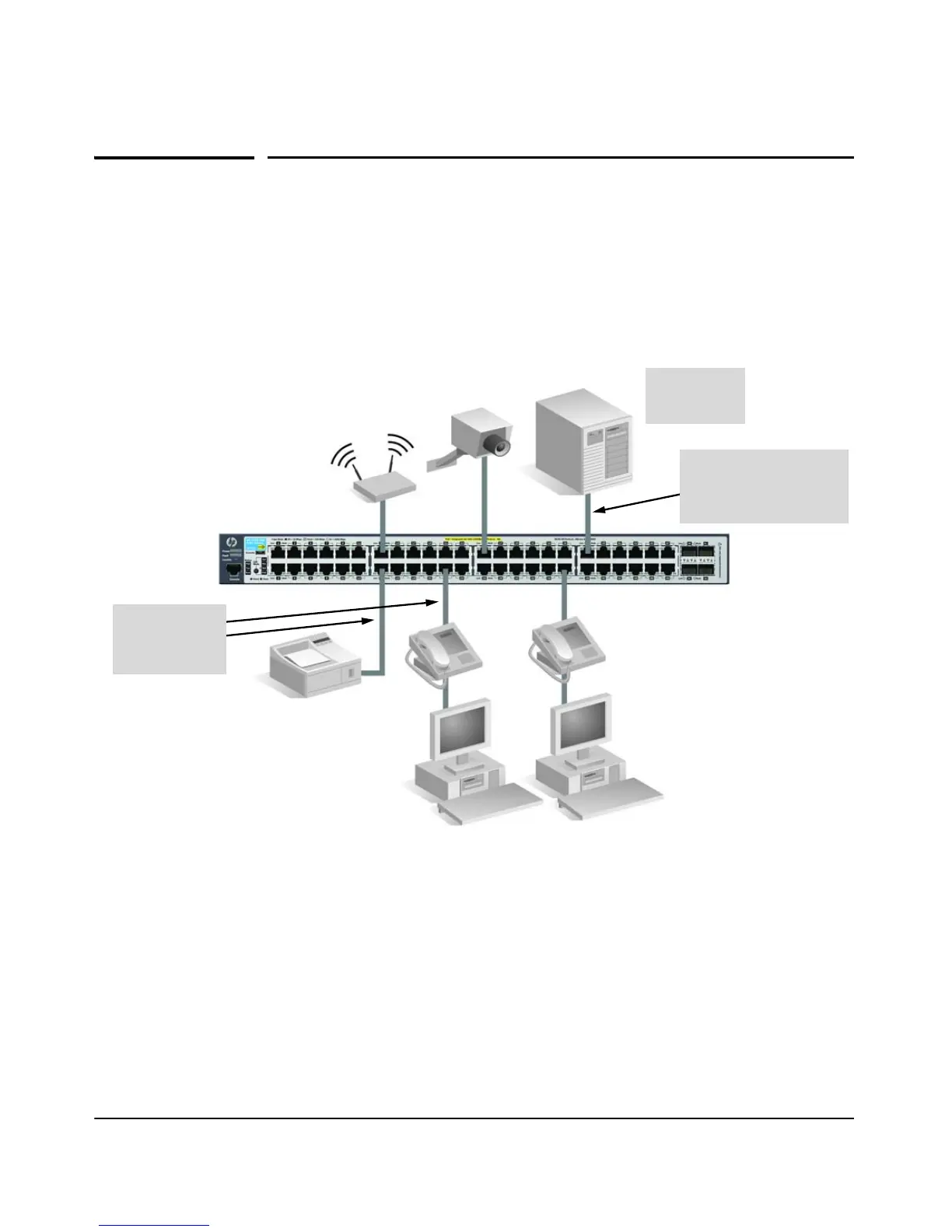

Figure 2-12. Basic desktop configuration
The HP 2530 PoE+ switches are designed to be used as desktop switches to
which end nodes, printers and other peripherals, and servers are directly
connected, as shown in the above illustration. The switches can also supply
PoE+ power to end devices such as IP telephones.
HP 2530-48G-PoE+
Twisted-pair
straight-through
or crossover
cables
Server with
Gigabit
Ethernet NIC
Category 5e twisted-pair
straight-through or
crossover cable for 1000
Mbps connection to server

HP 2530-8G-PoE+ Specifications

General

Product Type	Switch
PoE Support	Yes
Switching Capacity	16 Gbps
Forwarding Rate	11.9 Mpps
Layer	Layer 2
PoE power	15.4W per port
Input voltage	100-240V AC
MAC Address Table Size	8000 entries
Power Supply	Internal
Operating Temperature	32°F to 113°F (0°C to 45°C)
Operating Humidity	10% to 90% non-condensing
Management	SNMP
Memory and processor	16MB Flash
Jumbo Frame Support	Yes
Ports	8 x 10/100/1000Base-T
Latency	Less than 5 µs
