Illustrated parts catalog

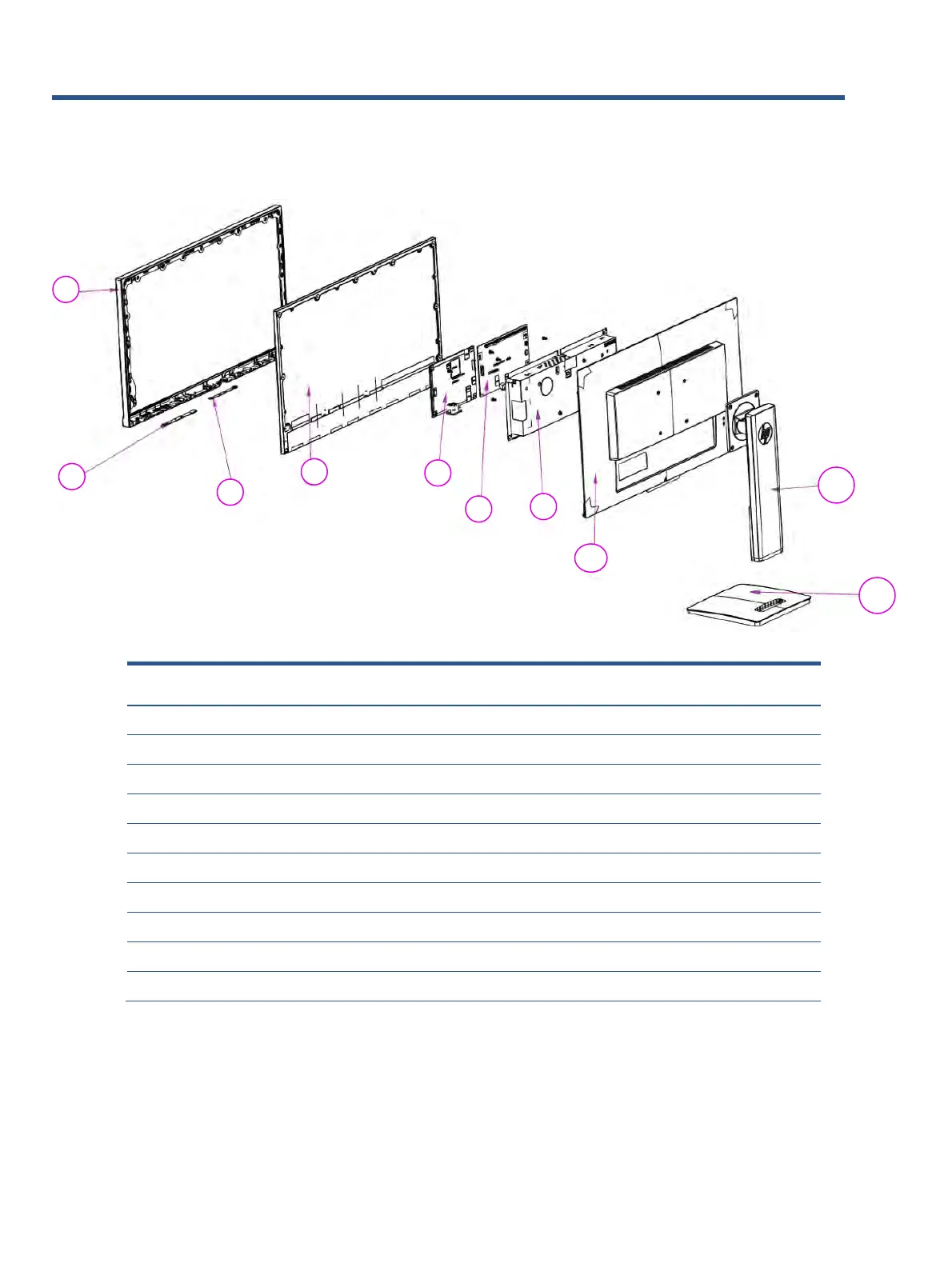

To identify the monitor major components, use this illustration and table.
Table 2-1: Monitor major components and their descriptions
Item Description Qty
1
ASSY MF 27XQ
1
2 PCBA CTRL BD 27XQ 1
3
PCBA LENS BD SMD 27XQ
1
4 PANEL 1
5
PCBA IF BD
1
6 PCBA SPS BD 1
7
SHIELDING
1
8 ASSY RC 27XQ 1
9
ASSY COLUMN 27XQ
1
10 ASSY BASE 27XQ
1
2
3
9
4
5
6
7
8
10
