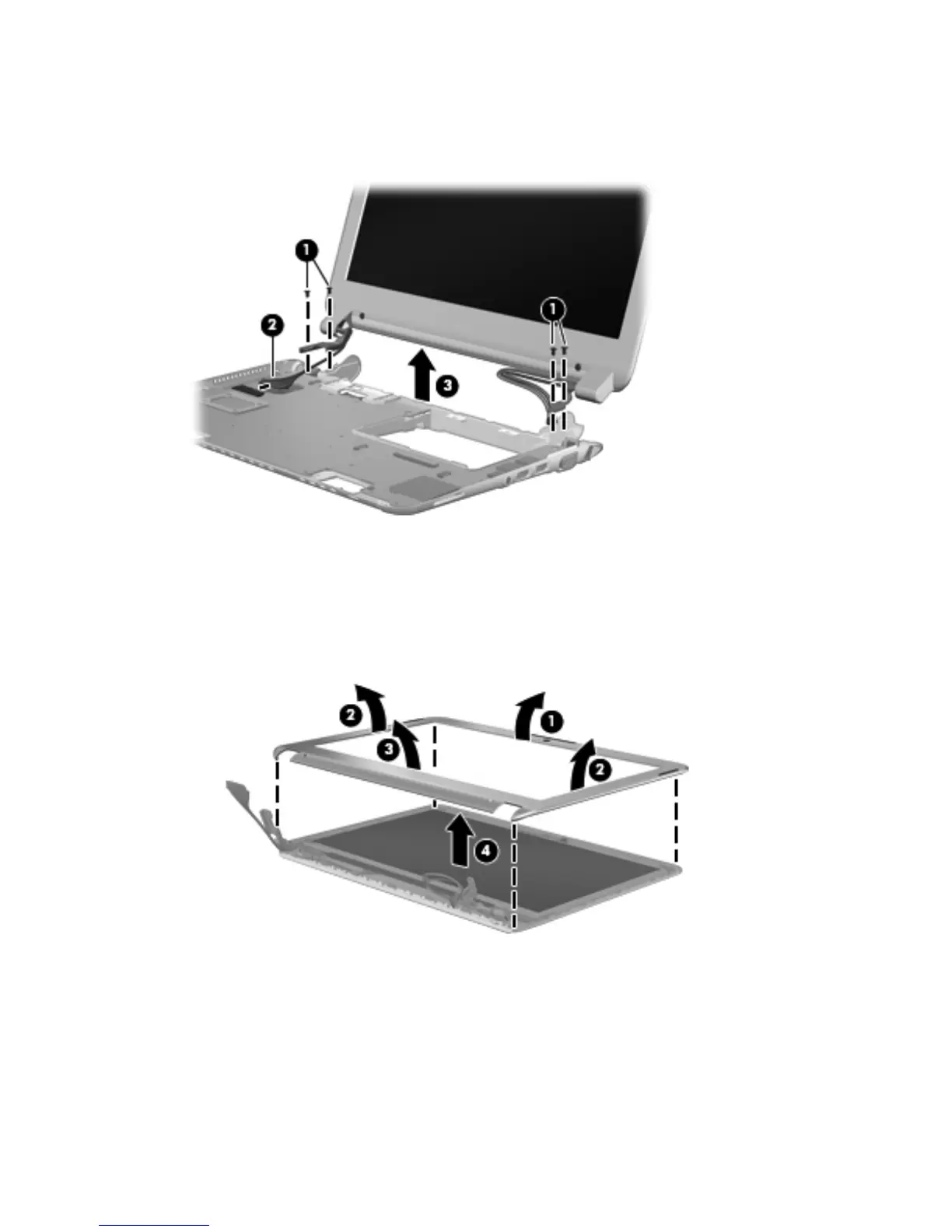

6. Slide the display panel cable (2) back toward the display assembly while lifting the display
assembly (3) straight up to remove it.
7. Lift the display assembly (3) straight up and remove it.
8. If it is necessary to replace the display bezel or any of the display assembly internal
components:
a. Flex the inside edges of the top edge (1), the left and right sides (2), and the bottom edge
(3) of the display bezel until the bezel disengages from the display enclosure.
b. Lift up and remove the display bezel (4).
Reverse this procedure to install the display bezel.
9. If it is necessary to replace the webcam module:
a. Lift the webcam module straight up (1) to release the adhesive material from the display
enclosure.
52 Chapter 4 Removal and replacement procedures ENWW
