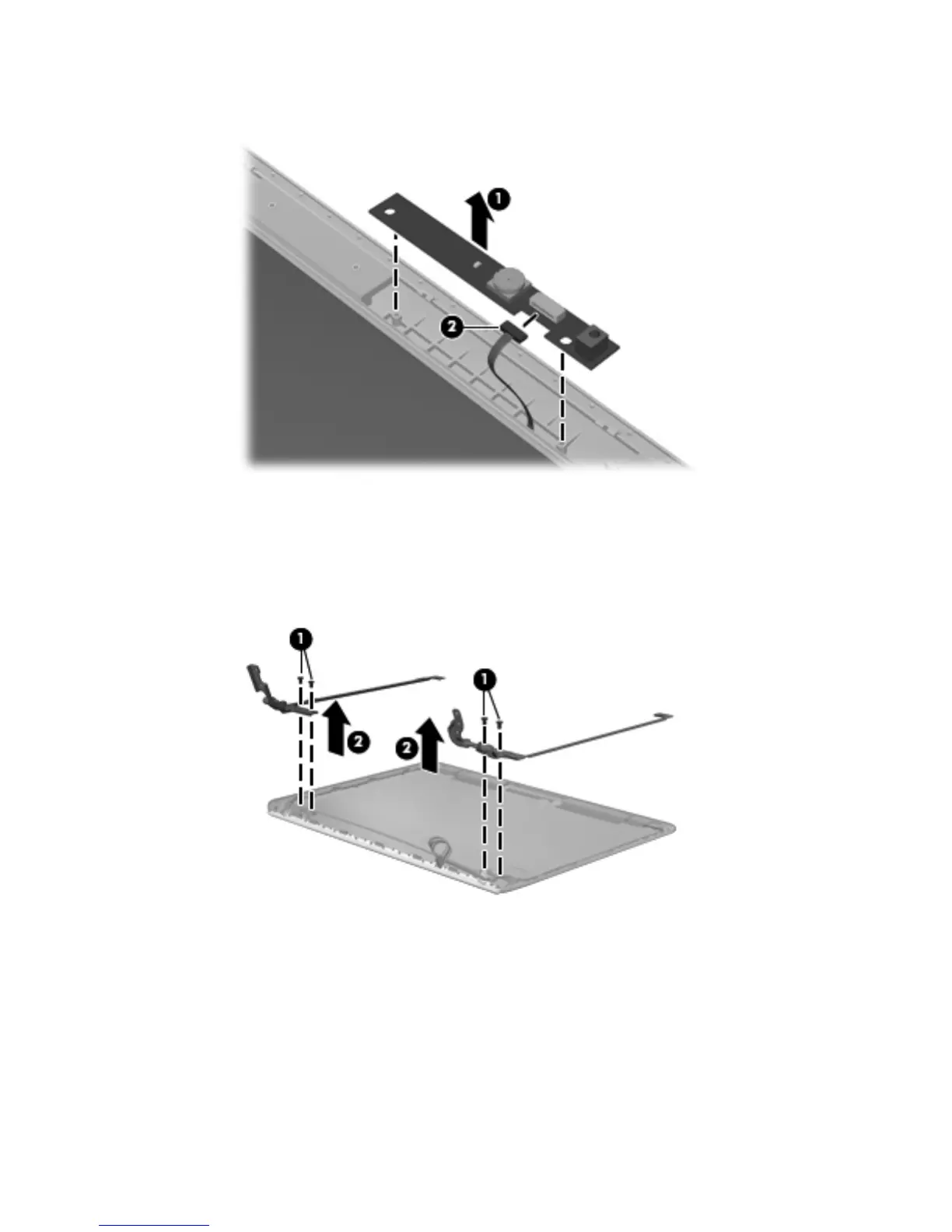

b. Disconnect the webcam cable (2) from the webcam module.
Reverse this procedure to install the webcam module.
10. If it is necessary to replace the display panel:
a. Remove the 4 screws (1) that secure the display hinge brackets to the display panel.
b. Lift up and remove the display hinge brackets (2) from the display panel.
c. Lift the display panel up at a 45-degree angle (1), and then lift straight up (2) to remove it.
ENWW Component replacement procedures 53
