HP 33120A User Manual

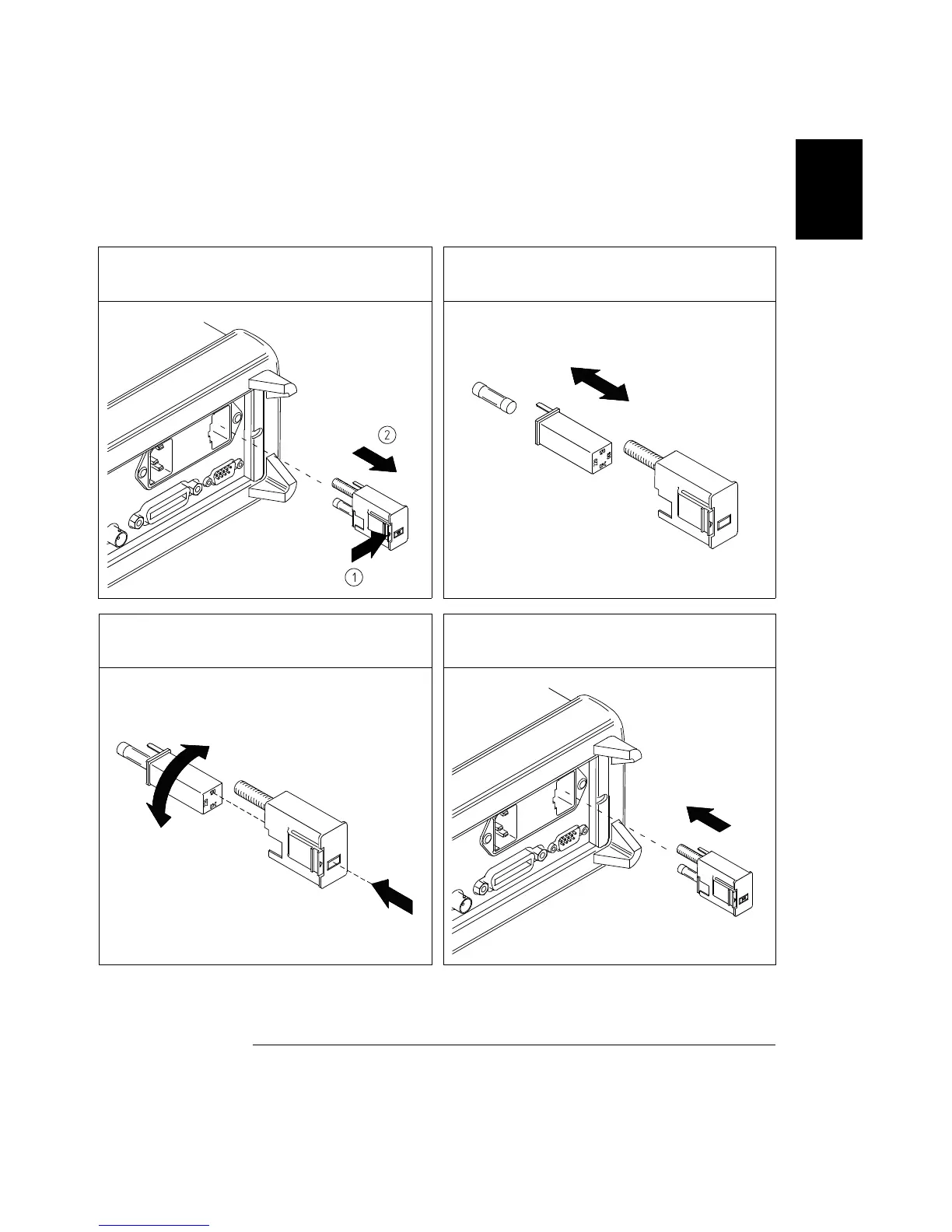

1 Remove the power cord. Remove the
fuse-holder assembly from the rear panel.
2 Remove the line-voltage selector from
the assembly.
3 Rotate the line-voltage selector until the
correct voltage appears in the window.
4 Replace the fuse-holder assembly in
the rear panel.
Verify that the correct line voltage is selected and the power-line fuse is good.
Fuse: 500 mAT (for all line voltages)
HP Part Number: 2110-0458
100, 120, 220 (230), or 240 Vac
1
Chapter 1 Quick Start
If the function generator does not turn on
17

HP 33120A Specifications

General

Frequency Range	100 µHz to 15 MHz
Waveforms	Sine, Square, Triangle, Ramp, Arbitrary
Amplitude Range	10 mVpp to 10 Vpp into 50 Ohms
Output Impedance	50 Ohms
Interface	GPIB
Function Generator Type	Arbitrary
Power Requirements	100/120/220/240 VAC ±10%, 50/60 Hz, 60 VA max
