HP 33120A - Chapter 2 Front-Panel Menu Operation to Output a Burst Waveform

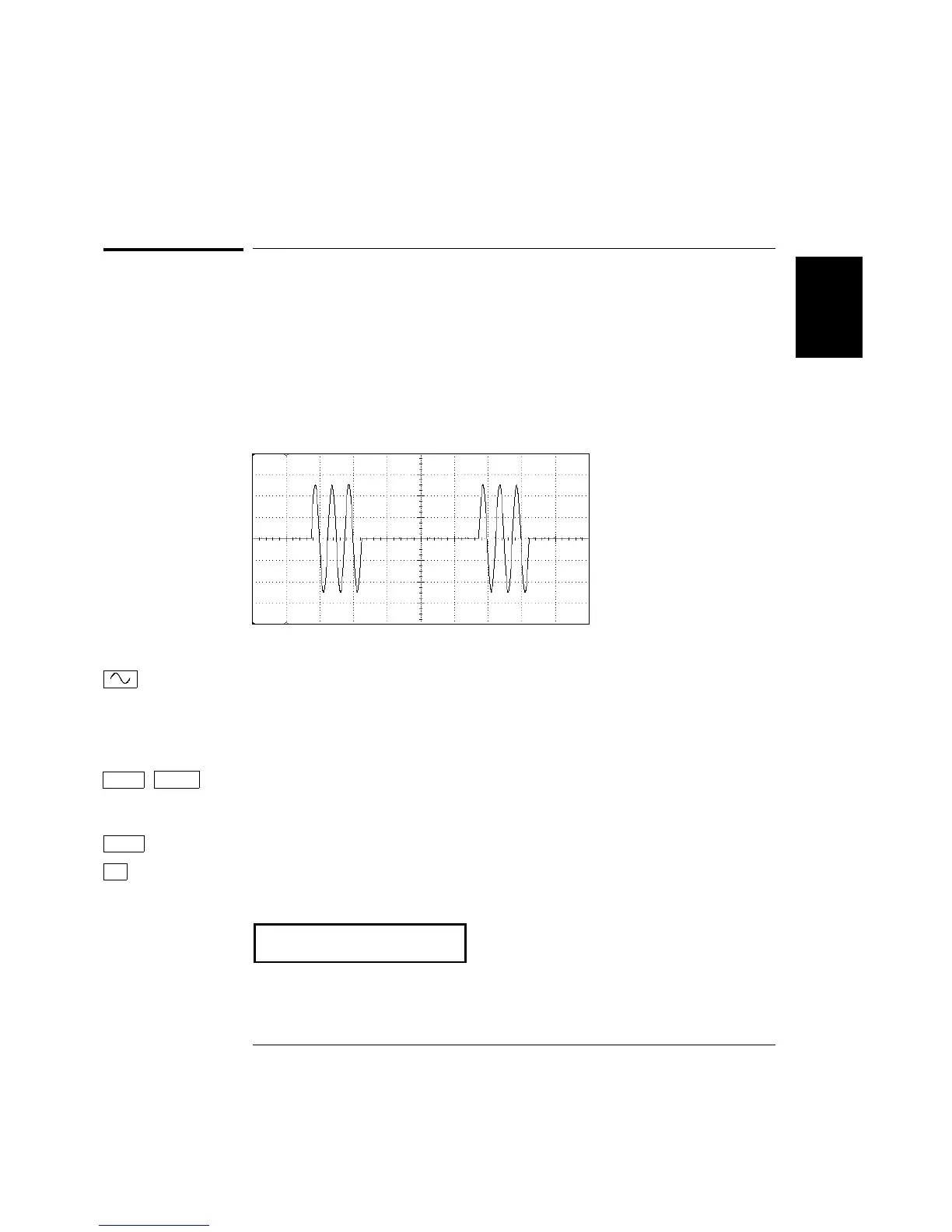

To output a burst waveform
You can configure the function generator to output a waveform with a
specified number of cycles, called a burst. You can output the burst at a
rate determined by the internal rate generator or the signal level on the
rear-panel Ext Trig terminal. For this example, you will output a
three-cycle sine wave. You will not change the other parameters from
their default settings: internal burst source, 0 degree starting phase,
and 100 Hz burst rate.
1 Select the function, frequency, and amplitude for the burst.
For bursts, you can select sine, square, triangle, ramp, or arbitrary
waveforms. For this example, select a
1 kHz sine wave with an output
amplitude of
5 Vpp.
2 Enable the burst mode.
Notice that the
Burst annunciator turns on.
3 Use the menu to set the burst count.
After you enable the burst mode, the “recall menu” key will
automatically take you to the
BURST CNT command in the MOD MENU.
4: BURST CNT
Burst
Shift
Recall Menu
Shift
<
2
Chapter 2 Front-Panel Menu Operation
To output a burst waveform
47
