The Front-Panel Menu at a Glance

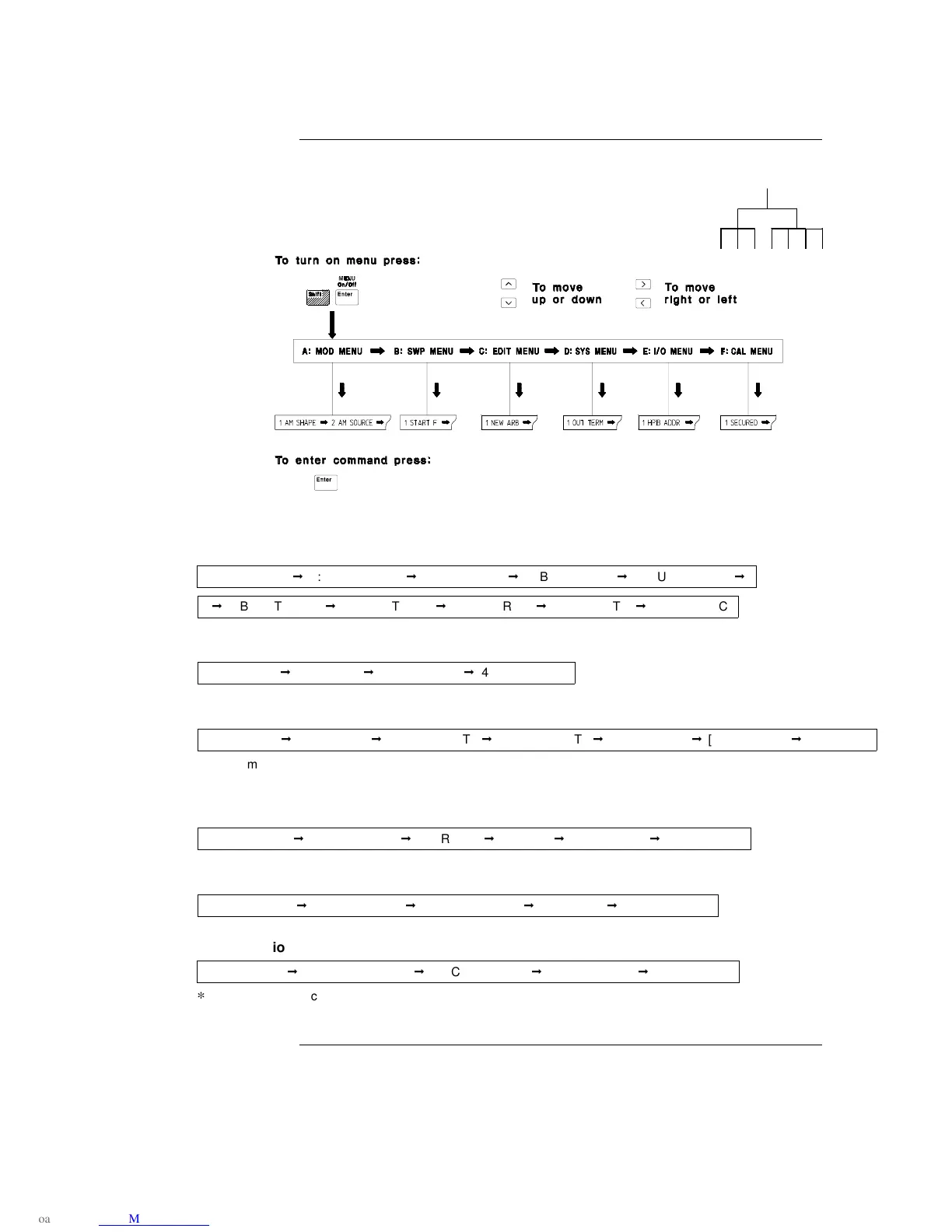

The menu is organized in a top-down tree structure with three levels.
B: SWP (Sweep) MENU
1: START F
2: STOP F
3: SWP TIME
4: SWP MODE
A: MODulation MENU
1: AM SHAPE
2: AM SOURCE
3: FM SHAPE
4: BURST CNT
5: BURST RATE
6: BURST PHAS
7: BURST SRC
8: FSK FREQ
9: FSK RATE
10: FSK SRC
C: EDIT MENU
*
1: NEW ARB
[ 2: POINTS ]
[ 3: LINE EDIT ]
[ 4: POINT EDIT ]
[ 5: INVERT ]
[ 6: SAVE AS ]
7: DELETE
*
The commands enclosed in square brackets ( [ ] ) are “hidden” until you make a selection from the
NEW ARB command to initiate a new edit session.
D: SYStem MENU
1: OUT TERM
2: POWER ON
3: ERROR
4: TEST
5: COMMA
6: REVISION
F: CALibration MENU
*
1: SECURED
[ 1: UNSECURED ]
[ 2: CALIBRATE ]
3: CAL COUNT
4: MESSAGE
*
The commands enclosed in square brackets ( [ ] ) are “hidden” unless the function generator
is UNSECURED for calibration.
E: Input / Output MENU
1: HPIB ADDR
2: INTERFACE
3: BAUD RATE
4: PARITY
5: LANGUAGE
