HP 340 G1 - Page 62

9.

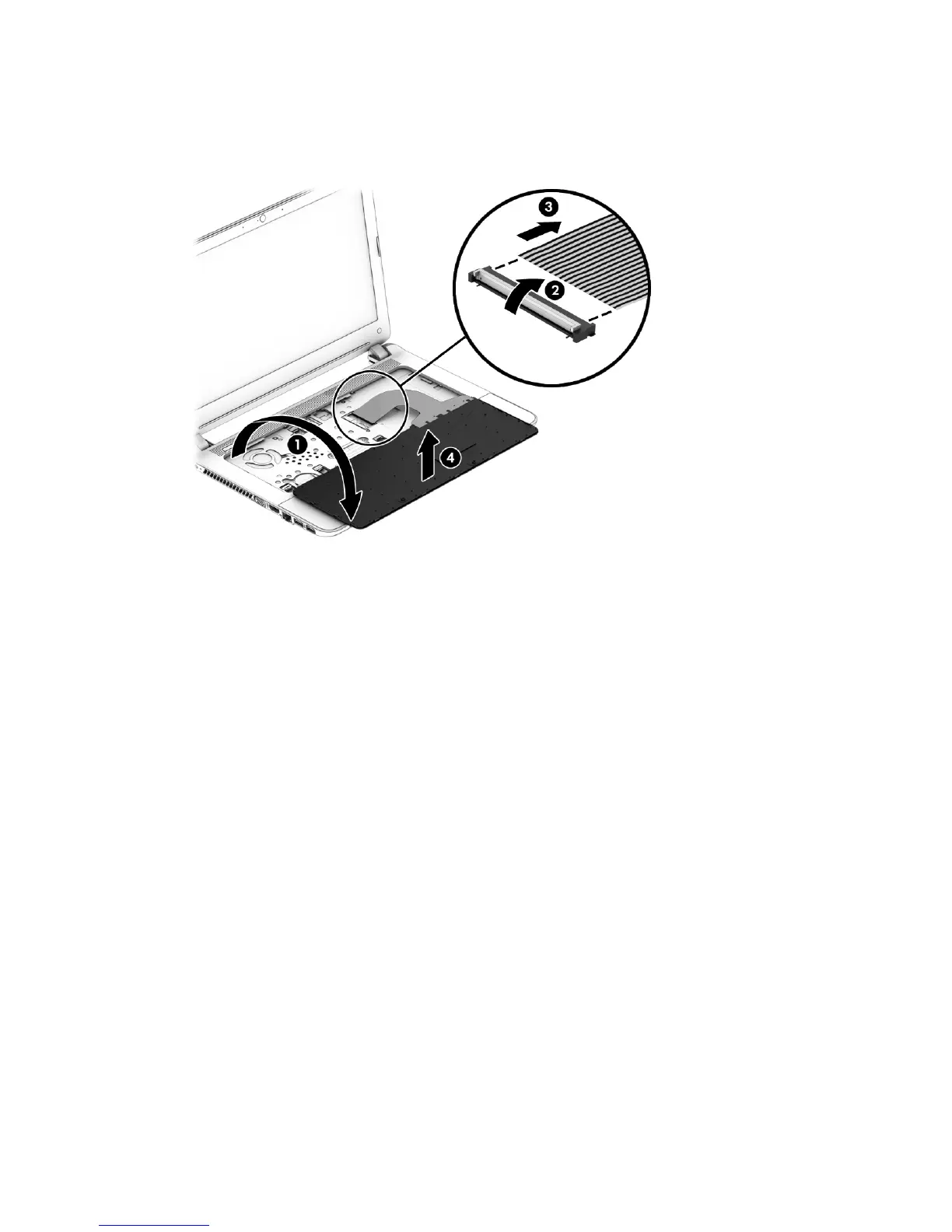

Release the ZIF connector (2) to which the keyboard cable is attached, and then disconnect the
keyboard cable (3) from the system board.
10. Remove the keyboard (4).
Reverse this procedure to install the keyboard.
54 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
