b.

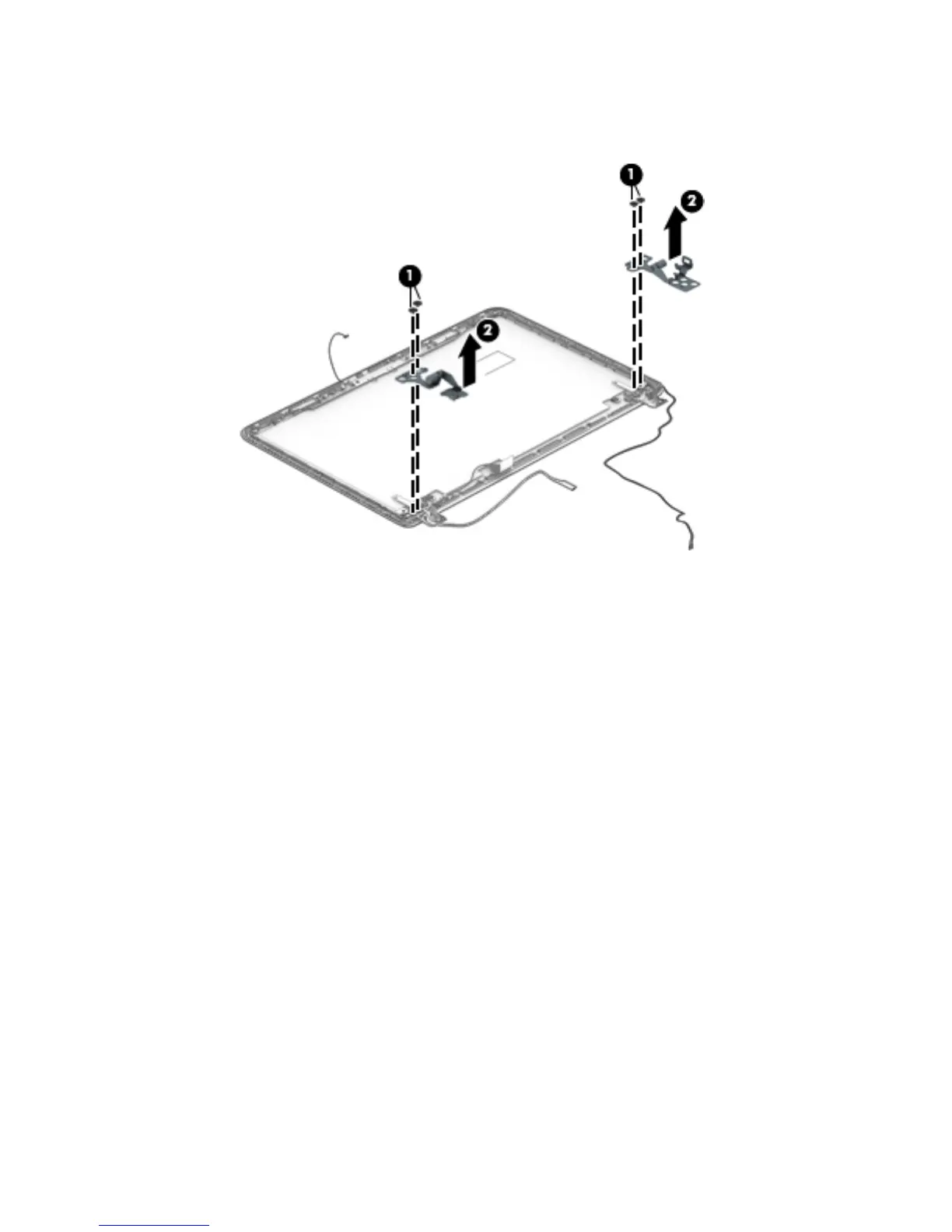

Remove the display hinges (2).
The display hinges are included in the Display Hinge Kit, spare part number 746666-001.
11. If it is necessary to replace the WLAN antenna cables and transceivers:
a. Detach the WLAN antenna transceivers (1) from the display enclosure. (The WLAN antenna
transceivers are attached to the display enclosure with double-sided adhesive.)
b. Release the WLAN antenna cables from the clips (2) and routing channel built into the top
edge and right side of the display enclosure.
Component replacement procedures
87

HP 340 G1 Specifications

General

RAM	4GB DDR3L
Storage	500GB HDD
Display	14-inch, 1366 x 768 pixels
Graphics	Intel HD Graphics 4400
Operating System	Windows 8.1
Battery	4-cell, 41 Wh Li-ion
Wireless	802.11b/g/n
Ports	2 x USB 3.0, 1 x USB 2.0, HDMI, VGA, RJ-45, headphone/microphone combo jack
Optical Drive	DVD±RW
Processor	Intel Celeron, Pentium, Core i3 or Core i5 (4th generation)
