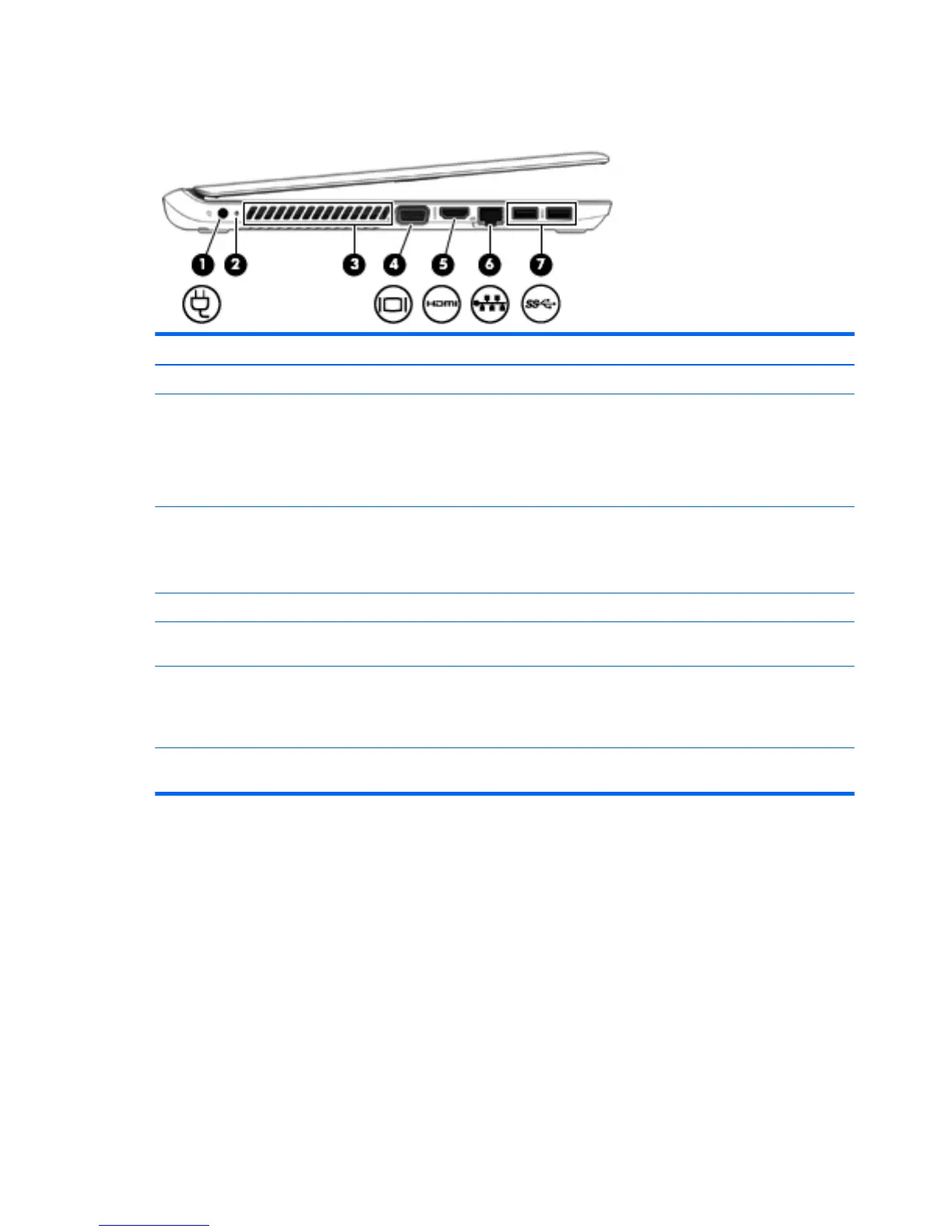

Left side
Item Component Description
(1) Power connector Connects an AC adapter.
(2) AC adapter/Battery light
●
White: The AC adapter is connected to external power and the battery is fully
charged.
●
Amber: The AC adapter is connected to external power and the battery
is charging.
●
Off: The AC adapter is not connected to external power.
(3) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal components and
prevent overheating. It is normal for the internal fan to cycle on and off during routine
operation.
(4) External monitor port Connects an external VGA monitor or projector.
(5) HDMI port Connects an optional video or audio device, such as a high-definition television, any
compatible digital or audio component, or a high-speed HDMI device.
(6) RJ-45 (network) jack Connects a network cable.
●
Green (left): The network is connected.
●
Amber (right): The network is showing activity.
(7) USB 3.0 ports Each USB 3.0 port connects an optional USB device, such as a keyboard, mouse,
external drive, printer, scanner or USB hub.
10 Chapter 2 External component identification
