HP 340 G2 - Page 58

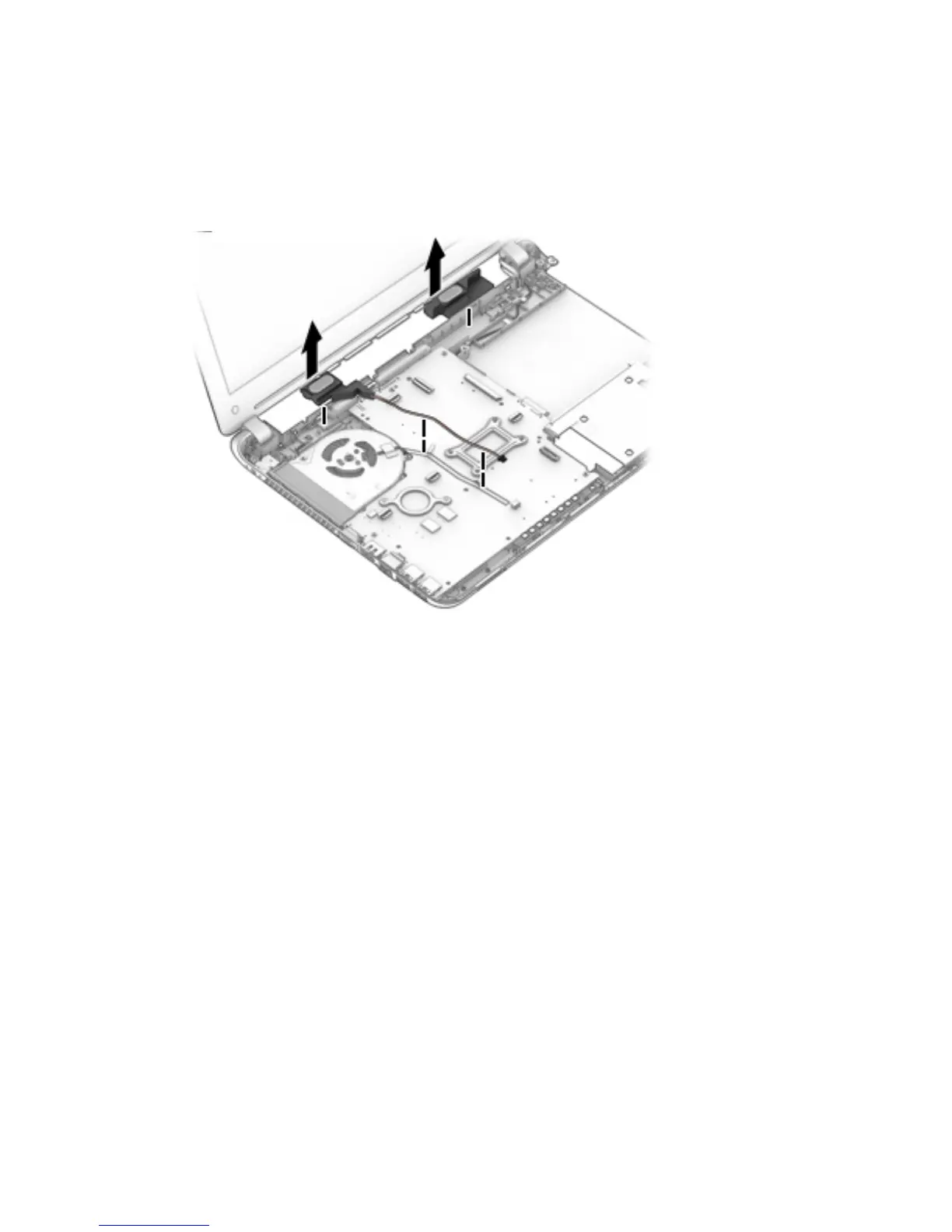

Remove the speakers:
1. Disconnect the speaker cable (1) from the system board.
2. Detach the speaker cable (2) from the system board. (The speaker cable is attached to the system
board with tape.)
3. Remove the speakers (3).
Reverse this procedure to install the speakers.
50 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
