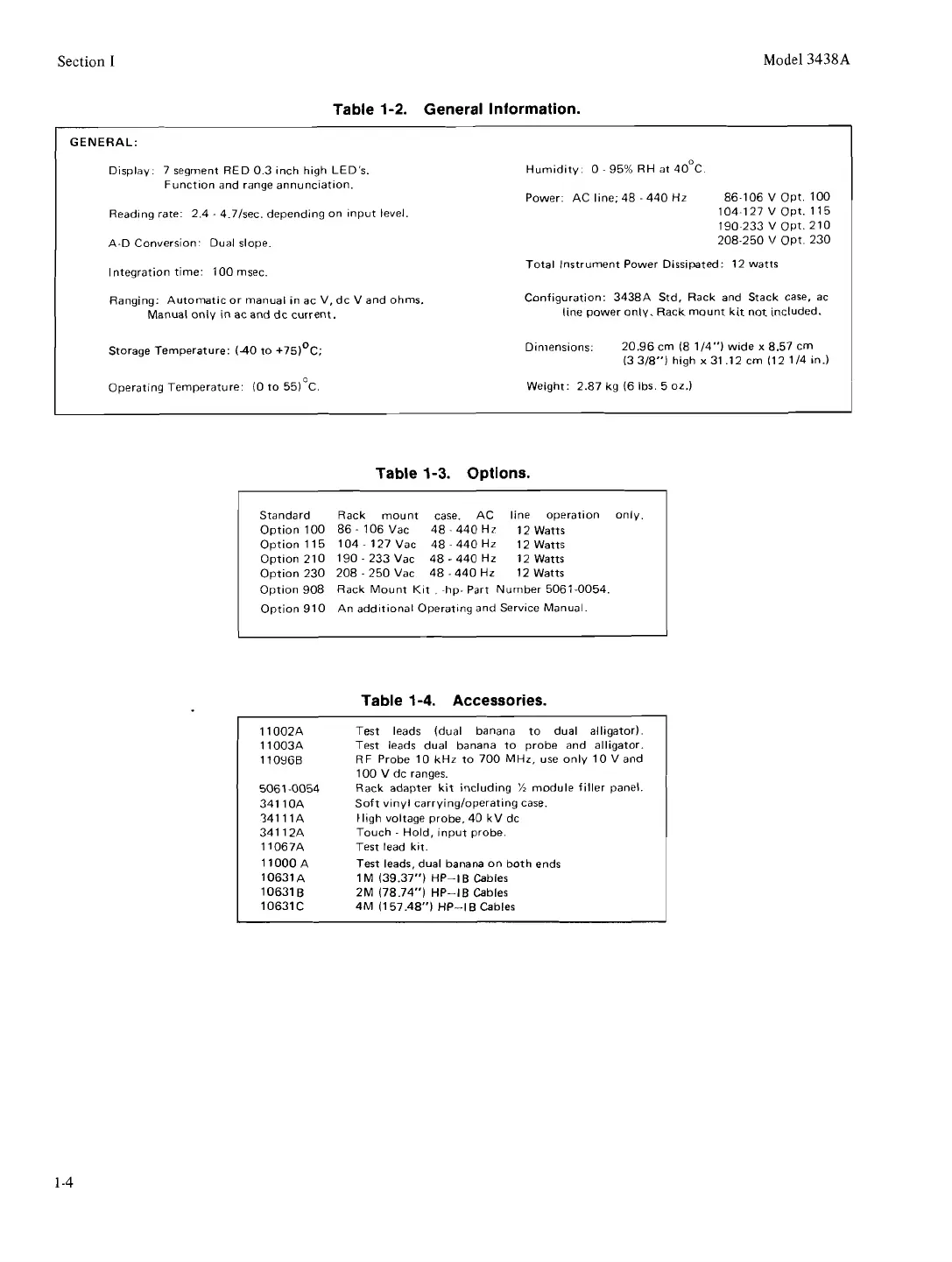

Section
I
Table
1-2.
General Information.
Model
3438A
GENERAL:
Display: 7 segment RED 0.3 inch high LED'S.
Function and range annunciation.
Read~ng rate: 2.4
-
4.71sec. depending on Input level
A-D Conversion. Dual slope.
l ntegration time: 100 msec.
Ranging: Automatic or manual in ac V, dc V and ohms.
Manual
onlv in ac and dc current.
Storage Temperature:
(40 to +75j0c;
Humidity. 0
-
95% RH at 40'~
Power. AC line; 48
-
440 Hz
86-106 V Opt. 100
104-127 V Opt. 11 5
190~233 V Opt. 210
208-250
\I
Opt. 230
Total Instrument Power Dissipated: 12 watts
Configuration:
3438A Std, Rack and Stack case, ac
line power only. Rack mount kit not included.
Dimensions:
20.96
cm (8 114") w~de
x
8.57 cm
(3 318") high
x
31 .12 cm (12 114 in.)
Operating Temperature.
(0 to 55)'~.
Weight: 2.87 kg (6 Ibs. 5 02.)
Table
1-3.
Options.
Standard Rack mount case. AC line operation only.
Option
100 86
-
106 Vac 48
-
440 Hz 12 Watts
Option
11 5 104
-
127 Vac 48
-
440 Hz 12 Watts
Option 210 190
-
233 Vac 48
-
440 Hz 12 Watts
Option 230 208
-
250 Vac 48
-
440 Hz 12 Watts
Option 908
Rack Mount Kit
.
hp- Part Number 5061-0054.
Option 910
An
add~tional Operat~ng and Serv~ce Manual.
Table
1-4.
Accessories.
Test leads (dual banana to dual alligator).
Test leads dual banana to probe and alligator.
RF Probe
10 kHz to 700 MHz, use only 10 V and
100 V dc ranges.
Rack adapter kit
iqcluding
%
module filler panel.
Soft vinyl
carryingloperating case.
tllgh voltage probe, 40 kV dc
Touch
-
Hold, Input probe.
Test lead
klt.
Test leads, dual banana on both ends
1
M (39.37") HP-I B Cables
2M (78.74") HP-IB Cables
4M
(1 57.48") HP-I B Cables
