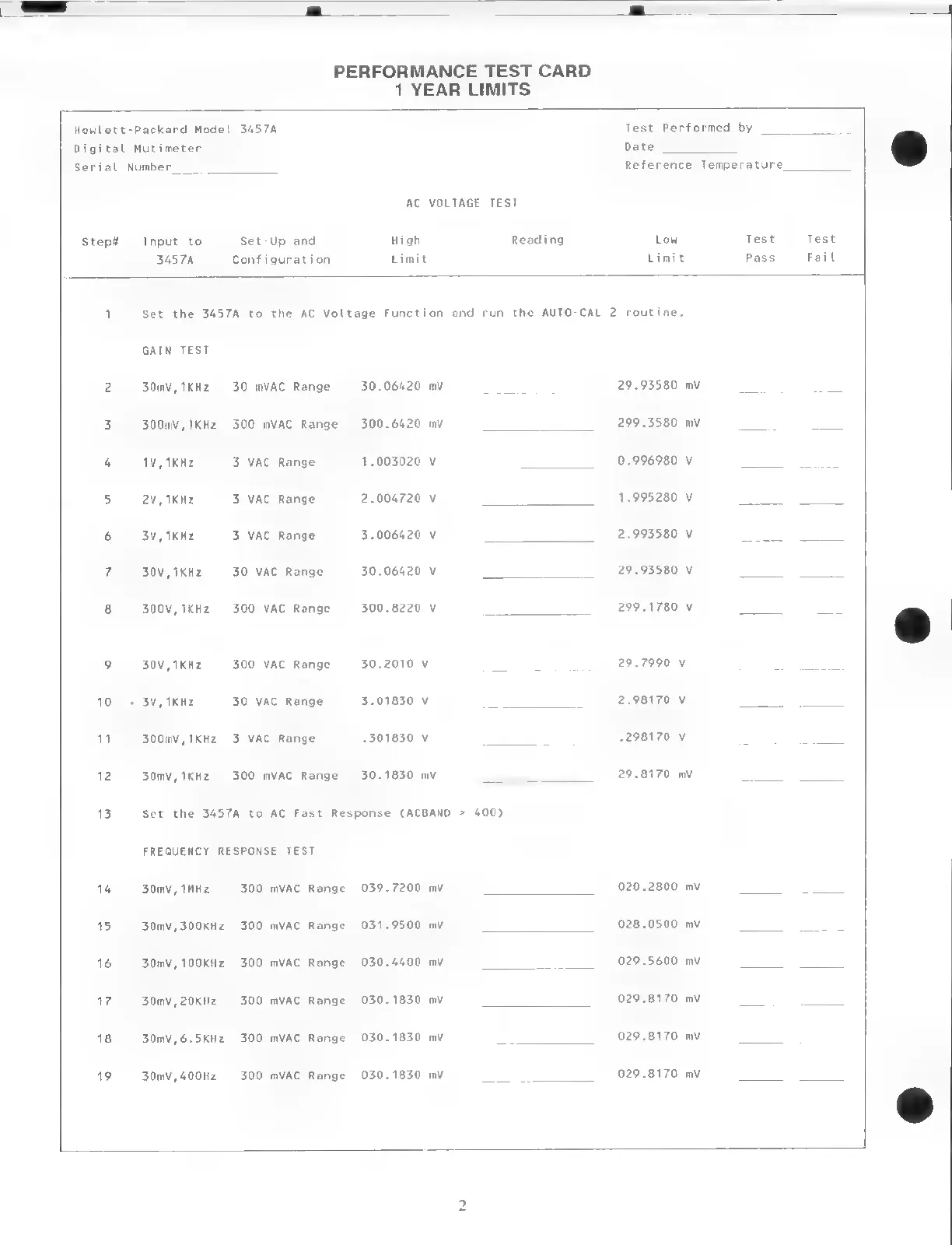

PERFORMANCE TEST CARD
1 YEAR LIMITS
Hewlett-Packard Model 3457A Test Performed by -
Digital Mutimeter Date
Serial Number Reference Temperature
AC VOLTAGE TEST
Step# Input to Set-Up and High Reading Low Test Test
34578 Configuration Limit Limit Pass Fail
1 Set the 3457A to the AC Voltage Function and run the AUTO-CAL 2 routine.
GAIN TEST
2 30mV,1KHz 30 mVAC Range 3006420 mv a 29.93580 mv _ =*:
3 300mV,1KHz 300 mVAC Range 300.6420 mv 299.3580 mv = 5
4 WV, 1KHz 3 VAC Range 1.003020 V 0.996980 v a
5 2V, 1KHz 3 VAC Range 2.004720 v 1.995280 0 B+ |S = +
6 3V, 1KHz 3 VAC Range 3.006420 v 2.993580 0 ee
7 30V,1kKHz 30 VAC Range 30.06420 v 29. 93580 v ss,
8
300V,1KHz
300
VAC
Range
300.8220
V
299.1780
V
=
a
9 30V,1KHz 300 VAC Range 30.2010 V _ __ 29.7990 v oe
10 © 3V,1KHz 30 VAC Range 3.01830 V _ 2.98170 V ear
11 300mV, 1KHz 3 VAC Range -301830 V 2 = 298170 V a a
12 30mV,1KHz 300 mVAC Range 30.1830 nv 29.8170 mv ay
13 Set the 3457A to AC Fast Response (ACBAND > 400)
FREQUENCY RESPONSE TEST
14 30mV,1MHz 300 mVAC Range 039.7200 mv 020.2800 mv a
15 30mV,300KHz 300 mVAC Range 031.9500 mv 028.0500 mv os Gee
16
30mV,100KHz
300
mVAC
Range
030.4400
mv
Ss
029.5600
my
Se
17
30mV,20Kiz
300
mVAC
Range
030.1830
mv
029.8170
mv
a
a
ete
18 30mV,6.5KHz 300 mVAC Range 030.1830 mv _ 029.8170 mv os
19
30mV,400Hz
300
mVAC
Range
030.1830
mv
029.8170
mv
a a
nN
